DIN VDE 0620-1 Plugs And Socket-outlets Maximum And Minimum Withdrawal Force Tester
DIN VDE 0620-1 Plugs And Socket-outlets Maximum And Minimum Withdrawal Force Tester
DIN VDE 0620-1 Plugs And Socket-outlets Maximum And Minimum Withdrawal Force Tester
DIN VDE 0620-1 Plugs And Socket-outlets Maximum And Minimum Withdrawal Force Tester
DIN VDE 0620-1 Plugs And Socket-outlets Maximum And Minimum Withdrawal Force Tester
DIN VDE 0620-1 Plugs And Socket-outlets Maximum And Minimum Withdrawal Force Tester
DIN VDE 0620-1 Plugs And Socket-outlets Maximum And Minimum Withdrawal Force Tester
DIN VDE 0620-1 Plugs And Socket-outlets Maximum And Minimum Withdrawal Force Tester
Specifications
Model Number :
SN2118
Brand :
Sinuo
MOQ :
1 Set
Delivery Time :
30 days
Bolt spacing :
± 0.05mm
Payment Terms :
T/T
Applied clause :
Clause 22.1
Material :
SUS304 stainless steel
Applied table :
Table 16
Price :
Negotiable
Applied figure :
Figure 19
Certification :
Calibration Certificate(cost additional )
Supply Ability :
10 Sets / Month
Applied standard :
DIN VDE 0620-1:2021
Brand Name :
Sinuo
Warranty :
1 year
Packaging Details :
Plywood Case
Place of Origin :
China
Description
DIN VDE 0620-1 Plugs And Socket-outlets Maximum And Minimum Withdrawal Force Tester
Product Overview

DIN VDE 0620-1 Plugs And Socket-outlets Maximum And Minimum Withdrawal Force Tester designed for comprehensive testing of electrical accessories according to industry standards.

Compliance Standards

Complies with DIN VDE 0620-1:2021 "Plugs and socket-outlets for household and similar purposes - Part 1: General requirements on fixed socket-outlets" Clause 22.1, Figure 19 and Table 16.

Gauge Configuration
  • Gauge 2: Minimum pull-out force gauges 2A (200g), 2B (200g), 2C (300g)
  • Gauge 16a: 16A 2P maximum pull-out force gauge
  • Gauge 16b: 16A 3P+N maximum pull-out force gauge
  • Gauge 16c: 25A 3P+N+E maximum pull-out force gauge
  • Gauge 16d: 2.5A 2P maximum pull-out force gauge
  • Gauge 16e: Maximum pull-out force gauge for contact sleeve
Note: Gauge configuration can be customized according to customer requirements.
Product Images

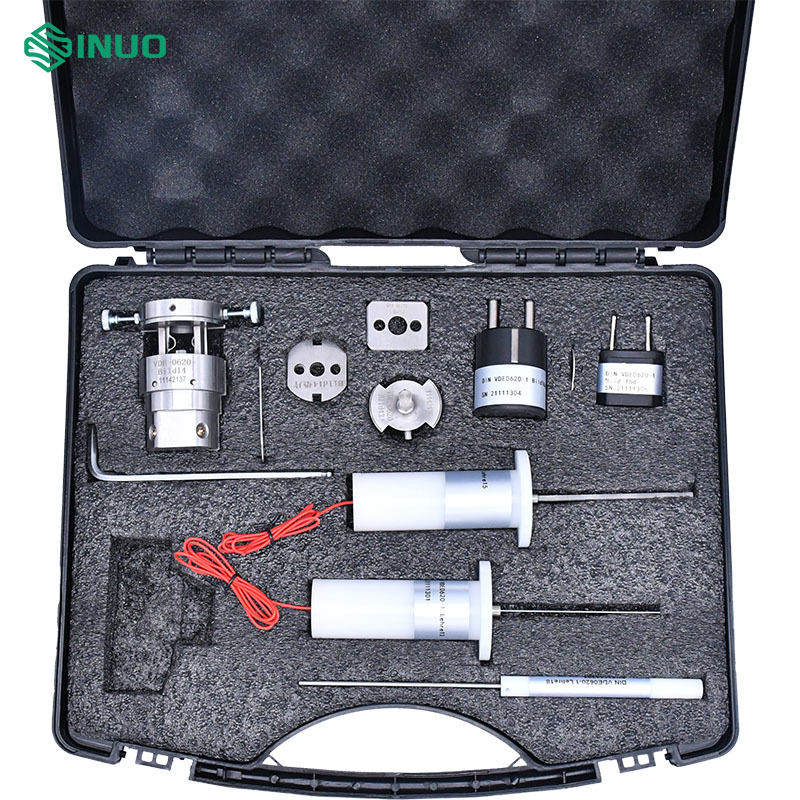

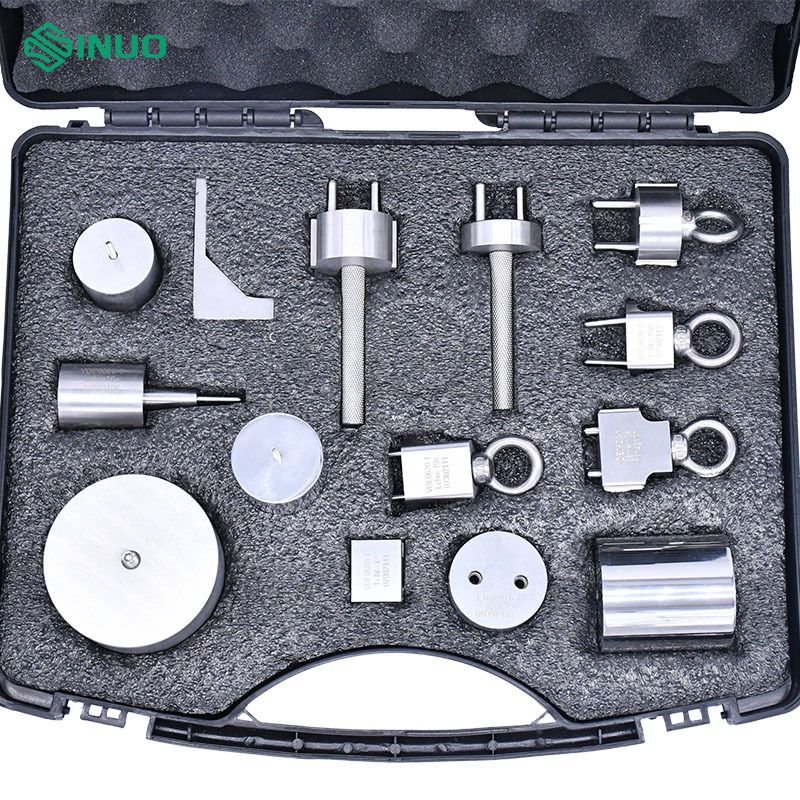

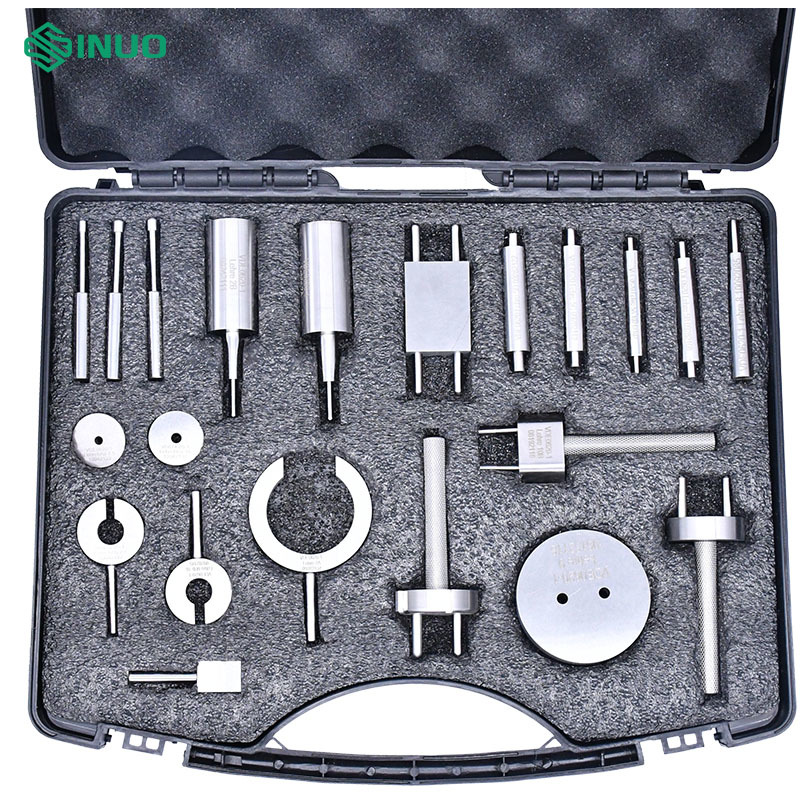

DIN VDE 0620-1 Plugs And Socket-outlets Maximum And Minimum Withdrawal Force Tester DIN VDE 0620-1 Plugs And Socket-outlets Maximum And Minimum Withdrawal Force Tester DIN VDE 0620-1 Plugs And Socket-outlets Maximum And Minimum Withdrawal Force Tester
Weight Configuration
  • 36N main weight x1
  • 45N main weight x1
  • 48.6N main weight x1
  • 63N main weight x1
  • 90N main weight x1
  • 4N auxiliary weight x1
  • 5N auxiliary weight x1
  • 5.4N auxiliary weight x1
  • 7N main weight x1
  • 10N main weight x1
Note: The weight of the main weight includes the weight of the corresponding test plug and hook.
Sample and Limitations

Designed for testing sockets for household or similar purposes.

Test Purpose

The structure of electrical accessories should allow for easy insertion and removal of the plug, and should prevent the plug from dislodging from the socket during normal use. This test verifies whether the maximum force required to remove the plug from the socket and the minimum force required to remove a single-pole pin from the socket assembly are within the range specified in the standard.

Test Principle

Maximum Socket Removal Force: Apply the maximum removal force specified in the standard (the total force of the main weight, supplementary weight, hook (clamping device), and test plug) to the test plug; the plug should dislodge from the socket.

Minimum Removal Force: Insert a gauge with the minimum removal force specified in the standard (i.e., the test pin conforming to this standard, the total mass of which should equal the value specified in the table) into each individual socket in the socket; the gauge should not dislodge from the socket within 30 seconds.

Equipment Structure and Features
  • Consists of a clamping device mounted under the top plate A, a main weight F, supplementary weight G, and a test plug C
  • Internal height of the frame: 550mm
  • Distance between the axes of the two columns: 150mm
Additional Features: Adjustable clamps are used to hold various products. A lifting ring replaces the D-clamp for easier operation. The main weight is directly balanced, eliminating the need for a support bracket.
Technical Specifications
Equipment Dimensions Approx. 350 × 350 × 600 mm (W × D × H)
Equipment Weight 25kg
Operating Temperature 5-35℃
Operating Humidity 30%-90%
