VDE0620 Plug and Socket Drop Tester for Mechanical Strength and Drop Resistance Test
VDE0620 Plug and Socket Drop Tester for Mechanical Strength and Drop Resistance Test
VDE0620 Plug and Socket Drop Tester for Mechanical Strength and Drop Resistance Test
VDE0620 Plug and Socket Drop Tester for Mechanical Strength and Drop Resistance Test
VDE0620 Plug and Socket Drop Tester for Mechanical Strength and Drop Resistance Test
VDE0620 Plug and Socket Drop Tester for Mechanical Strength and Drop Resistance Test
VDE0620 Plug and Socket Drop Tester for Mechanical Strength and Drop Resistance Test
VDE0620 Plug and Socket Drop Tester for Mechanical Strength and Drop Resistance Test
Specifications
Model Number :
SN2123
Test times :
0~9999
Price :
Customized
Test Station :
Single station
Certification :
Calibration Certificate (Cost Additional)
MOQ :
1
Delivery Time :
30 Days
Drop Height :
500mm
Payment Terms :
T/T
Fall Speed :
10 times per min
Drive Mode :
Motor
Control Method :
Button control
Supply Ability :
20 sets per month
Rotation Speed :
5 round per min
Brand Name :
Sinuo
Material :
Steel plate
Packaging Details :
Plywood Case
Place of Origin :
China
Description
VDE0620 Plug and Socket Drop Tester for Mechanical Strength and Drop Resistance Test
The Sinuo Plug and Socket Drop Tester is a professional laboratory testing device designed to evaluate the drop resistance and mechanical durability of plugs, socket-outlets, surface mounting boxes, screw glands, gland covers, switches, and similar electrical accessories.
The equipment is manufactured in accordance with international standards including VDE0620, IEC 60335-1 Annex B, IEC 60884-1, IEC 60068-2-32, IEC 60065:2014 Clause 12.3, EN 50075, UL 60730, and BS 1363.1, ensuring reliable and repeatable test results for product certification, quality control, and R&D verification.
Technical Specifications
Parameter Specification
Rotate speed 5 rpm
Drop rate 10 times per minute
Material Sideways 1.5mm high-quality steel plate, upper and lower for 3mm steel pad in the 10-19mm wood and oblique part slide surface is plastic laminate, with triangle rubber pad
Test times 0~9999
Drop height 500mm
Barrel number Single
Application Plug and socket and similar electrical accessories
Standards IEC60335-1, IEC60884-1, IEC60068-2-32, EN50075
Power supply AC220V, 50Hz
Key Features
The tester uses a single rotating barrel structure with a fixed 500 mm drop height, simulating repeated accidental drops during transportation, installation, and daily use. The rotation speed is 5 rpm, and the drop rate is 10 times per minute, providing stable and standardized impact conditions.

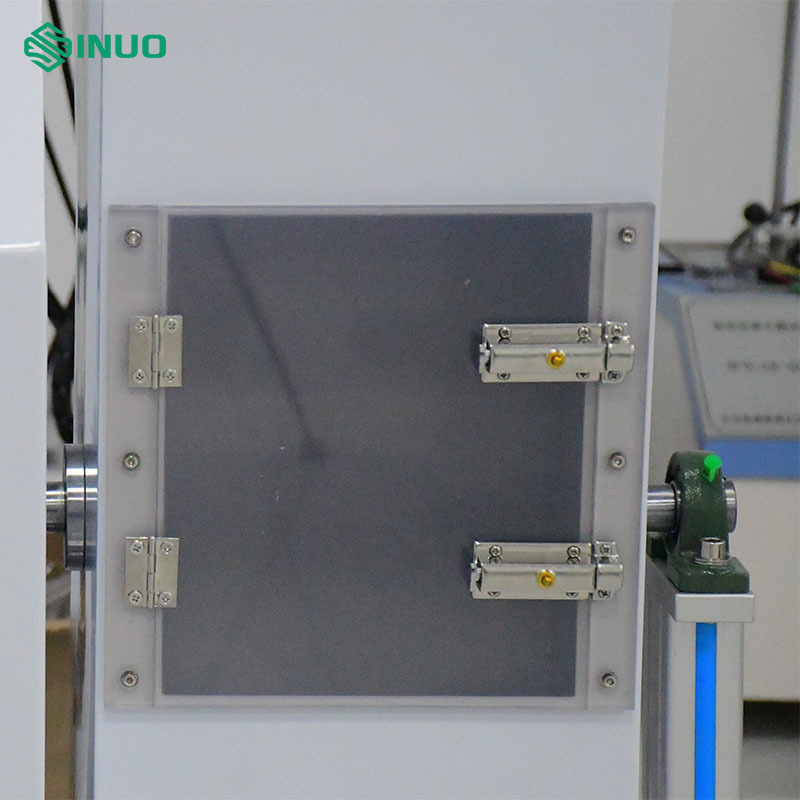

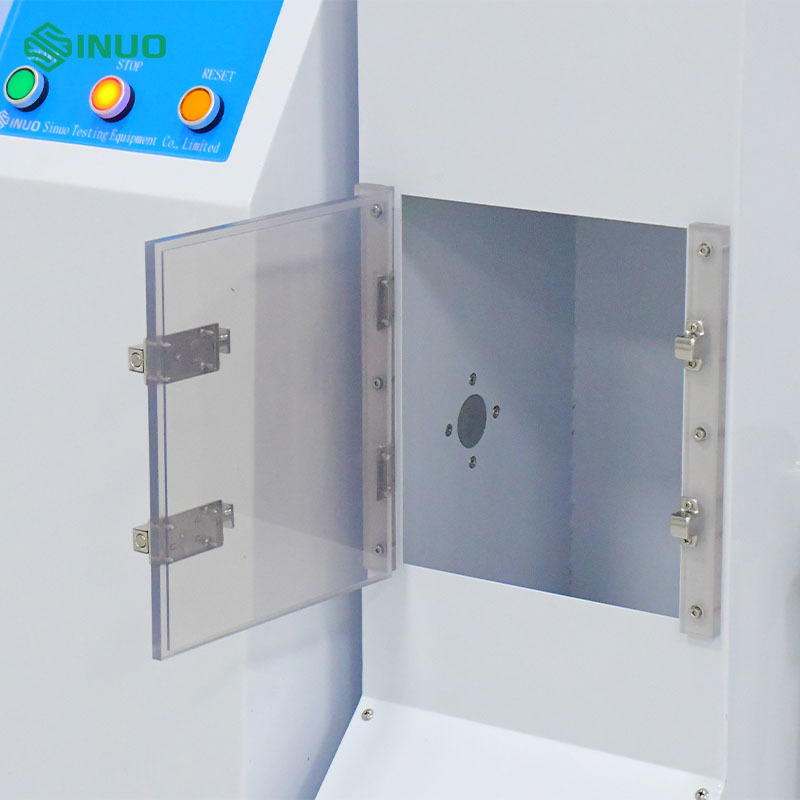

The interior structure is made of high-quality steel plates and wooden impact surfaces with plastic laminate, while the oblique sliding surface is equipped with triangle rubber pads to ensure compliance with the relevant impact requirements.

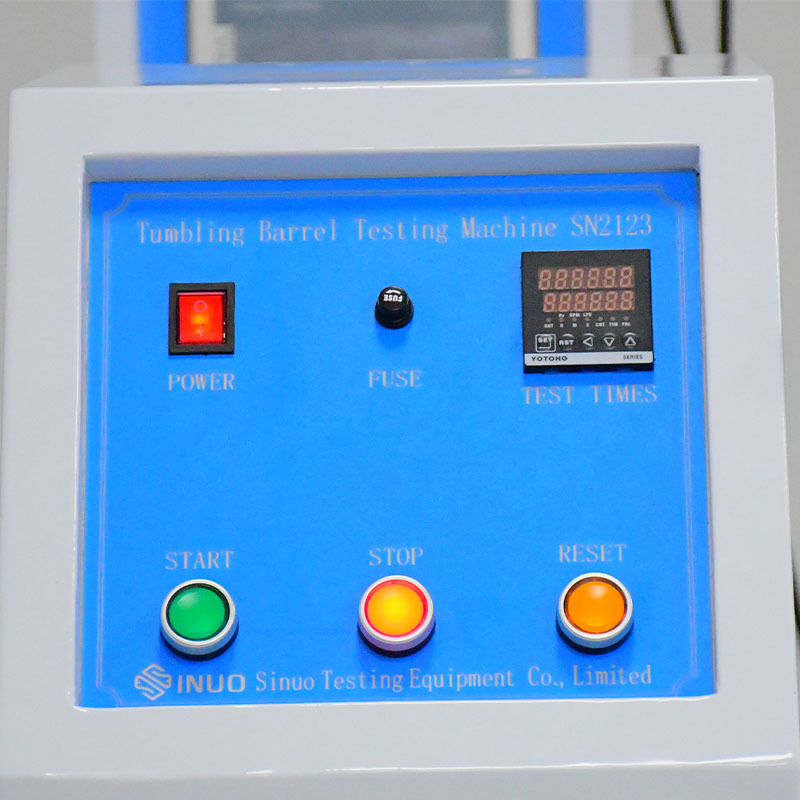

Users can preset the test cycles from 0 to 9999, and the machine will stop automatically when the programmed number is completed, improving testing efficiency and reducing operator intervention.
VDE0620 Plug and Socket Drop Tester for Mechanical Strength and Drop Resistance Test
Applications
This drop tester is widely used by:
  • Plug and socket manufacturers
  • Electrical accessory factories
  • Certification laboratories
  • Third-party testing organizations
  • Quality inspection departments
  • Research and development centers
Importance of Drop Testing
Electrical accessories are frequently exposed to mechanical stress. During shipping, products may fall from packaging. During installation, they may be dropped by workers. During consumer use, portable plugs and adapters may repeatedly hit hard surfaces.
These impacts can cause:
  • Cracks in plastic housings
  • Damage to internal terminals
  • Loosening of screws
  • Deformation of protective parts
  • Reduced insulation performance
  • Failure of safety requirements
The purpose of the test is not to destroy the product immediately, but to evaluate whether the accessory can maintain its safety, structural integrity, and electrical performance after repeated impacts.
Standardized Testing Conditions
One of the most important aspects of compliance testing is repeatability. The Sinuo Drop Tester provides a controlled environment where every specimen experiences the same:
  • Drop height
  • Impact surface
  • Rotation speed
  • Drop frequency
  • Number of cycles
This ensures that test results from different batches, laboratories, or production periods can be compared consistently.
Automatic Cycle Control
The tester supports 0 to 9999 programmable test cycles. After the preset number is reached, the machine stops automatically. This feature is especially useful for:
  • Production quality inspection
  • Type testing
  • Endurance verification
  • Comparative testing
  • Batch consistency evaluation
Automatic stopping reduces operator workload and prevents over-testing.
VDE0620 Plug and Socket Drop Tester for Mechanical Strength and Drop Resistance Test VDE0620 Plug and Socket Drop Tester for Mechanical Strength and Drop Resistance Test
Post-Test Evaluation
After the drop test, engineers can inspect:
  • Cracks or fractures
  • Permanent deformation
  • Loosened components
  • Terminal displacement
  • Insulation damage
  • Functional operation
  • Compliance with the relevant standard criteria
These evaluations help determine whether the product is ready for certification, mass production, or design improvement.
Advantages
Compared with manual drop testing, this automated system offers:
  • Higher repeatability
  • Better accuracy
  • Reduced human error
  • Continuous operation
  • Improved safety
  • Easier data recording
  • Standard-compliant testing conditions
For manufacturers seeking international certification, repeatable mechanical testing is essential for passing third-party laboratory evaluations.
Global Compliance Support
Whether your products are intended for Europe, the Middle East, Asia, Africa, or other international markets, compliance with IEC and EN standards is often a key requirement.
The Sinuo Plug and Socket Drop Tester is designed to support laboratories working with:
  • IEC standards
  • EN standards
  • UL-related evaluations
  • BS standards
  • Internal quality standards
  • Customer-specific test procedures
