Specifications
Model Number :
SN2210-32T
Thermocouple Type :
K Type
MOQ :
1
Delivery Time :
5 Days
Measuring Surface :
Φ5 × 0.5 mm
Inside Polycarbonate Tube :
Φ3mm
Price :
Negotiable
Contact Force :
4 ± 0.5 N
Certification :
Calibration Certificate (Cost Additional)
Tube Inner Diameter :
Φ3 mm
Payment Terms :
T/T
Baffle Diameter :
Φ50 mm
Thermometer Model :
UT320A
Supply Ability :
30 Sets Per Month
Baffle Thickness :
Φ5 mm
Thermometer Range :
-50°C to 1000°C
Brand Name :
Sinuo
Maximum Measuring Temperature :
80°C
Packaging Details :
Carton
Outside Polycarbonate Tube :
Φ5mm
Place of Origin :
China
Tube Outer Diameter :
Φ5 mm
Description
IEC 60335-2-6 Figure 104 Surface Temperature Probe with Real-Time Temperature Display
Product Overview

How can manufacturers accurately measure surface temperature during electrical safety testing? This Surface Temperature Probe Kit is designed according to IEC 60335-2-6:2002 Clause 11.101 Figure 104 and is suitable for measuring accessible surface temperatures during safety testing of household and similar electrical appliances.

The probe provides reliable thermal contact with the test surface, helping laboratories and manufacturers perform accurate and repeatable temperature measurements in accordance with international testing requirements.

Technical Specifications
Measuring surface Φ5*0.5mm; Tinned copper disc
Polycarbonate tube Inside diameter: Φ3mm; outside diameter: Φ5mm
Thermocouple Φ0.3mm K type
Contact force 4±0.5 N
Baffle diameter Φ50mm
Baffle thickness Φ5mm
Length of thermocouple >1 meter
Max. temperature measuring 80℃
(Limited by the material of polycarbonate tube)

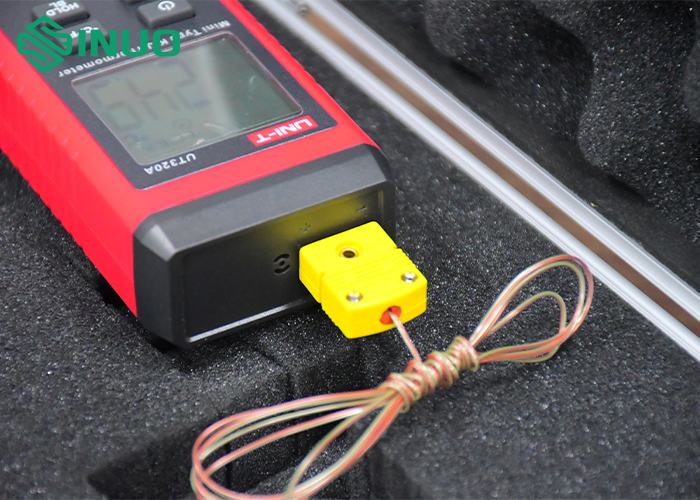

Accessory Thermometer, model UT320A
(Temperature measuring range: -50°C to 1000°C)
Product Features
  • Surface temperature probe installation
  • Real-time temperature measurement
  • Live temperature display
  • Fast and convenient operation
  • Stable and accurate temperature recording
  • IEC 60335-2-6 compliant testing setup
Key Advantages
  • Complies with IEC 60335-2-6 Clause 11.101 Figure 104
  • Integrated surface temperature probe and temperature recorder
  • Real-time temperature display
  • No complicated data acquisition setup
  • Easy operation
  • High measurement accuracy
  • Stable and repeatable performance
  • Portable and laboratory-friendly design
Real-Time Monitoring Benefits

One of the biggest advantages of this testing kit is its real-time visual temperature display. Instead of waiting until the test is finished, operators can immediately monitor temperature changes throughout the entire testing process.

  • Instant temperature reading
  • Easy operation
  • Improved testing efficiency
  • Better observation of temperature rise
  • Reduced operator workload
  • Reliable data recording
Applications
  • Household cooking appliances
  • Electric ovens
  • Induction cookers
  • Electric hotplates
  • Built-in cooking appliances
  • Kitchen appliances
  • Household electrical appliances
  • Laboratory testing
  • Certification laboratories
  • Appliance manufacturers
  • Product safety evaluation
