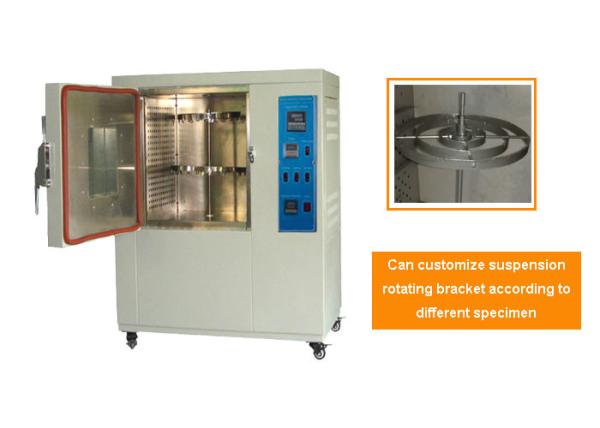

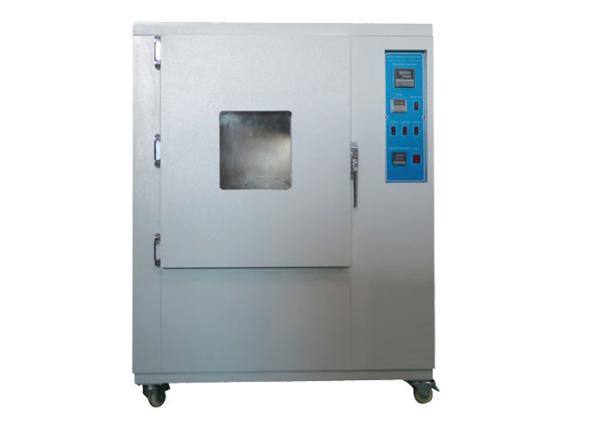

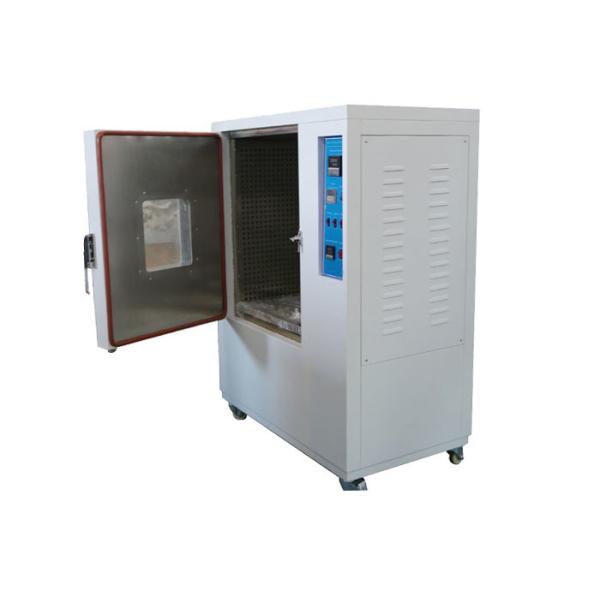

IEC 60065 Clause 12.1.6 Natural Circulation Air Ageing Heating Chamber 240L
IEC 60065 Clause 12.1.6 Natural Circulation Air Ageing Heating Chamber 240L
IEC 60065 Clause 12.1.6 Natural Circulation Air Ageing Heating Chamber 240L
IEC 60065 Clause 12.1.6 Natural Circulation Air Ageing Heating Chamber 240L
IEC 60065 Clause 12.1.6 Natural Circulation Air Ageing Heating Chamber 240L
IEC 60065 Clause 12.1.6 Natural Circulation Air Ageing Heating Chamber 240L
IEC 60065 Clause 12.1.6 Natural Circulation Air Ageing Heating Chamber 240L
IEC 60065 Clause 12.1.6 Natural Circulation Air Ageing Heating Chamber 240L
IEC 60065 Clause 12.1.6 Natural Circulation Air Ageing Heating Chamber 240L
IEC 60065 Clause 12.1.6 Natural Circulation Air Ageing Heating Chamber 240L
Specifications
Brand Name :
Sinuo
Model Number :
SN8811
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Standard Exporting Plywood Case
Applied standard :
IEC 60065
Applied clause :
12.1.6
Inner chamber size :
500*600*800mm (L*W*H)
Inner chamber material :
SUS#304 stainless steel
Temperature range :
RT ~300℃
Temperature resolution :
0.1 ° C
Description

IEC 60065 Clause 12.1.6 Natural Circulation Air Ageing Heating Chamber 240L

Product Information:

It is used to perform thermal aging test to polymer materials (plastics, plastics and electrical insulating materials such as: wire and cable sheathing, heat shrinkable tube, rubber test or PVC materials, and the insulating components, or use for drying, baking, heat treatment and etc.

Features:

1. Adopts to microcomputer electronic digital control method, precise, accurate, stable and reliable.

2. The chamber insulation package is made of silicon, high temperature resistant, never aging; and an observation window is attached to facilitate the observation of the sample during the experiment.

3. P.I.D. control system, double over-temperature protection, safe and reliable.

4. The temperature setting is simple, and the operation is more convenient.

Attachment tray, can be adjusted freely.

Technical Parameters:

Applied standard IEC 60065
Applied clause 12.1.6
The range of temperature RT ~300℃
Inner chamber size 500*600*800mm (L*W*H)
Outer chamber size 1060*700*1445mm
The test shelves 2 trays
Timer 0~9999 H/ M / S
Temperature resolution 0.1 ° C
Temperature fluctuation ±1 °C
Distribution error ±2.5 °C
Air circulation Natural convection
Natural ventilation 8~20 times/H
Rotation speed of the test sample 5~10r.p.m
Observation window Square window
Inner chamber material It is made of SUS#304 stainless steel
Outer chamber material Made of electrostatic spray paint
Net weight Approx. 120Kg
Power supply AC 220V±10%, 50Hz
