Specifications
Brand Name :
Sinuo
Model Number :
SN2316A
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
20 Days
Packaging Details :
Plywood
Power Supply :
AC220V, 50Hz
Test Station :
6 stations
Control Method :
PLC control
Drive Mode :
Electric
Number of Tests :
0-999999 times
Rotation Angle :
0°, ±90° or 360°
Spinning Speed :
0-360°/s
Clamp Length :
203mm
Description

UL817-2021 Power Cord Abrupt Pull Test Apparatus 6 Stations PLC Control


Standars For Power Cord Abrupt Pull Tester:

The test apparatus is designed and manufactured according to the requirements of UL817-2021 "Standard for safety: Cord Sets and Power-Supply Cords" 11.10.2, 11.10.3, 12.5, 18.2.4 and Figure 12.3 and Figure 12.4 and Figure 18.1.


Technical Parameters For Power Cord Abrupt Pull Tester:

Power supply Match client's local power supply requirements
Use environment Working temperature 0-40℃; Humidity 30%-90%
Equipment size About 1000×600×1700 (mm) W×H×D
Equipment weight 220kg
Test station 6 stations, synchronous
Electrical control method Mitsubishi PLC control, 7-inch touch screen operation
Drive mode Electric
Specimen clamping method

Special plug fixture, switchable installation
Weight suspension

1. The weight hook is directly hung on the crimping fixture (Figure 12.3); 2. The weight hook is directly hung on the sample cord (Figure 18.1)

UL817-2021 Power Cord Abrupt Pull Test Apparatus 6 Stations PLC Control

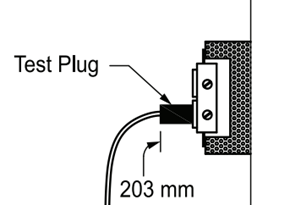

Clamp length 203mm
Sample tilt angle

0° and 45°

UL817-2021 Power Cord Abrupt Pull Test Apparatus 6 Stations PLC Control
Number of tests 0-999999 times, can be preset
Rotation angle 0°, ±90° or 360°
Spinning speed 0-360°/s
Impact height 178mm, 254mm, 610mm, can be set
Load weight

1. 1.1kg (2.5lb), the weight of the hook, tray and clamping fixture is 907±85g (2 lb±3)

2. 1.4kg (3lb)

3. 15 lbf (67N)

4. 4.5kg (10b)
Load 0-12V,40A
Power on time 0-9999s can be preset, the default is 120s (2min)
Impact method Solenoid release
Test principle For Power Cord Abrupt Pull Tester:
PLC control is adopted, and the motor is driven to realize the angle rotation of the sample to achieve the function of angle position change. The electromagnet absorbs the weight and releases it from the height required by the standard to realize the sudden pull impact test.
UL817-2021 Power Cord Abrupt Pull Test Apparatus 6 Stations PLC Control
UL817-2021 Power Cord Abrupt Pull Test Apparatus 6 Stations PLC Control
