IEC 60335 Clause 22.11 50N Built - In Force Test Finger Nail
IEC 60335 Clause 22.11 50N Built - In Force Test Finger Nail
IEC 60335 Clause 22.11 50N Built - In Force Test Finger Nail
IEC 60335 Clause 22.11 50N Built - In Force Test Finger Nail
IEC 60335 Clause 22.11 50N Built - In Force Test Finger Nail
IEC 60335 Clause 22.11 50N Built - In Force Test Finger Nail
IEC 60335 Clause 22.11 50N Built - In Force Test Finger Nail
IEC 60335 Clause 22.11 50N Built - In Force Test Finger Nail
Specifications
Brand Name :
Sinuo
Model Number :
SN2210-22
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
L/C, , T/T, Western Union, MoneyGram
Supply Ability :
50 sets per month
Delivery Time :
15 Days
Packaging Details :
Aluminium Box
Applied Standard :
IEC 60335-1
Applied Clause :
Clause 22.11
Probe Material :
Stainless steel
Handle Material :
Nylon
Applied Force :
0~50N
Force Resolution :
50N
Description

IEC 60335 Clause 22.11 50N Built - In Force Test Finger Nail

Product Overview:

The test fingernail confirms to the standard of IEC60335-1 clause 21.2, clause 22.11, Figure 7, etc. It is used to test non-detachable parts that protect against access to live parts, moisture or contact with moving parts shall be fixed in a reliable manner and withstand the mechanical stress occurring during normal use. Snap-in devices used for fixing such parts shall have an obvious locked position. It is dispensable for the electrical testing departments.

Technical Parameters:

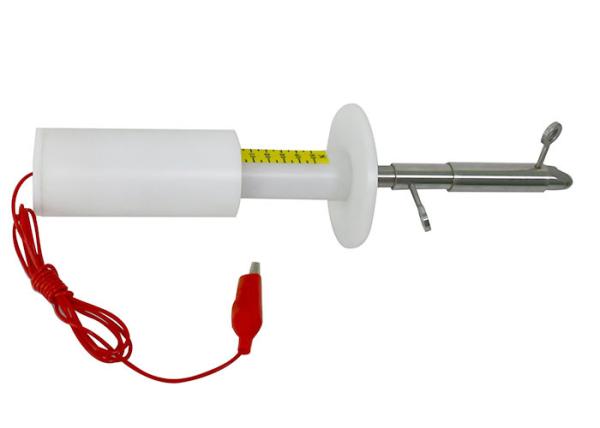

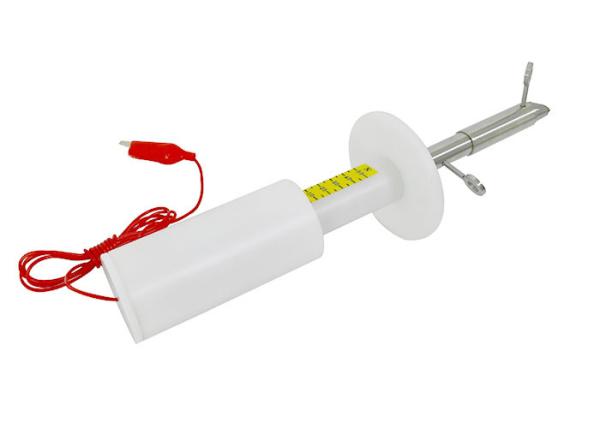

The test fingernail consists of fingernail, finger body, stop plate, thrust block and pull-tab, thrust block can offer thrust of 0~50 N (resolution: 5N). The dimensions are coincided with that shown in following standard figure.

Test Procedures and Operation

Please refer to the relevant standards.

Take IEC60335-1 clause 21.2 as an example:

The test fingernail of Figure 7 is then applied to the scratched surface with a force of approximately 10 N.

The force is applied by pushing the top surface of the handle to the specific force scale line.

For verifying whether LIVE PARTS touched, the probe is equipped with an alligator clip, recommended to work with our anti-shock probe experiment device or a 40~50V voltage indicator.
