IEC60335-2-24 φ75mm Sphere Test Probe with Nylon Handle
IEC60335-2-24 φ75mm Sphere Test Probe with Nylon Handle
IEC60335-2-24 φ75mm Sphere Test Probe with Nylon Handle
IEC60335-2-24 φ75mm Sphere Test Probe with Nylon Handle
IEC60335-2-24 φ75mm Sphere Test Probe with Nylon Handle
IEC60335-2-24 φ75mm Sphere Test Probe with Nylon Handle
IEC60335-2-24 φ75mm Sphere Test Probe with Nylon Handle
IEC60335-2-24 φ75mm Sphere Test Probe with Nylon Handle
Specifications
Brand Name :
Sinuo
Model Number :
SN2210-26
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
L/C, , T/T, Western Union, MoneyGram
Supply Ability :
10 set per month
Delivery Time :
3 Days
Packaging Details :
Cartob Box
Spheroid Diameter :
Φ75±0.5 mm
Applied Standard :
IEC60335-2-24
Applied Clause :
Clause 21.102
Test Sample :
Lamps of household appliances
Sphere Material :
Rigid metal
Handle Material :
Nylon
Handle Diameter :
Φ10 mm
Handle length :
100 mm
Description

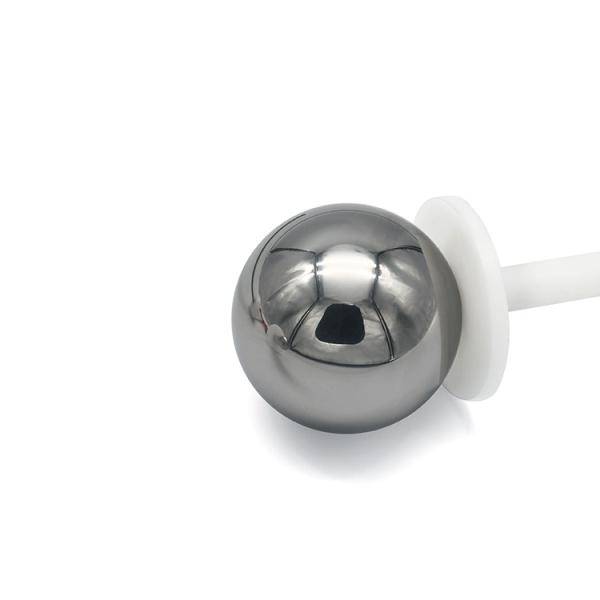

IEC60335-2-24 φ75mm Sphere Test Probe

Standards & Clauses:

The φ75mm test rod meets the standard requirements of IEC 60335-2-24 clause 21.102.

Application

It is used for verifying the lamps of household appliances is protected against mechanical shocks.

Test sample

Lamps of household appliances.

Technical Parameters:

Sphere diameter (mm) Φ75±0.5 mm
Guard diameter (mm) Ф45
Handle diameter (mm) Ф10
Guard thickness (mm) 4
Handle length (mm) 100
Sphere material Rigid metal
Guard and handle material Nylon

Test Procedures and Operation:

Please refer to the relevant standards.

Take IEC 60335-2-24 clause 21.102 as an example:

Compliance is checked by applying a 75 mm ± 0.5 mm diameter sphere without appreciable force in an attempt to touch the lamp with the lamp cover in place.

The sphere shall not touch the lamp.
