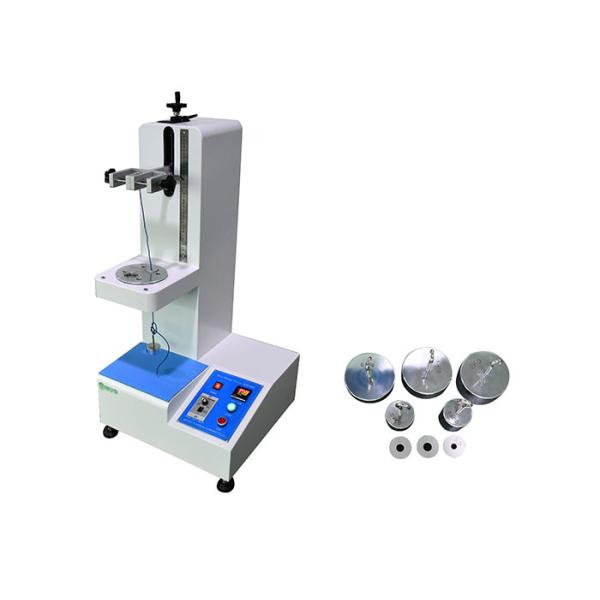

IEC 60884-1 UL 498 Cord Conductor Damage Degree Tester New Version
IEC 60884-1 UL 498 Cord Conductor Damage Degree Tester New Version
IEC 60884-1 UL 498 Cord Conductor Damage Degree Tester New Version
IEC 60884-1 UL 498 Cord Conductor Damage Degree Tester New Version
IEC 60884-1 UL 498 Cord Conductor Damage Degree Tester New Version
IEC 60884-1 UL 498 Cord Conductor Damage Degree Tester New Version
IEC 60884-1 UL 498 Cord Conductor Damage Degree Tester New Version
IEC 60884-1 UL 498 Cord Conductor Damage Degree Tester New Version
Specifications
Brand Name :
Sinuo
Model Number :
SN2111(New)
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20 Sets Per Month
Delivery Time :
20 days
Packaging Details :
Plywood
Applied Standard :
IEC 60884-1, UL498
Applied UUT :
Terminals, connectors
Test Station :
Single station
Rotation Speed :
10±2 r/min or 9±1 r/min
Gyration Diameter :
75mm/76mm
Test Cycles :
0～9999 cycles
Test Height :
260, 280, 300, 320mm
Bushing Hole Diameter :
6.5, 9.5, 13, 14.5mm
Description

IEC 60884-1 UL 498 Cord Conductor Damage Degree Tester New Version

Equipment overview:


Compliant with standards: IEC60884-1: 2013 Figure 11 and Table 9, UL 498. etc.
It is used to examine whether threaded terminals and non-threaded terminals can withstand the mechanical stress that occurs during normal use. It is mainly used to judge whether the design and structure of the screw clamp type terminal have reached the requirement of not excessively damaging the wire when clamping the wire.

Technical Characteristics:

Test station Single
Rotation speed 10±2 r/min or 9±1 r/min
Gyration Diameter 75mm/76mm
Test cycles 0～9999 cycles
Weights 0.3, 0.4, 0.7, 0.9, 1.4, 2kg
Test height 260, 280, 300, 320mm
Bushing hole diameter 6.5, 9.5, 13, 14.5mm
Applied standards IEC 60884-1, UL 498

Structure and function:


The new version adopt guide rail screw structure, overall is compact and practical. This apparatus integrates the 75 mm and 76mm gyration diameters, can process the related test according to IEC 60084-1 and UL 498 in one machine, which is economic.

When in use, the number of tests can be preset, and it will automatically stop when the set value is reached, accompanied by an audible alarm signal.
