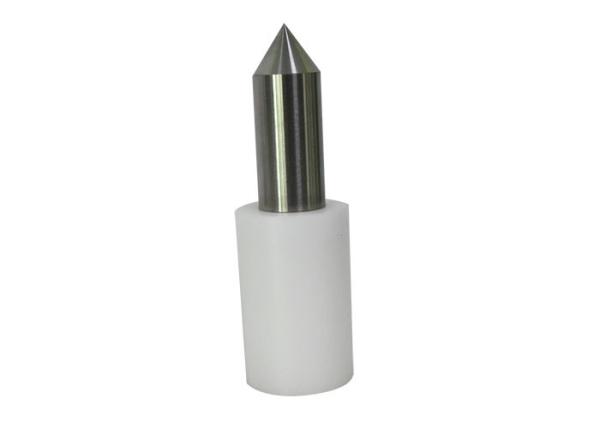

IEC 61032 Figure 16 Test Probe 41 For Testing Glowing Heating Elements
IEC 61032 Figure 16 Test Probe 41 For Testing Glowing Heating Elements
IEC 61032 Figure 16 Test Probe 41 For Testing Glowing Heating Elements
IEC 61032 Figure 16 Test Probe 41 For Testing Glowing Heating Elements
IEC 61032 Figure 16 Test Probe 41 For Testing Glowing Heating Elements
IEC 61032 Figure 16 Test Probe 41 For Testing Glowing Heating Elements
IEC 61032 Figure 16 Test Probe 41 For Testing Glowing Heating Elements
IEC 61032 Figure 16 Test Probe 41 For Testing Glowing Heating Elements
Specifications
Brand Name :
Sinuo
Model Number :
SN2210-16
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
3 Days
Packaging Details :
Aluminium Box
Applied Standard :
IEC 61032
Applied Figure :
Figure 16
Probe Cone Part Length :
21.5 ( 0, -0.05) mm
Probe Rod Part Diameter :
Ф30mm±0.05mm
Probe Length :
80mm±0.2mm
Probe Material :
Stainless steel
Description

IEC 61032 Figure 16 Test Probe 41

Product Overview:

This probe conforms to the standard requirements of IEC 61032 test probe 41 figure 16, IEC60335-1 Clause 8.1.3, etc. This probe is intended to verify the protection against to glowing heating elements.

Probe Dimension:

Probe cone part length (mm) 21.5 (0,-0.05)
Probe rod part diameter (mm) Ф30±0.05
Probe length (mm) 80±0.2
Handle diameter (mm) Ф50±0.2
Handle length (mm) 80±1
Probe material (mm) Stainless steel
Handle material (mm) Nylon
Operation:

Please refer to the relevant standards.

Take IEC60335-1 Clause 8.1.3 as an example:

For appliances other than those of class II, test probe 41 of IEC 61032 is applied without appreciable force to live parts of visibly glowing heating elements, all poles of which can be disconnected by a single switching action. It is also applied to parts supporting such elements, provided that it is obvious from the outside of the appliance, without removing covers and similar parts, that these supporting parts are in contact with the element.

Sinuo can supply the full set of IEC 61032 test probes, and can manufacture various of test probes according other standards requirements, such as UL, VDE, BS, etc. Sinuo's test probes have high accuracy, can pass third party calibration.
