IEC60335-2-24 Electrical Refrigeration Appliances 50mm Drop Testing Equipment
IEC60335-2-24 Electrical Refrigeration Appliances 50mm Drop Testing Equipment
IEC60335-2-24 Electrical Refrigeration Appliances 50mm Drop Testing Equipment
IEC60335-2-24 Electrical Refrigeration Appliances 50mm Drop Testing Equipment
IEC60335-2-24 Electrical Refrigeration Appliances 50mm Drop Testing Equipment
IEC60335-2-24 Electrical Refrigeration Appliances 50mm Drop Testing Equipment
IEC60335-2-24 Electrical Refrigeration Appliances 50mm Drop Testing Equipment
IEC60335-2-24 Electrical Refrigeration Appliances 50mm Drop Testing Equipment
Specifications
Brand Name :
Sinuo
Model Number :
SN2211
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
L/C, , T/T, Western Union, MoneyGram
Supply Ability :
20 sets per month
Delivery Time :
30 Days
Packaging Details :
Plywood
Applied Standard :
IEC60335-2-24
Applied Clauses :
Clause 21.101
Drop Height :
50mm
Bearing Weight :
100KG
Test Times :
0-9999 times
Platform Size :
≥(L)1250mmX(W)850mm
Wooden Platform :
30mm Simulated floor
Support Plate :
18mm composite board
Description

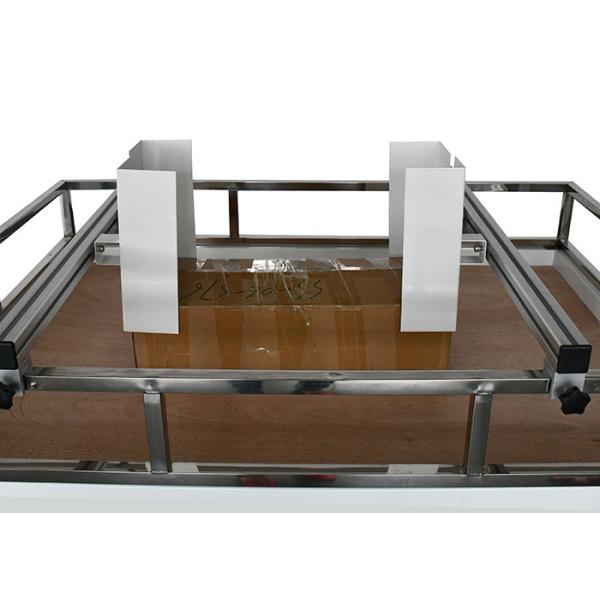

IEC60335-2-24 Electrical Refrigeration Appliances 50mm Drop Testing Equipment

Equipment introduction:

This drop test machine meets the requirements of IEC60335-2-24 clause 21.101,etc.

It is used for repeating drop strength resistance test for various types of electrical appliance. The test times can be preset; it will automatically stop when the test times reaches to the setting value. It is easy to operate. The test sample is placed on a horizontal wooden plate, drop it from 50mm to the hard wooden plate for 50 times.

Technical Parameters:

Project Specification
Power supply AC230V 50Hz power 2kw or match client's local power supply requirements
Bearing weight 100kg
Drop height 50mm
Test times 0-9999 times, can be preset
Platform size ≥(L)1250mmX(W)850mm
Guardrail Hard chromium plating, steel structure
Wooden platform 30mm simulated floor
Support plate 18mm composite board
Sample fixture Adjustable left and right, front and back

IEC60335-2-24 Electrical Refrigeration Appliances 50mm Drop Testing Equipment
