IEC 60811-1 Elongation Test Apparatus For The Insulating Sheath Of Electric Wire
IEC 60811-1 Elongation Test Apparatus For The Insulating Sheath Of Electric Wire
IEC 60811-1 Elongation Test Apparatus For The Insulating Sheath Of Electric Wire
IEC 60811-1 Elongation Test Apparatus For The Insulating Sheath Of Electric Wire
IEC 60811-1 Elongation Test Apparatus For The Insulating Sheath Of Electric Wire
IEC 60811-1 Elongation Test Apparatus For The Insulating Sheath Of Electric Wire
IEC 60811-1 Elongation Test Apparatus For The Insulating Sheath Of Electric Wire
IEC 60811-1 Elongation Test Apparatus For The Insulating Sheath Of Electric Wire
Specifications
Brand Name :
Sinuo
Model Number :
SN2308
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
20 sets per month
Delivery Time :
15 Days
Packaging Details :
Carton
Elongation degree :
220mm
Test samples :
3 pieces
Elongation speed :
20～30mm/min
Chuck mode :
Not self-tight type
Total power :
480W
Motor power :
185W
Power voltage :
220V, 50Hz
Dimensions :
425×245×280mm
Description

IEC 60811-1 Elongation Test Apparatus For The Insulating Sheath Of Electric Wire

Product Information For Elongation Test Apparatus:

This test apparatus conforms to the standard requirements of IEC 60811-505, IEC 60811-1-4, VDE 0472 Part 616, and etc.

It is applicable for the insulating sheath of the high polymer material, electric wire, rubber, and plastic to do the elongation test at the environment of -35°~0°.

Technical Parameters For Elongation Test Apparatus:

1. Maximum degree of elongation:220mm

2. Elongation speed:20～30mm/ min

3. Chuck mode: not self-tight type

4. Specification of sample dumbbell sheet

5. The number of test samples at one time:3 pieces of samples

6. Displacement measurement: ±1mm

7. Displacement measurement: the precision is digital displayed

8. Total power:480W

9. Motor power:185W

10. Power voltage:220V

11. Dimension:425×245×280mm

Operation Steps For Elongation Test Apparatus:

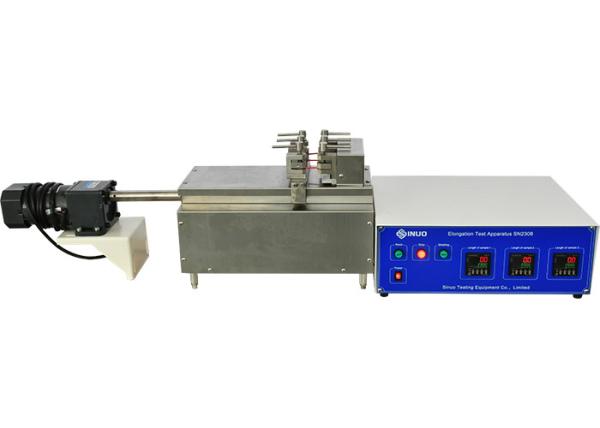

1. Put the stretching machine in the low temperature test box. Then, according to the labels on the back of the equipment, connect the stretching machine to the electric control cabinet, and connect the motor to the electric control cabinet. Connect the power cord of the electric control cabinet to the 230V 50Hz power supply.

2. Turn on the power switch, the power indicator light is on.

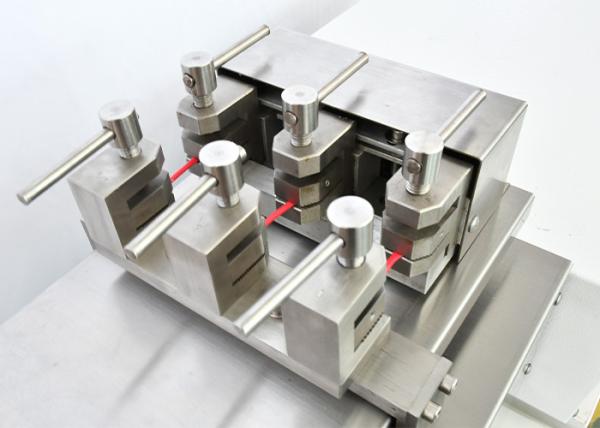

3. Press the [Stretching] button to reserve the position of the sample. Rotate the fixture rod to clamp both ends of the sample, and then press the [Stretching] button to start the test. The counter automatically records the displacement distance.

4. When the sample is broken, the counter stops recording. Press the [Stop] button, the motor stops rotating.

5. Press the [Reset] button to move the sample fixture back to its original position.

6. After finishing the test, please stop the machine and cut off the power. Open the low temperature box, take out the stretching machine, and put it in a ventilated and dry place.

Notice For Elongation Test Apparatus:

1. The stretching speed of the apparatus have been adjusted and fixed before leaving the factory, and generally do not need to be changed.

2. After the apparatus is powered on, please do not open the back door of the electric control cabinet at will to avoid danger.

3. After the elongation test is finished, take the apparatus out of the low-temperature box, dry it, place it in a ventilated place to prevent rust.

IEC 60811-1 Elongation Test Apparatus For The Insulating Sheath Of Electric Wire

IEC 60811-1 Elongation Test Apparatus For The Insulating Sheath Of Electric Wire

IEC 60811-1 Elongation Test Apparatus For The Insulating Sheath Of Electric Wire
