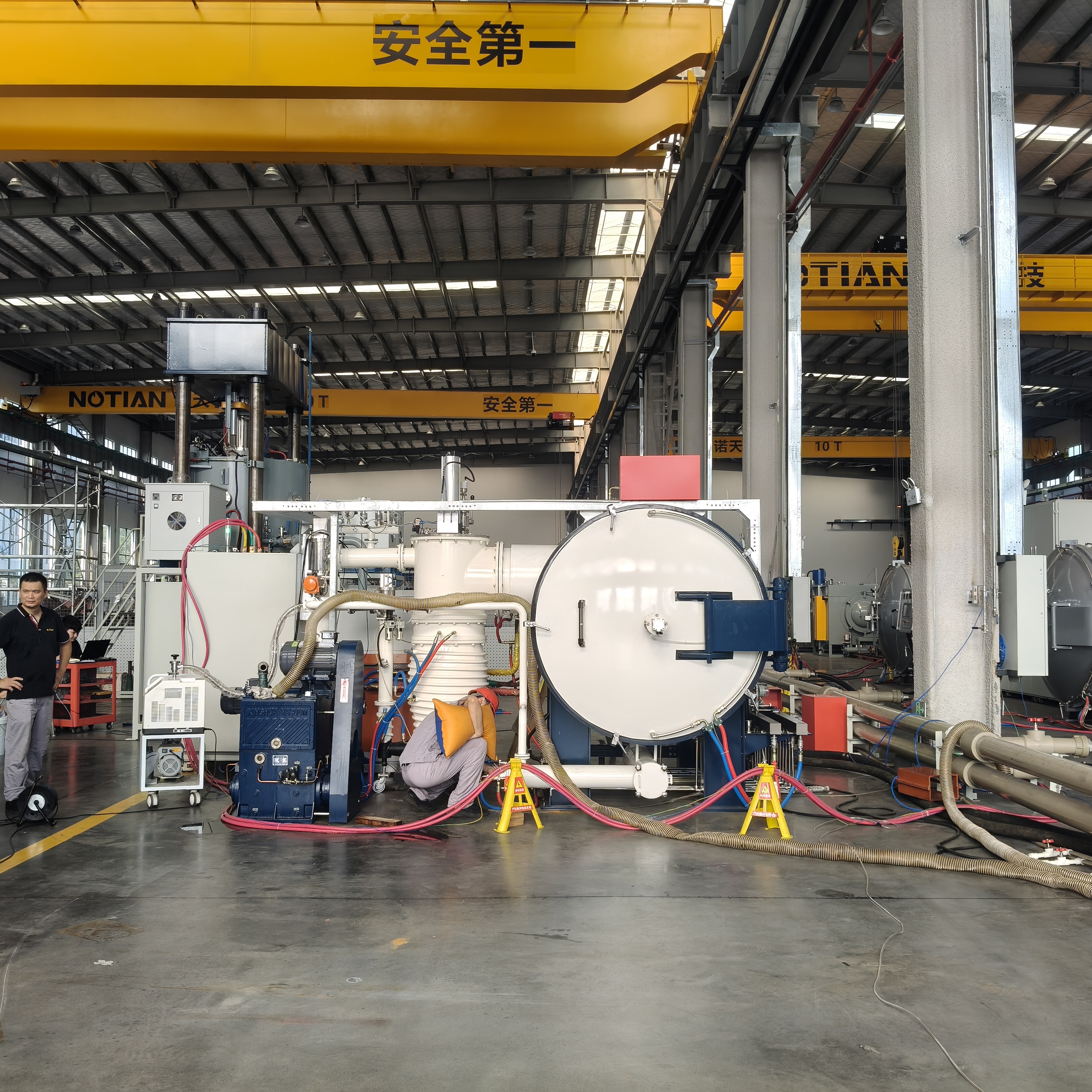

PLC Touch Screen Controlled Vacuum High Temperature Resistance Furnace

Description:

• Designed for continuous industrial heat treatment of rare earth oxide materials, this vacuum resistance furnace adopts high-efficiency resistance heating structure, reaching a max working temperature up to 2200°C.
• It features a well-sealed chamber with ultimate vacuum of 20Pa. Supported by 380V three-phase power supply and thyristor power regulation system, it delivers stable temperature output even during long-duration production cycles.
• Built with robust industrial-grade frame to withstand long-time continuous operation. Its intelligent temperature control unit can accurately set and regulate heating ramp rates and holding periods, ensuring consistent thermal treatment results for bulk batches.
• This structure effectively reduces product inconsistency and raises finished yield for high-performance advanced materials.
• Equipped with comprehensive automatic safety interlock modules, including vacuum leakage monitoring, overtemperature cut-off and power failure protection.
• The intuitive operating interface lowers manual operation workload and safety hazards. It is well-suited for batch manufacturing of PI film, radiation shielding materials, rare earth oxides and various advanced ceramic components.
• Available version: 2000°C Vacuum Sintering Furnace with Graphite Resistance Heating for Pressureless Sintering of Semi-insulating Silicon Carbide.

Application:

• Hard Alloy Manufacturing: Large-scale heat treatment of tungsten carbide and rhenium alloy parts for cutting tools and machinery.
• SiC Component Production: Mass sintering of silicon carbide for semiconductor and industrial equipment applications.
• Carbon Material Processing: High-throughput debinding of PI film and radiation-proof materials for industrial supply chains.

Specification:

Furnace Configuration:

• High-Temperature Capability: Reaches up to 2200℃.
• Vacuum & Resistance Heating: Vacuum environment prevents material oxidation.
• Precise Control: Equipped with FP93 Japanese Shimaden High-Precise Temperature Control System, ensuring stable sintering processes and consistent product quality.
• Versatility: Compatible with a wide range of materials (carbon,ceramics, alloys, c/c,special powders), meeting diverse production needs.
• Safety & Reliability: Equipped with short circuit, over pressure, over-temperature, over current, water shortage, and other protection mechanisms for safe operation.

•
