Modular Marine PSA Nitrogen Generation System 304/316 Stainless Steel 95% Purity 1875-3750 Nm/h
Modular Marine PSA Nitrogen Generation System 304/316 Stainless Steel 95% Purity 1875-3750 Nm/h
Modular Marine PSA Nitrogen Generation System 304/316 Stainless Steel 95% Purity 1875-3750 Nm/h
Modular Marine PSA Nitrogen Generation System 304/316 Stainless Steel 95% Purity 1875-3750 Nm/h
Modular Marine PSA Nitrogen Generation System 304/316 Stainless Steel 95% Purity 1875-3750 Nm/h
Modular Marine PSA Nitrogen Generation System 304/316 Stainless Steel 95% Purity 1875-3750 Nm/h
Modular Marine PSA Nitrogen Generation System 304/316 Stainless Steel 95% Purity 1875-3750 Nm/h
Modular Marine PSA Nitrogen Generation System 304/316 Stainless Steel 95% Purity 1875-3750 Nm/h
Modular Marine PSA Nitrogen Generation System 304/316 Stainless Steel 95% Purity 1875-3750 Nm/h
Modular Marine PSA Nitrogen Generation System 304/316 Stainless Steel 95% Purity 1875-3750 Nm/h
Modular Marine PSA Nitrogen Generation System 304/316 Stainless Steel 95% Purity 1875-3750 Nm/h
Modular Marine PSA Nitrogen Generation System 304/316 Stainless Steel 95% Purity 1875-3750 Nm/h
Specifications
Core Components :
air compressor, air cooler, liquid-gas separator,
Price :
$100000-$300000
Machinery Test Report :
Provided
Color :
custom, Customized Color
Voltage :
Consult customer service
Application :
Industrial Applications
Keyword :
Nitrogen Production Machine
Advantage :
Easy Operation
Production Rate :
1875~3750Nm3/h
After-sales Service Provided :
Online Support
Brand Name :
Zhong Rui Wei Fei
Video outgoing-inspection :
Provided
MOQ :
1set
Weight :
600 KG
Warranty :
1 Year
Function :
Nitrogen Making
Usage :
Nitrogen
Place of Origin :
China
Material :
304/316
Product name :
Marine PSA nitrogen production
Purity :
95%, 95%
Dimension(L*W*H) :
custom
Key Selling Points :
Multifunctional
Technology :
PSA Separator
Description
Modular Marine PSA Nitrogen Generation System 304/316 Stainless Steel 95% Purity 1875-3750 Nm/h
Modular Marine PSA Nitrogen Generation System 304/316 Stainless Steel 95% Purity 1875-3750 Nm/h
Modular Marine PSA Nitrogen Generation System 304/316 Stainless Steel 95% Purity 1875-3750 Nm/h
Modular Marine PSA Nitrogen Generation System 304/316 Stainless Steel 95% Purity 1875-3750 Nm/h
Modular Marine PSA Nitrogen Generation System 304/316 Stainless Steel 95% Purity 1875-3750 Nm/h
Modular Marine PSA Nitrogen Generation System 304/316 Stainless Steel 95% Purity 1875-3750 Nm/h
Special note： The models produced by our factory are personalized customized products, and the official published price is only a reference benchmark for the market, and does not have the effect of actual trading. If you need to obtain an accurate quotation, please contact us through official channels, we will be based on your technical parameter requirements, configuration selection and mass production scale, by the senior product consultant team to issue a one-to-one exclusive quotation plan.
Products Description
Modular Marine PSA Nitrogen Generation System 304/316 Stainless Steel 95% Purity 1875-3750 Nm/h
Marine Pressure Swing Adsorption (PSA) nitrogen generation systems are specialized units designed to produce high-purity nitrogen (N₂) onboard ships and offshore platforms. These systems are essential for applications such as inert gas generation, cargo tank blanketing, fire prevention, and purging in marine environments.
Modular Marine PSA Nitrogen Generation System 304/316 Stainless Steel 95% Purity 1875-3750 Nm/h
Working principle This PSA nitrogen generating system is composed of compressed air system, compressed air purification system, PSA nitrogen making system, nitrogen storage system, etc. 1.Air compressor provides compressed air with certain pressure; 2.Air purification system purifies compressed air by removing the dust, oil and water; 3.Nitrogen separation system produce qualified nitrogen gas with psa technology; 4.Nitrogen storage system provides a stable source and store nitrogen gas.
Name
Marine PSA nitrogen production
Brand
Zhongrui Weifei
Material
304/316
Filter Skid Skid Dim
2000 x 800 x 2234 mm (L x W x H)

Nitrogen Generation Skid Dim
3210 x 2620 x 2485 mm (L x W x H)
Nitrogen Generation Method： Pressure Swing Adsorption (PSA)
Designed Nitrogen Flow Rate： 1875 Nm³/h
Designed Nitrogen Purity： 95% non-oxygen content (v/v%)
Maximum Exhaust Pressure： ≤ 0.7 MPa (Gauge)
Gas Particle Size： ≤ 0.01 μm
Gas Oil Content ： ≤ 0.01 ppm
Filter Skid Skid Weight (t) 0.8
Nitrogen Generation Skid Weight (t) 9
Filter Skid Skid Dim
2081 x 730 x 2353 mm (L x W x H)

Nitrogen Generation Skid Dim
4780 x 3000 x 2540 mm (L x W x H)
Nitrogen Generation Method： Pressure Swing Adsorption (PSA)
Designed Nitrogen Flow Rate： 2820 Nm³/h
Designed Nitrogen Purity： 95% non-oxygen content (v/v%)
Maximum Exhaust Pressure： ≤ 0.7 MPa (Gauge)
Gas Particle Size： ≤ 0.01 μm
Gas Oil Content ： ≤ 0.01 ppm
Filter Skid Skid Weight (t) 0.9
Nitrogen Generation Skid Weight (t) 16
Filter Skid Skid Dim
1785 x 550 x 2323 mm (L x W x H)

Nitrogen Generation Skid Dim 6636 x 3000 x 2455 mm (L x W x H)
Nitrogen Generation Method： Pressure Swing Adsorption (PSA)
Designed Nitrogen Flow Rate ： 3750 Nm³/h
Designed Nitrogen Purity： 95% non-oxygen content (v/v%)
Maximum Exhaust Pressure： ≤ 0.8 MPa (Gauge)
Gas Particle Size： ≤ 0.01 μm
Gas Oil Content ≤ 0.01 ppm
Filter Skid Skid Weight (t) 0.78
Nitrogen Generation Skid Weight (t) 22

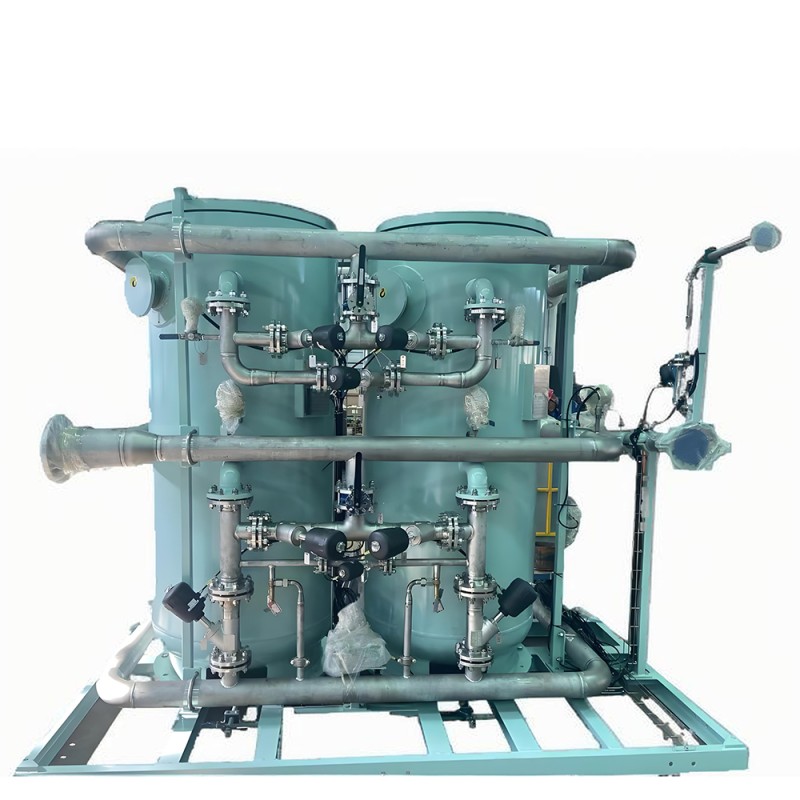

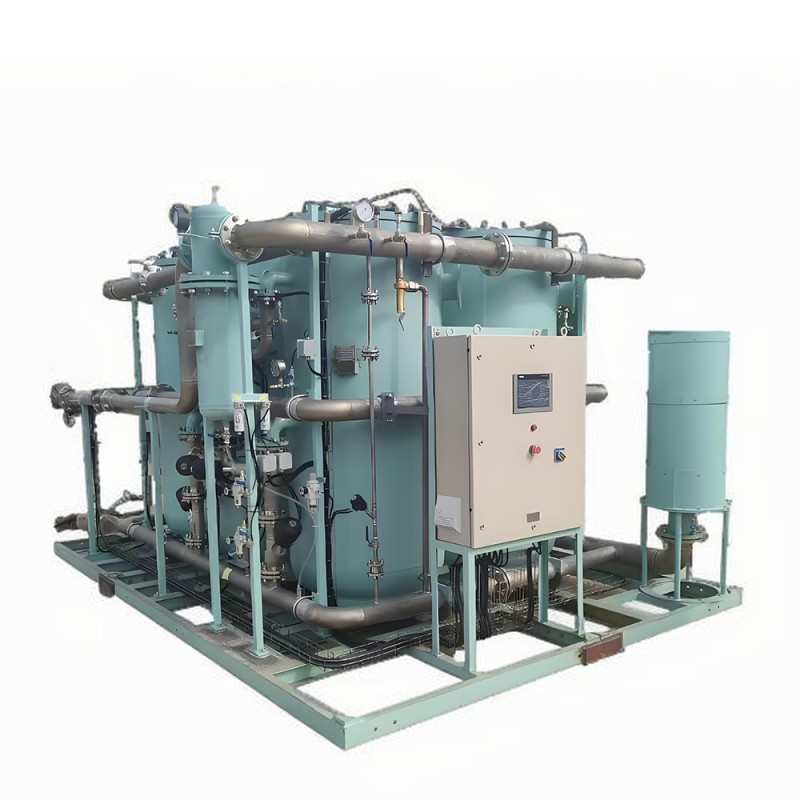

Product display
Modular Marine PSA Nitrogen Generation System 304/316 Stainless Steel 95% Purity 1875-3750 Nm/h
Easy to operate Simple Process and Less Equipment, High Automation and Operation Convenience. ​​ Energy-saving & efficient The PSA nitrogen generator features low energy consumption and operating costs, producing gas within minutes of startup, making it ideal for small to medium-scale nitrogen demands. Strong adaptability Can work stably in marine environments, resistant to corrosion and seawater impact. High Purity Through process optimization, the PSA nitrogen generator achieves 99.999% purity, making it ideal for high-purity nitrogen applications.
Modular Marine PSA Nitrogen Generation System 304/316 Stainless Steel 95% Purity 1875-3750 Nm/h
Modular Marine PSA Nitrogen Generation System 304/316 Stainless Steel 95% Purity 1875-3750 Nm/h
Product application areas
Modular Marine PSA Nitrogen Generation System 304/316 Stainless Steel 95% Purity 1875-3750 Nm/h
Marine Science and Research: Sampling of Seawater, Protection of Underwater Research Equipment. Shipbuilding industry: rust prevention of ship hulls, pressure gas supply. Industrial applications: chemical, metallurgical, food protection and other occasions that require high-purity nitrogen gas.
Modular Marine PSA Nitrogen Generation System 304/316 Stainless Steel 95% Purity 1875-3750 Nm/h
Packaging and shipping
Modular Marine PSA Nitrogen Generation System 304/316 Stainless Steel 95% Purity 1875-3750 Nm/h
Wooden packing box is used for packaging, with anti-collision foam blocks inside, and the packaging method meets the export standard. Some important vulnerable components in the equipment will be treated separately to prevent collisions
Modular Marine PSA Nitrogen Generation System 304/316 Stainless Steel 95% Purity 1875-3750 Nm/h
Our company
Modular Marine PSA Nitrogen Generation System 304/316 Stainless Steel 95% Purity 1875-3750 Nm/h
Qingdao Zhongrui Weifei Marine Equipment Co., Ltd., founded in 2019 in Qingdao West Coast New Area, is a joint - venture of Ruiyuan Holdings Group and Kerui Group with a 300 - million - yuan registered capital. As a national high - tech entity, it masters the full value chain of marine oil and gas equipment, from R&D to after - sales service. Specializing in high - end intelligent oil and gas equipment for marine and underwater use, its main products include automated drilling and repair gear, production - enhancing equipment, ship - based nitrogen producers, and underwater wellhead Christmas tree support. Guided by the quality policy of "Pursuing Excellence, etc." and business philosophy of "Integrity, etc.", it is making strides towards its goal of making marine oil and gas equipment safer and more intelligent.
Modular Marine PSA Nitrogen Generation System 304/316 Stainless Steel 95% Purity 1875-3750 Nm/h
Why Choose Us
Modular Marine PSA Nitrogen Generation System 304/316 Stainless Steel 95% Purity 1875-3750 Nm/h
We are one of the leading manufacturers globally and possess extensive experience. Our product range is highly flexible and we are constantly expanding it to meet the demands of our customers.
Modular Marine PSA Nitrogen Generation System 304/316 Stainless Steel 95% Purity 1875-3750 Nm/h
Modular Marine PSA Nitrogen Generation System 304/316 Stainless Steel 95% Purity 1875-3750 Nm/h
Modular Marine PSA Nitrogen Generation System 304/316 Stainless Steel 95% Purity 1875-3750 Nm/h
FAQ
Q1: Are you a trading company or manufacturer? A: Firstly. we are a manufacturer, we have our own factory and engineers. Secondly, we have our own international trade teams to provide services for you. Thirdly, we provide the lifetime technology support and the best after-sale service. Q2: What is your term of payment? A: 30%T/T in advance and balance before shipment. 30% T/T in advance and Irrevocable L/C at Sight. Q3 How long is your delivery time? A: Depending on what type of machine you are purchased. Q4: What is your product quality assurance policy? A: We offer a warranty period of 1 year, free lifetime technology support. Q5: Do you offer OEM/ODM service? A: Yes, please let's know your specific require. Our engineer will follow your requirement to design for you and provide detailed technical specification and commercial quotation. Q6: Does your product used or new? RTS product or customized product? A:Our machine is new unit, and following your specific require to design and make it.
