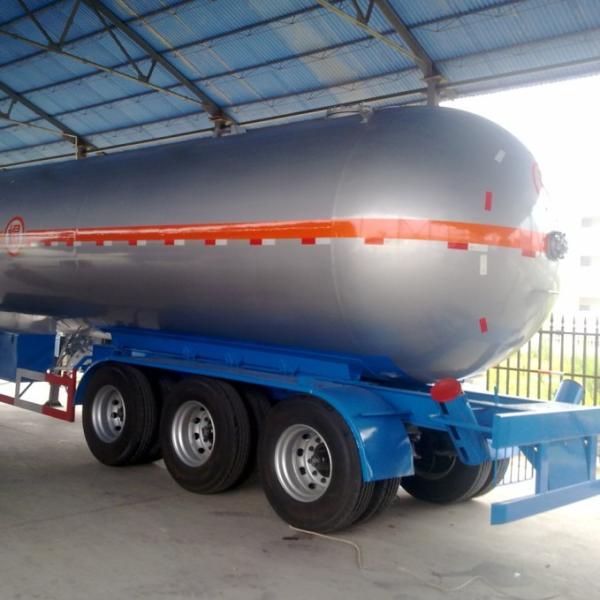

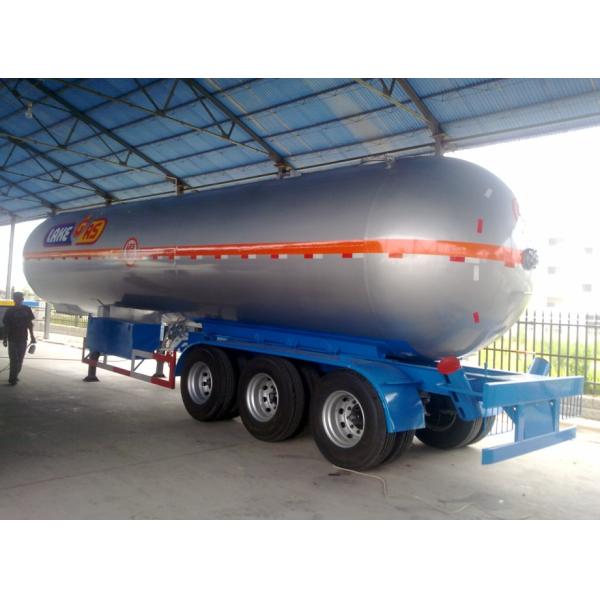

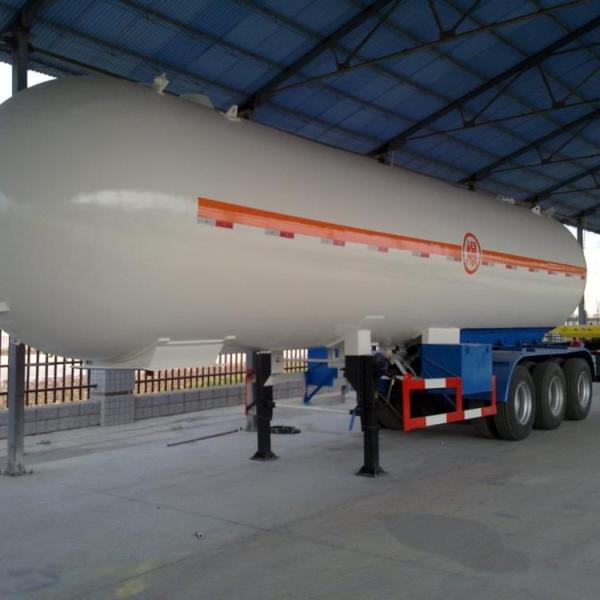

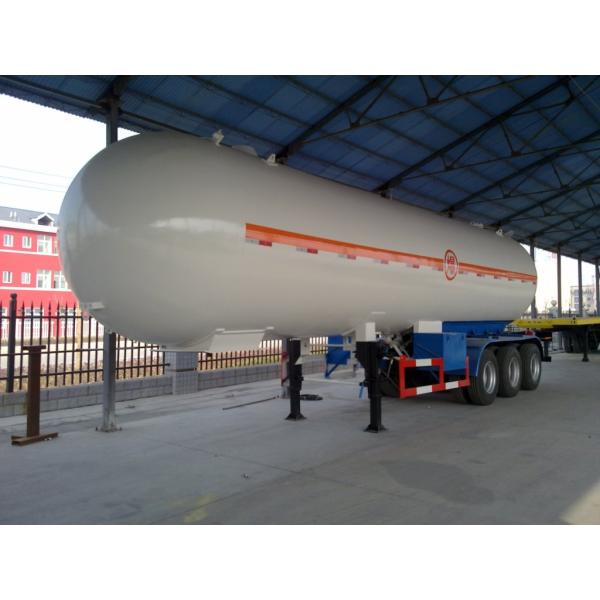

Made in China 56 cmb LPG Tanker trailer
Made in China 56 cmb LPG Tanker trailer
Made in China 56 cmb LPG Tanker trailer
Made in China 56 cmb LPG Tanker trailer
Specifications
Use :
Truck Trailer
Type :
Semi-Trailer
Material :
Steel
Size :
12800*3700*2500
Max Payload :
60tons
Place of Origin :
Hubei, China
Brand Name :
Huawin
Certification :
ce
Product name :
3-axle LPG Semi-trailer
Suspension :
Mechanical Suspension
Tire :
12R22.5
Color :
White
Axle Brand :
FUWA Brand 13Ton Axle
Capacity :
30~60T
Landing Gear :
JOST / FUWA 28T
King pin :
2"(50mm)or3.5"(90mm) JOST
Port :
Qingdao
Supply Ability :
100 Unit/Units per Month
Price :
$36,000.00/Units >=1 Units
Description

Main Dimensions

Overall Length

Overall Height

Overall Width

Tare Weight

Loading Capacity

Tank Body

Shape

Round

Total Volume(m3)

56 CBM

Tanker Body Material

12 mm Q370R

End plate

14 mm Q370R

Design pressure

1.61 MPa

Hydraulic test pressure

2.66 MPa

Design temperature

-20-50 celsius

LPG content and density

Propane, 420 kg/m3

Chassis

Axle

3 axles

BPW 13 Ton with ABS

Landing Gear

JOST brand Two-speed, manual operating, heavy duty landing gear

King Pin

JOST brand 2” bolt-in king pin

Suspension

Air bag suspension

Pneumatic Braking System

WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks.

Wheel rim

9.0-22.5 wheel rim, 13 pieces

Tire

12R22.5 tubeless tire with one spare tire, 13 pieces

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint

Accessories

tool box, valve box, safety valve, thermometer, pressure gauge, emergency cut valve, fire extinguisher, ground wire

Loading and offloading

Equipped on both sides

Made in China 56 cmb LPG Tanker trailerMade in China 56 cmb LPG Tanker trailer
