2 Axle Hauling Semi Trailer Car Hauling Trailer Carrier Semi Trailer for Sale

Specifications

Use :

Truck Trailer

Type :

Semi-Trailer

Material :

Steel

Size :

Customised

Max Payload :

50T

Place of Origin :

Hubei, China

Brand Name :

Huawin

Model Number :

SGZ

OE NO. :

Optional

Certification :

Color :

Blue or as customers' option

Logo :

Can Be Designed as Customers' Option

Axle :

King Pin :

JOST Brand 3.5" bolt-in

Suspension :

Mechinal Suspension

Packaging Details :

Nude Pack. The packing shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland.

Port :

China Main Port

Supply Ability :

1000 Unit/Units per Month

Price :

$21,900.00 - $27,300.00/Units

Description

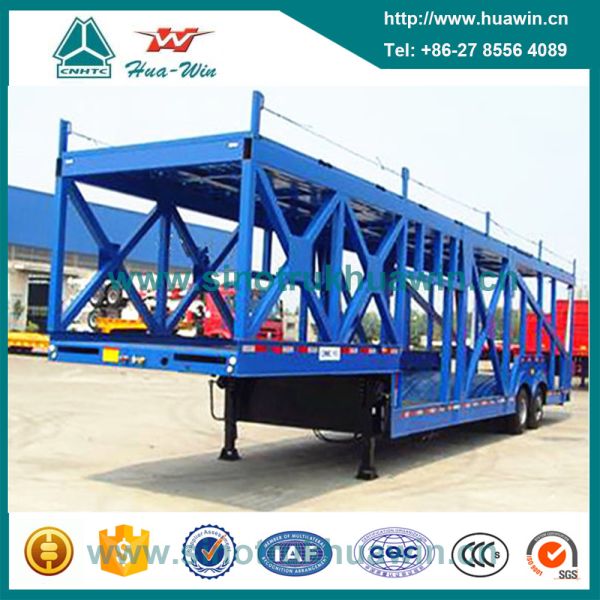

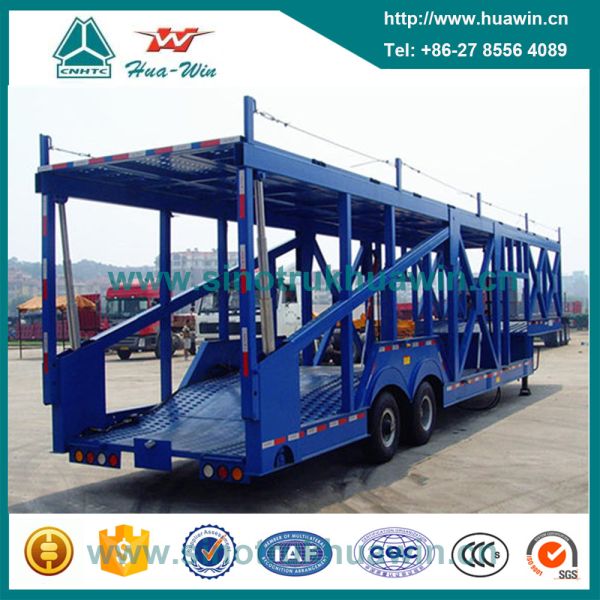

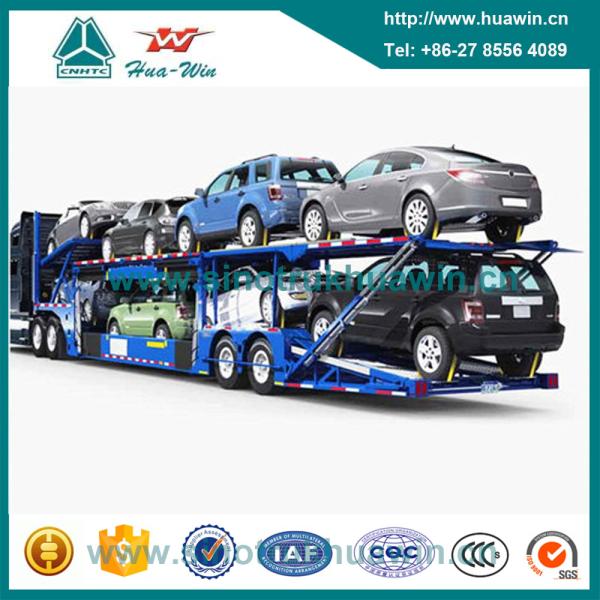

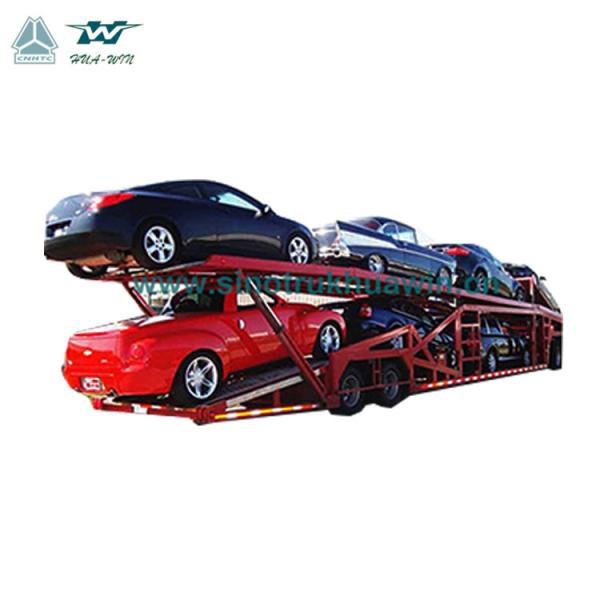

2 Axle Hauling Semi Trailer Car Hauling Trailer Carrier Semi Trailer for Sale

Specifications

(1) Car carrier semi trailer
(2) 2Axle
(3) Loading Capacity: 50000KG
(4) Payload car qty 6~8 units
(5) 4 Sets Hydraulic Cylinder
(6) Certification: ISO9001 CCC,SGS

Technical Parameters

DIMENSIONS
Overall Length	16200mm
Overall Width	2500mm
Overall Height	3800mm
Payload	6~8 cars
SPECIFICATION
Chassis	Overall loading chassis; Optional for high tensile steel Q345B, welded by automatic Submerged-Arc processes.
Main construction	Overall skeletal structure, Hydraulic lifting double-deck
Axle	2 axles 13Ton
	Brand Name: BPW
Suspension	Mechanical suspension or air suspension
Leaf Spring	8-piece leaf spring
Hydraulic	4 sets Hydraulic Cylinder
King Pin	JOST brand 2.0" Bolt-in King Pin
Landing Gear	JOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim	9.0-22.5
Tyre	315/80R22.5 tubeless tire 8pcs
Spare Tire	One set of spare tire including a carrier
Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box
