Specifications
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works , Energy & Mining
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
Motor
Condition :
New
Type :
Circular
Application :
Ore, industrial waste, mulch, organics, bark, MSW, building waste
Place of Origin :
Henan, China
Brand Name :
sinolion
Voltage :
380v/415v/440v
Dimension(L*W*H) :
depends on models
Weight :
4000 KG
Warranty :
1 Year
After-sales Service Provided :
Engineers available to service machinery overseas
Screen material :
steel bar, steel plate punch hole, steel wire woven, stainless steel
Power :
3-45KW
Dimension :
according to capacity
Installation :
supply manual to guide user
Capacity :
50-500 tons per hour
Feeding size :
less than 300mm
Discharge size :
as request
Color :
yellow, white, red, blue, gray( or as client request)
Price :
$4,100.00 - $28,750.00/sets
MOQ :
1 unit
Description

Woodchips drum sieve compost rotary trommel screen with high efficiency

Product Description

4000 KG Capacity Woodchips Drum Sieve Compost Rotary Trommel Screen with and Capacity

This wheeled mobile trommel screen systems’ high flexibility and the comprehensive range of products, from the smallest screening machine with less than 1.8 tons to the largest with up to 20 tons, enable the company to serve customers from the gardening, landscaping, recycling, timber, civil engineering, glass and even gravel pits and quarries. This wheeled mobile machine are not only used in the processing of earth materials, but also in more specific fields of application, such as the extraction of recyclable fractions of plastics, foils and wood chips and in the processing of compost, milled material, building rubble, stones, gravel, as well as glass or even in the recycling of sandbags.

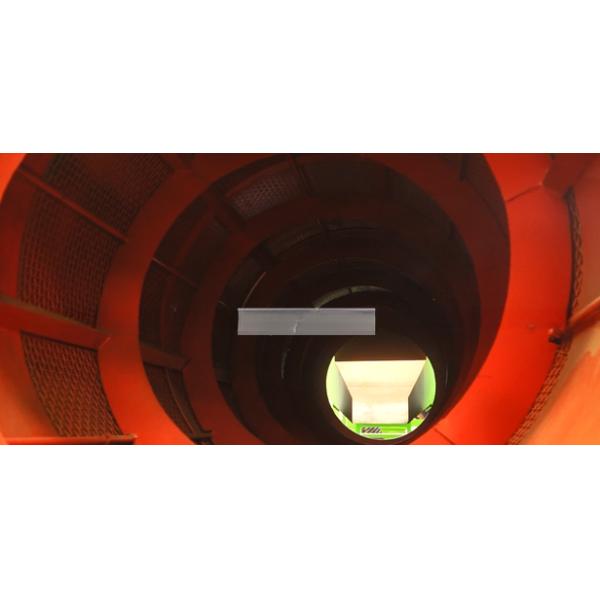

This wheeled mobile machine can neatly screen e.g. compost, soil, sand, slag, gravel, gravel, wood chips, refuse, stones as well as mineral waste from 2 – 80 mm. The material is filled into the belt feeder, which can hold up to 5.5 m³. The material is then fed into the double tromel. It consists of a steel, robust inner cage and an outer cage that can be equipped with wire screens of various mesh sizes. What the inner cage does not retain is captured by the outer cage, the fine fraction is discharged via a conveyor belt. Once a mountain of work has been eliminated, the can be towed to the next location.

4000 KG Capacity Woodchips Drum Sieve Compost Rotary Trommel Screen with and Capacity

4000 KG Capacity Woodchips Drum Sieve Compost Rotary Trommel Screen with and Capacity

technical parameters


Model Trommel diameter
(mm)		 Trommel length
(mm)		 Capacity
(m3/h)		 motor power(KW) Weight
(Kg)		 Dimensions
(L*W*H)
MTS0818 800 1800 ≤15 2.4 650 3.15*1.1*1.65
MTS1022 1000 2200 ≤30 8.2 2750 4.3*1.9*2.45
MTS1230 1200 3000 ≤60 10.6 3210 5.4*2.1*2.7
MTS1550 1500 5000 ≤90 20 7900 9.4*2.2*2.9
4000 KG Capacity Woodchips Drum Sieve Compost Rotary Trommel Screen with and Capacity

The trommel screen is a heavy-duty, mobile drum screen machine built for small to medium-sized topsoil and compost operations.

» Horizontal drum delivers consistent output.

» Material rides on screening surface for extremely effective separation.

4000 KG Capacity Woodchips Drum Sieve Compost Rotary Trommel Screen with and Capacity4000 KG Capacity Woodchips Drum Sieve Compost Rotary Trommel Screen with and Capacity
