Specifications
Applicable Industries :
Energy & Mining
Showroom Location :
United States, Italy, Germany, Mexico, UAE, Colombia, Australia
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2023
Warranty of core components :
1 Year
Core Components :
Engine, Bearing, Gearbox, Motor
Condition :
New
Type :
Gravity Separator
Place of Origin :
China
Brand Name :
Sinolion
Voltage :
220V/380V
Dimension(L*W*H) :
As per different model
Weight :
3210 KG
Warranty :
1 Year
Product name :
Mobile trommel screen
Certification :
CE
Screen material :
steel bar, steel plate, manganese steel wire woven, stainless steel
Installation :
supply manual to guide user
Color :
yellow, white, red, blue, gray( or as client request)
Advantage :
High Separation Efficiency
Usage :
Gravity Ore Separator
Feature :
High Recovery Rate Easy
After sale service :
One Year
MOQ :
1Set
Price :
$4,100.00 - $28,750.00/sets
MOQ :
1 unit
Description
Gravity Separator Energy Mining Compost Soil Sifting Machine with and Efficiency
Gravity Separator Energy Mining Compost Soil Sifting Machine with and Efficiency
Gravity Separator Energy Mining Compost Soil Sifting Machine with and Efficiency
Factory Price High Performance Compost Soil Sifting Machine Models Optional
The mobile trommel screening machine is a screening equipment developed by our company for small and medium-sized and light materials such as compost, wood chips, cow dung, sand and gravel. It has the following characteristics: 1. Wide material adaptability: Used for screening of various materials. Can be used for screening materials such as compost, topsoil and cattle and sheep manure.
2. High screening efficiency:
The device has a rotating helix inside. During the screening process, the materials entering the screening cylinder can be rotated and screened according to the spiral to improve the screening efficiency of the equipment.
3. The projection composition is large and easy to zoom in:
Under the same size, the circular area is larger than other shapes, so the effective screening area is large, so that the
materials can be fully contacted for screening, and the screening weight per unit time is large.
Gravity Separator Energy Mining Compost Soil Sifting Machine with and Efficiency
Gravity Separator Energy Mining Compost Soil Sifting Machine with and Efficiency
Gravity Separator Energy Mining Compost Soil Sifting Machine with and Efficiency
Gravity Separator Energy Mining Compost Soil Sifting Machine with and Efficiency

Structure and Principle

The mobile trommel screen is mainly composed of silo, screen drum, idler assembly, transmission part, discharge conveyor, brush, underframe, rear axle, traction, diesel generator, control cabinet, protective cover and other parts. The basic working principle of the trommel screen: As you feed materials into the drum, the material begins to rotate and tumble inside the drum before calming down intermittently. This revolution is completed along the length of the drum. Hence, the finer materials pass through the screen openings while the larger ones tumble to their exit through the rear end of the drum. Separation of different materials is done most efficiently to produce highest output.
Gravity Separator Energy Mining Compost Soil Sifting Machine with and Efficiency
Model
Trommeldiameter
(mm)
Trommel length
(mm)
Capacity
(m3/h)
motor power
（KW）
Weight
(Kg)
Dimensions
(L*W*H)
MTS0818
800
1800
≤15
2.4
650
3.15*1.1*1.65
MTS1022
1000
2200
≤30
8.2
2750
4.3*1.9*2.45
MTS1230
1200
3000
≤60
10.6
3210
5.4*2.1*2.7
MTS1550
1500
5000
≤90
20
7900
9.4*2.2*2.9
Gravity Separator Energy Mining Compost Soil Sifting Machine with and Efficiency
Gravity Separator Energy Mining Compost Soil Sifting Machine with and Efficiency
Gravity Separator Energy Mining Compost Soil Sifting Machine with and Efficiency
Gravity Separator Energy Mining Compost Soil Sifting Machine with and Efficiency
Gravity Separator Energy Mining Compost Soil Sifting Machine with and Efficiency
Gravity Separator Energy Mining Compost Soil Sifting Machine with and Efficiency
Gravity Separator Energy Mining Compost Soil Sifting Machine with and Efficiency
Gravity Separator Energy Mining Compost Soil Sifting Machine with and Efficiency
Gravity Separator Energy Mining Compost Soil Sifting Machine with and Efficiency
Gravity Separator Energy Mining Compost Soil Sifting Machine with and Efficiency
Gravity Separator Energy Mining Compost Soil Sifting Machine with and Efficiency
Gravity Separator Energy Mining Compost Soil Sifting Machine with and Efficiency

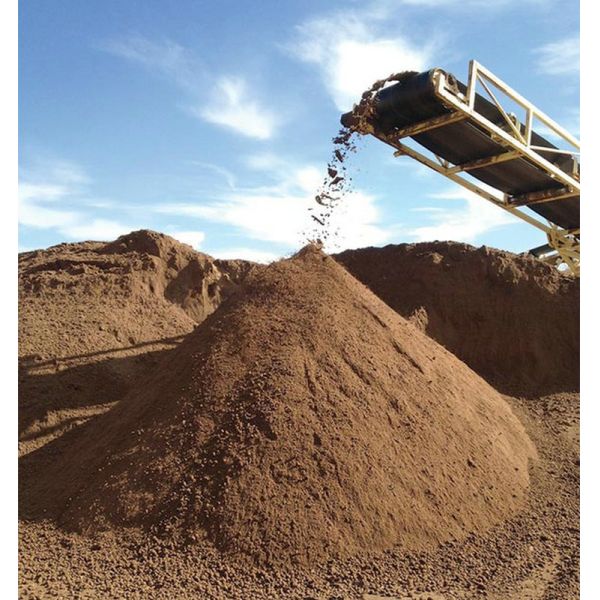

Application
Gravity Separator Energy Mining Compost Soil Sifting Machine with and Efficiency
Gravity Separator Energy Mining Compost Soil Sifting Machine with and Efficiency
Gravity Separator Energy Mining Compost Soil Sifting Machine with and Efficiency
Gravity Separator Energy Mining Compost Soil Sifting Machine with and Efficiency
Packing & Delivery
Gravity Separator Energy Mining Compost Soil Sifting Machine with and Efficiency
Gravity Separator Energy Mining Compost Soil Sifting Machine with and Efficiency
Gravity Separator Energy Mining Compost Soil Sifting Machine with and Efficiency
Gravity Separator Energy Mining Compost Soil Sifting Machine with and Efficiency
Gravity Separator Energy Mining Compost Soil Sifting Machine with and Efficiency
Gravity Separator Energy Mining Compost Soil Sifting Machine with and Efficiency
Gravity Separator Energy Mining Compost Soil Sifting Machine with and Efficiency
Gravity Separator Energy Mining Compost Soil Sifting Machine with and Efficiency
Gravity Separator Energy Mining Compost Soil Sifting Machine with and Efficiency
