Specifications
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
Engine
Condition :
New
Type :
Circular
Application :
compost ,topsoil
Place of Origin :
Henan, China
Brand Name :
Sinolion
Voltage :
220/380V/415V
Dimension(L*W*H) :
According to the device model
Weight :
3210 KG
Warranty :
1 Year
Product name :
Mobile Dirt Screener Equipment
Screen material :
steel bar, steel plate, manganese steel wire woven, stainless steel
Discharge size :
as request
Feeding size :
less than 300mm
Installation :
supply manual to guide user
Color :
yellow, white, red, blue, gray( or as client request)
Usage :
Remove Dirty Soil
After sale service :
One Year
Feature :
High Recovery Rate Easy
Certification :
CE
Packaging Details :
All products will be processed to be rustproof and moisture proof before delivery.
20GP container or 40GP container
Equipment is packed with plastic wrap or steel case, depends on machine weight.
Motor is packed with steel case or wooden case.
Port :
Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( as client request)
Supply Ability :
50 Set/Sets per Month gold trommel screening plant
Price :
$4,100.00 - $28,750.00/sets
MOQ :
1 unit
Description
Gray Heavy Duty Mobile Trommel Screen for Circular Dirt Separation and Recycling Needs
Gray Heavy Duty Mobile Trommel Screen for Circular Dirt Separation and Recycling Needs
Gray Heavy Duty Mobile Trommel Screen for Circular Dirt Separation and Recycling Needs

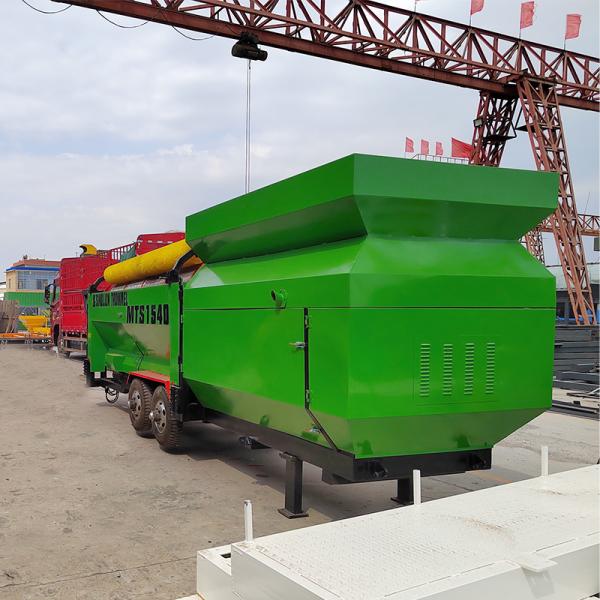

Heavy Duty Mobile Trommel Screen Dirt Screener Equipment Manufacturer
The mobile trommel screen can screen cohesive soil, remove impurities such as stones, broken stones, rotten leaves and so on in the soil (including cohesive soil), and classify and screen the soil (including cohesive soil). Fine soil with smaller particle size. In addition to screening fine soil, the mobile drum screen can screen compost, topsoil, cattle and sheep manure and other materials.
Gray Heavy Duty Mobile Trommel Screen for Circular Dirt Separation and Recycling Needs

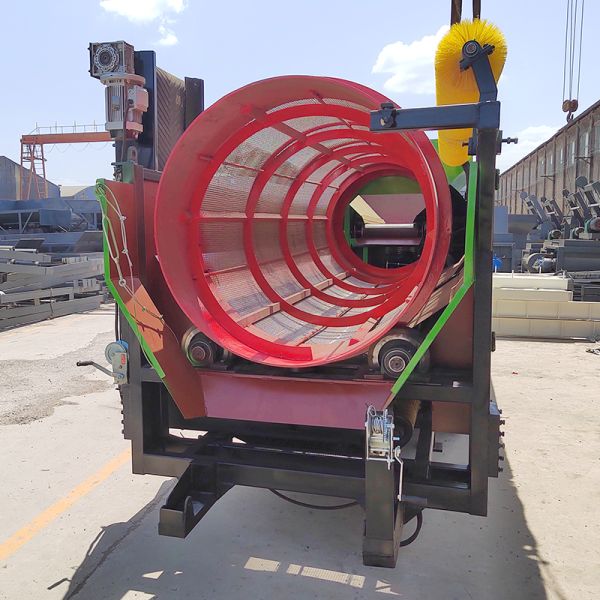

Structure and Principle

The composition of the drum screen is composed of several structures such as feeding hopper, motor, reducer, screen, discharge port, bracket, etc. The materials are first fed into the drum screen by an excavator or manually, and then various materials are fed into the drum screen. After entering the trommel sieve, it is sieved out of different sieve mesh apertures, and the large material is discharged from the tail of the trommel sieve. The equipment is optionally equipped with a cleaning brush, which can clean the clay on the screen during sieving to prevent materials from clogging the sieve holes.
Gray Heavy Duty Mobile Trommel Screen for Circular Dirt Separation and Recycling Needs
Model
Trommeldiameter
(mm)
Trommel length
(mm)
Capacity
(m3/h)
motor power
（KW）
Weight
(Kg)
Dimensions
(L*W*H)
MTS0818
800
1800
≤15
2.4
650
3.15*1.1*1.65
MTS1022
1000
2200
≤30
8.2
2750
4.3*1.9*2.45
MTS1230
1200
3000
≤60
10.6
3210
5.4*2.1*2.7
MTS1550
1500
5000
≤90
20
7900
9.4*2.2*2.9
Gray Heavy Duty Mobile Trommel Screen for Circular Dirt Separation and Recycling Needs
Gray Heavy Duty Mobile Trommel Screen for Circular Dirt Separation and Recycling Needs
Gray Heavy Duty Mobile Trommel Screen for Circular Dirt Separation and Recycling Needs
Gray Heavy Duty Mobile Trommel Screen for Circular Dirt Separation and Recycling Needs
Gray Heavy Duty Mobile Trommel Screen for Circular Dirt Separation and Recycling Needs
Gray Heavy Duty Mobile Trommel Screen for Circular Dirt Separation and Recycling Needs
Gray Heavy Duty Mobile Trommel Screen for Circular Dirt Separation and Recycling Needs
Gray Heavy Duty Mobile Trommel Screen for Circular Dirt Separation and Recycling Needs
Gray Heavy Duty Mobile Trommel Screen for Circular Dirt Separation and Recycling Needs
Gray Heavy Duty Mobile Trommel Screen for Circular Dirt Separation and Recycling Needs
Application
Gray Heavy Duty Mobile Trommel Screen for Circular Dirt Separation and Recycling Needs
Gray Heavy Duty Mobile Trommel Screen for Circular Dirt Separation and Recycling Needs
Packing & Delivery
Gray Heavy Duty Mobile Trommel Screen for Circular Dirt Separation and Recycling Needs
Gray Heavy Duty Mobile Trommel Screen for Circular Dirt Separation and Recycling Needs
Gray Heavy Duty Mobile Trommel Screen for Circular Dirt Separation and Recycling Needs
Gray Heavy Duty Mobile Trommel Screen for Circular Dirt Separation and Recycling Needs
Gray Heavy Duty Mobile Trommel Screen for Circular Dirt Separation and Recycling Needs
Gray Heavy Duty Mobile Trommel Screen for Circular Dirt Separation and Recycling Needs
Gray Heavy Duty Mobile Trommel Screen for Circular Dirt Separation and Recycling Needs
