High Capacity Wood Chip Rotary Shaker for Biomass Drum Sieve Compost Roller Screening
High Capacity Wood Chip Rotary Shaker for Biomass Drum Sieve Compost Roller Screening
High Capacity Wood Chip Rotary Shaker for Biomass Drum Sieve Compost Roller Screening
High Capacity Wood Chip Rotary Shaker for Biomass Drum Sieve Compost Roller Screening
High Capacity Wood Chip Rotary Shaker for Biomass Drum Sieve Compost Roller Screening
High Capacity Wood Chip Rotary Shaker for Biomass Drum Sieve Compost Roller Screening
High Capacity Wood Chip Rotary Shaker for Biomass Drum Sieve Compost Roller Screening
High Capacity Wood Chip Rotary Shaker for Biomass Drum Sieve Compost Roller Screening
High Capacity Wood Chip Rotary Shaker for Biomass Drum Sieve Compost Roller Screening
High Capacity Wood Chip Rotary Shaker for Biomass Drum Sieve Compost Roller Screening
High Capacity Wood Chip Rotary Shaker for Biomass Drum Sieve Compost Roller Screening
High Capacity Wood Chip Rotary Shaker for Biomass Drum Sieve Compost Roller Screening
Specifications
Applicable Industries :
Building Material Shops, Manufacturing Plant, Home Use, Retail, Construction works , Energy & Mining, Other
Showroom Location :
Canada, United Kingdom, United States, Italy, Mexico, UAE, Colombia, Australia, None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2022
Warranty of core components :
1 Year
Core Components :
Engine, Motor
Condition :
New
Type :
Circular
Application :
Ore
Place of Origin :
China
Brand Name :
sinolion
Voltage :
380v/415v/440v
Dimension(L*W*H) :
5400*2100*2700mm
Weight :
3210 KG
Warranty :
1 Year
Keyword :
wood chip rotary shaker for biomass
Screen material :
compost, soil, wood, biomass, sand and gravel etc.
Dimension :
5400*2100*2700mm
Installation :
supply manual to guide user
Capacity :
≤60m³/h
Feeding size :
less than 300mm
Discharge size :
2mm-80mm
Color :
Green or as client request
After-sales Service Provided :
Field installation, commissioning and training
Price :
$15,900.00/sets 1-1 sets
MOQ :
1 unit
Description

High efficient wood chip rotary shaker for biomass drum sieve compost roller screen machine

Like all machines in the MTS series, the MTS1230 compost roller trommel screen machine

not picky about sifting out waste and raw materials regards. lt is equally suitable for compost, soil, wood, biomass, sand and gravel etc.

Screening materials: earth, sand, gravel, compost,wood chips, construction waste, recycling material,slag, crushed stane and stone in grain sizes from 2mm to 80mm

High Capacity Wood Chip Rotary Shaker for Biomass Drum Sieve Compost Roller ScreeningHigh Capacity Wood Chip Rotary Shaker for Biomass Drum Sieve Compost Roller Screening

Product Description

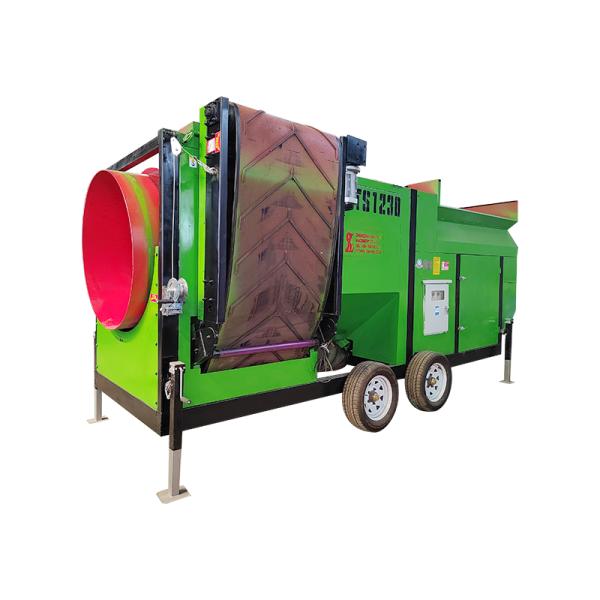

The MTS1230 compost roller trommel screen machine is one of the best selling trommel screens in our factory. It can be used to screen compost, wood or cow, sheep manure, etc.

It including a 4kw electric type,screen area is 8.3m2,processing capacity is also 60m³/h per hour,product size is 5400*2100*2700mm. It has left and right conveyor belts and brushes.

working principle

The working principle of the trommel screen is that after the material enters the trommel screen from the feed hopper, under the action of power, the material enters the trommel screen and is screened into materials of specific particle size. The screened material is transported out by the side belt conveyor.

High Capacity Wood Chip Rotary Shaker for Biomass Drum Sieve Compost Roller Screening

High Capacity Wood Chip Rotary Shaker for Biomass Drum Sieve Compost Roller Screening

specifications

Model
MTS1230
Process material
compost, soil, top soil, wood or cow, sheep manure wood shipps, sawdust etc
Screen capacity
≤60m³
 Total power
11.4kw
Roller Diameter 1200mm
Drum length
 3000mm
screen area

8.3m2

 Weight 2900KG

Customer
High Capacity Wood Chip Rotary Shaker for Biomass Drum Sieve Compost Roller Screening
Company Information

High Capacity Wood Chip Rotary Shaker for Biomass Drum Sieve Compost Roller Screening

High Capacity Wood Chip Rotary Shaker for Biomass Drum Sieve Compost Roller Screening
