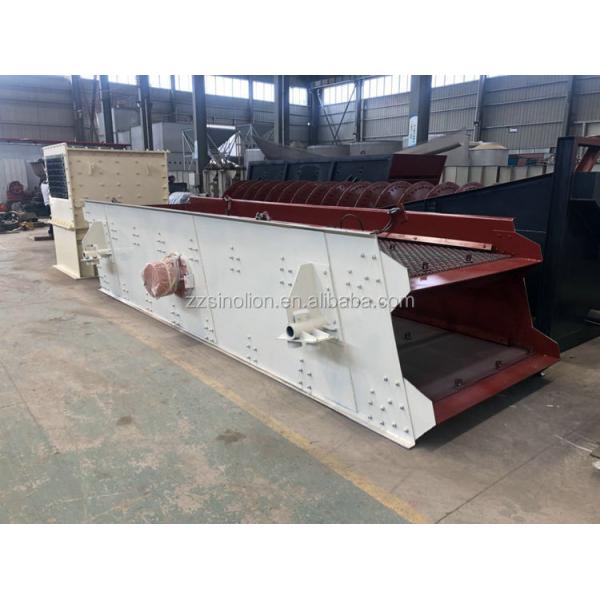

YK Series Sand Gravel Screening Plant Vibrating Screen Separator for Rotary Aggregate
YK Series Sand Gravel Screening Plant Vibrating Screen Separator for Rotary Aggregate
YK Series Sand Gravel Screening Plant Vibrating Screen Separator for Rotary Aggregate
YK Series Sand Gravel Screening Plant Vibrating Screen Separator for Rotary Aggregate
YK Series Sand Gravel Screening Plant Vibrating Screen Separator for Rotary Aggregate
YK Series Sand Gravel Screening Plant Vibrating Screen Separator for Rotary Aggregate
YK Series Sand Gravel Screening Plant Vibrating Screen Separator for Rotary Aggregate
YK Series Sand Gravel Screening Plant Vibrating Screen Separator for Rotary Aggregate
YK Series Sand Gravel Screening Plant Vibrating Screen Separator for Rotary Aggregate
YK Series Sand Gravel Screening Plant Vibrating Screen Separator for Rotary Aggregate
YK Series Sand Gravel Screening Plant Vibrating Screen Separator for Rotary Aggregate
YK Series Sand Gravel Screening Plant Vibrating Screen Separator for Rotary Aggregate
Specifications
Applicable Industries :
Energy & Mining
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
Gearbox, Motor
Condition :
New
Type :
Circular
Application :
Ore, stone, sand, glass, mulch, organics, topsoil, bark
Place of Origin :
China
Brand Name :
Sinolion
Voltage :
380V/415V/440V( as client request)
Dimension(L*W*H) :
As per different model
Weight :
1400 KG
Warranty :
18 month excluding spare parts
Model :
YK series
Installation :
supply manual to guide user
Capacity :
10-700 tons per hour
Feeding size :
less than 300mm
Discharge size :
4-80mm
Screen deck number :
1-5 layers
Product name :
rotary sand gravel screening plant
Color :
yellow, white, red, blue, gray( or as client request)
Price :
$3,500.00/sets >=1 sets
MOQ :
1 unit
Description
Product Description

YK Series Circular Vibrating Screen is developed by adsorbing German technology and circular vibrating screen is suitable for screening different sizes of stones. It is widely used in mining, coal dressing, ore dressing, building material, electric power and chemical industries.

YK Series Sand Gravel Screening Plant Vibrating Screen Separator for Rotary Aggregate

Rotary sand gravel screening plant specifications:

Model screen deck installation slope(°) screen size(mm) feeding size(mm)

capacity

(t/h)

motor power

(kw)

weight

(kg)
YK1230 1 15 4-50 ≤300 10-75 5.5 1468
2YK1230 2 15 4-50 ≤300 13-78 5.5 2253
3YK1230 2 15 4-50 ≤300 15-80 7.5 2978
4YK1230 3 15 4-50 ≤300 17-90 7.5 3982
YK1235 1 15 4-50 ≤300 20-150 5.5 1729
2YK1235 2 15 4-50 ≤300 20-150 5.5 2474
3YK1235 2 15 4-50 ≤300 22-150 7.5 3158
4YK1235 4 15 4-50 ≤300 22-150 7.5 4160
2YK1545 2 20 5-50 ≤300 22-150 11 5308
3YK1545 3 20 5-50 ≤300 50-180 15 5915
4YK1545 4 20 5-50 ≤300 50-180 15 7126
2YK1554 2 20 5-50 ≤300 50-200 15 5284
3YK1554 3 20 5-50 ≤300 56-200 15 6186
4YK1554 4 20 5-50 ≤300 56-250 18.5 7284
2YK1854 2 20 5-80 ≤300 56-300 18.5 5826
3YK1854 3 20 5-80 ≤300 60-400 18.5 7368
4YK1854 4 20 5-80 ≤300 80-400 22 8281
2YK1860 2 20 5-80 ≤300 60-400 22 6195
3YK1860 3 20 5-80 ≤300 80-400 22 7613
4YK1860 4 20 5-80 ≤300 90-500 30 8650
2YK2160 2 20 5-80 ≤300 100-720 22 6856
3YK2160 3 20 5-80 ≤300 100-720 30 9112
4YK2160 4 20 5-80 ≤300 100-720 30 10405

YK Series Sand Gravel Screening Plant Vibrating Screen Separator for Rotary Aggregate

Introduction of rotary sand gravel screening plant:
Packaging & Shipping

YK Series Sand Gravel Screening Plant Vibrating Screen Separator for Rotary Aggregate

Case

YK Series Sand Gravel Screening Plant Vibrating Screen Separator for Rotary Aggregate

Our Services

YK Series Sand Gravel Screening Plant Vibrating Screen Separator for Rotary Aggregate

Company Information

YK Series Sand Gravel Screening Plant Vibrating Screen Separator for Rotary AggregateYK Series Sand Gravel Screening Plant Vibrating Screen Separator for Rotary AggregateYK Series Sand Gravel Screening Plant Vibrating Screen Separator for Rotary AggregateYK Series Sand Gravel Screening Plant Vibrating Screen Separator for Rotary AggregateYK Series Sand Gravel Screening Plant Vibrating Screen Separator for Rotary Aggregate

FAQ

Question 1: What’s the delivery time after I pay the deposit ?

Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.

Question 2: Is mineral samples analysis available?

Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.

Question 3: Do you have client in my country?

Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan, Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc

Question 4: How long of your machine quality guarantee terms ?

Answer: Quality guarantee time is one year(wearing parts excluded).
