380v/415v/440v Voltage Rotary Drum Sand Sieving Machine for Mine Stone Screening
380v/415v/440v Voltage Rotary Drum Sand Sieving Machine for Mine Stone Screening
380v/415v/440v Voltage Rotary Drum Sand Sieving Machine for Mine Stone Screening
380v/415v/440v Voltage Rotary Drum Sand Sieving Machine for Mine Stone Screening
380v/415v/440v Voltage Rotary Drum Sand Sieving Machine for Mine Stone Screening
380v/415v/440v Voltage Rotary Drum Sand Sieving Machine for Mine Stone Screening
380v/415v/440v Voltage Rotary Drum Sand Sieving Machine for Mine Stone Screening
380v/415v/440v Voltage Rotary Drum Sand Sieving Machine for Mine Stone Screening
380v/415v/440v Voltage Rotary Drum Sand Sieving Machine for Mine Stone Screening
380v/415v/440v Voltage Rotary Drum Sand Sieving Machine for Mine Stone Screening
380v/415v/440v Voltage Rotary Drum Sand Sieving Machine for Mine Stone Screening
380v/415v/440v Voltage Rotary Drum Sand Sieving Machine for Mine Stone Screening
Specifications
Applicable Industries :
Energy & Mining
Showroom Location :
Canada, Turkey, United Kingdom, United States, Brazil, Mexico, Russia, Kenya, Sri Lanka, Nigeria
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Motor, Pump
Condition :
New
Type :
Circular
Application :
Ore, coal, coke, mulch, organics, bark, MSW, building waste
Place of Origin :
Henan, China
Brand Name :
sinolion
Voltage :
380v/415v/440v
Dimension(L*W*H) :
depends on models
Weight :
2000 KG
Warranty :
1 Year
Power :
3-45kw
Screen material :
steel bar, steel plate punch hole, steel wire woven, stainless steel
Installation :
Supply manual to guide user
Capacity :
50-500t/h
Feeding size :
less than 300mm
Discharge size :
as request
Color :
yellow, white, red, blue, gray( or as client request)
Product name :
rotary drum sand sieving machine / mine stone screening machine
Keyword :
mine stone screening machine
Price :
$2,000.00/sets >=1 sets
MOQ :
1 unit
Description
Product Description

Rotary sand drum sieving price

Sand drum sieving machine is positioned at the beginning of the equipment line, replacing the need for multiple pieces of equipment. All our trommel screens are engineered with simple, energy efficient design that utilizes gravity and centrifugal force to reduce maintenance and separate different material sizes from the waste stream.

This rotary drum sand sieving provides a simple, efficient and economical solution to the screening of various raw materials, at the same time optimizing the follow-up process steps. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.

Sinolion offers a wide range of sizes and capacities, custom built one at a time and tailored to the needs of individual customers. Built for heavy duty applications they're designed to provide years of trouble-free separation. Sinolion trommel Screens provide precise classification of a wide range of material, with multiple classifications available from one unit.


The sand separator machine is a special screening equipment developed by our company for power plants, coking plants, building materials, metallurgy, chemical industry, mining and other industries. It overcomes the problem of screen blocking of various vibrating screens when screening wet materials. Increased production and reliability of the screening system. It is suitable for screening materials of various properties, as well as moist and easy-clogging materials such as coal, coal gangue, coke raw lime, etc. The maximum product under the sieve is 100mm, the middle is 10-50mm, and the finest is up to 3mm. The product is well received by the vast majority of users.


380v/415v/440v Voltage Rotary Drum Sand Sieving Machine for Mine Stone Screening

Characteristics of rotary drum sand sieving machine:
1. Adopting the principle of rolling conveying, the friction coefficient is small, the wear is light, and the mesh hole is not
easy to block.
2. The roller support adopts the integral through-shaft structure, which runs smoothly, does not vibrate, and has low noise.
3. The internal drum screen accessories adopt split design, the structure is simple, and the replacement and repair are quick and convenient.
4. The drum body adopts an effective full sealing structure, which does not dust or pollute.
5. Safe and reliable operation, adopting deceleration transmission, high transmission efficiency, low power distribution, low energy consumption and obvious energy saving effect.
6. Different screen materials can be used according to customer requirements, mesh size, high screening efficiency, long service life and low maintenance cost.

Technical parameters of sand drum sieve:
Model
Capacity
(t/h)
Power
(kw)
Diameter
(mm)
Length
(mm)
Discharge
(mm)
Input
(mm)
Dimension
(mm)
GTS1015
50
3
1000
1500
0-100
≤300
2600×1400×1700
GTS1020
100
4
1000
2000
0-100
≤300
3390×1400×2140
GTS1225
160
5.5
1200
2500
0-100
≤300
4146×1600×2680
GTS1530
250
7.5
1500
3000
0-100
≤300
4460×1900×2820
GTS1545
350
11
1500
4500
0-100
≤400
5960×1900×3080
GTS1848
450
15
1800
4800
0-100
≤400
6500×2350×4000
GTS2055
600
22
2000
5500
0-100
≤400
7500×2550×4800
GTS2265
800
30
2200
6500
0-100
≤400
8500×2750×5000
380v/415v/440v Voltage Rotary Drum Sand Sieving Machine for Mine Stone Screening
380v/415v/440v Voltage Rotary Drum Sand Sieving Machine for Mine Stone Screening
380v/415v/440v Voltage Rotary Drum Sand Sieving Machine for Mine Stone Screening
380v/415v/440v Voltage Rotary Drum Sand Sieving Machine for Mine Stone Screening

Main Features of sand trommel sieving machine:

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

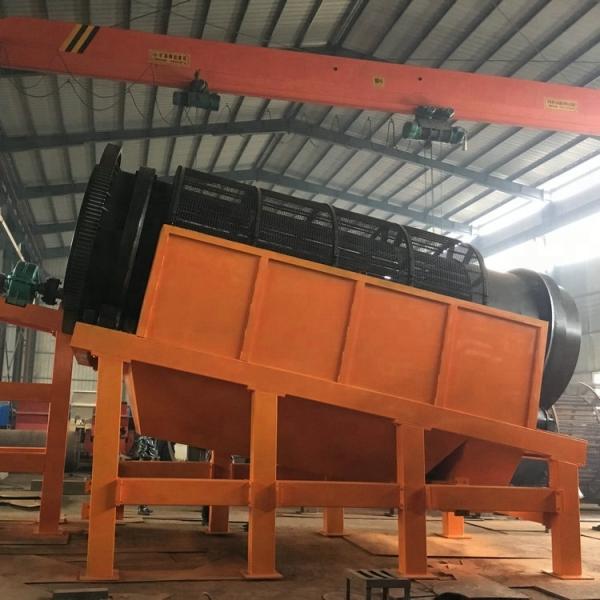

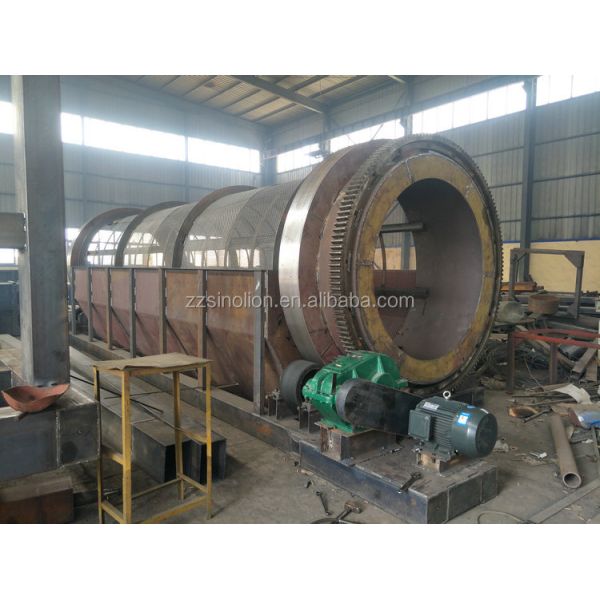

Detailed Images

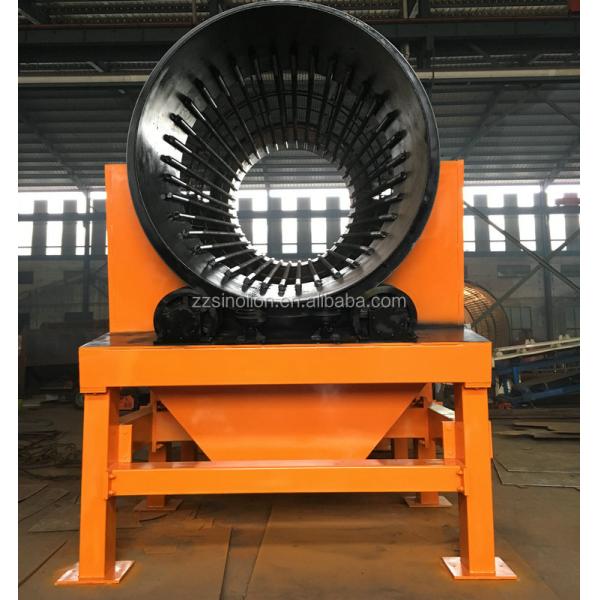

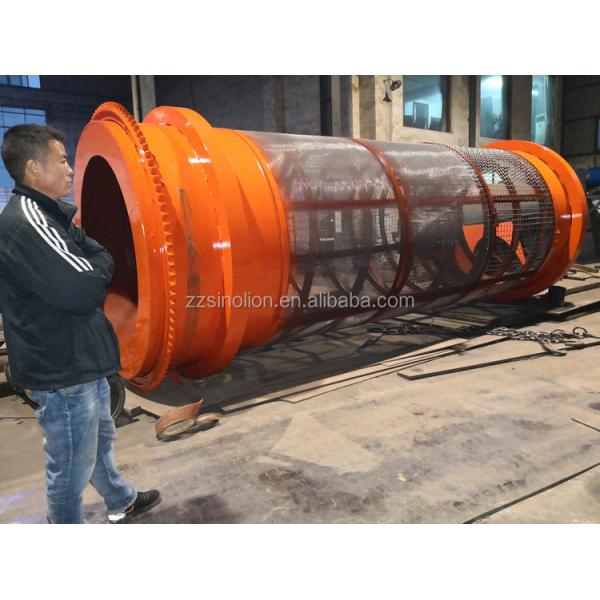

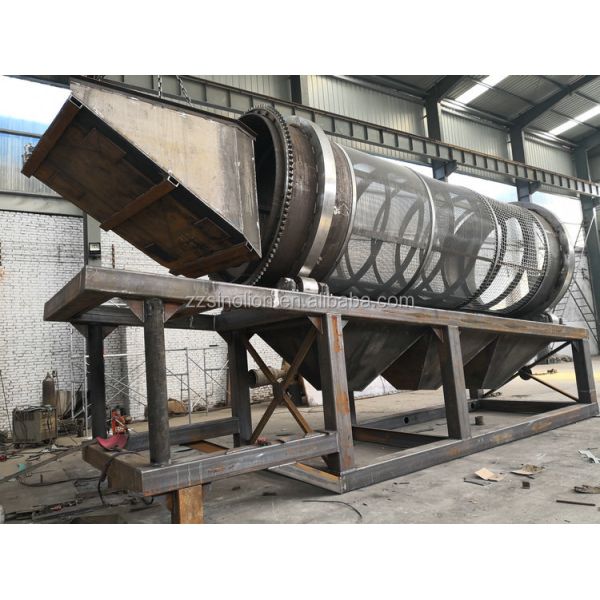

380v/415v/440v Voltage Rotary Drum Sand Sieving Machine for Mine Stone Screening
380v/415v/440v Voltage Rotary Drum Sand Sieving Machine for Mine Stone Screening

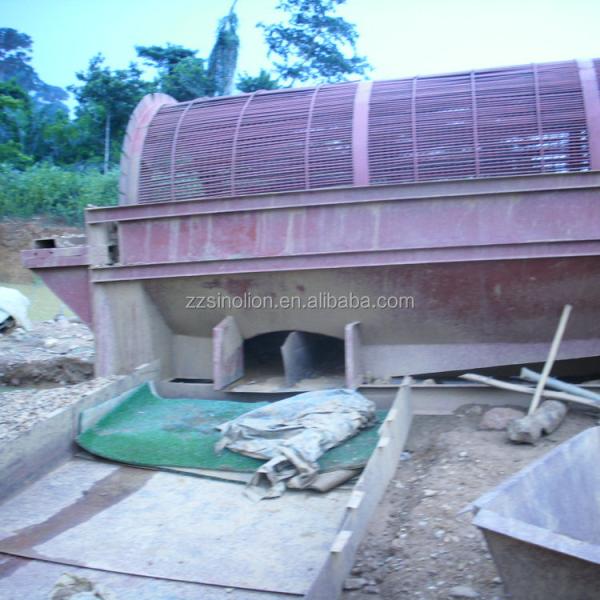

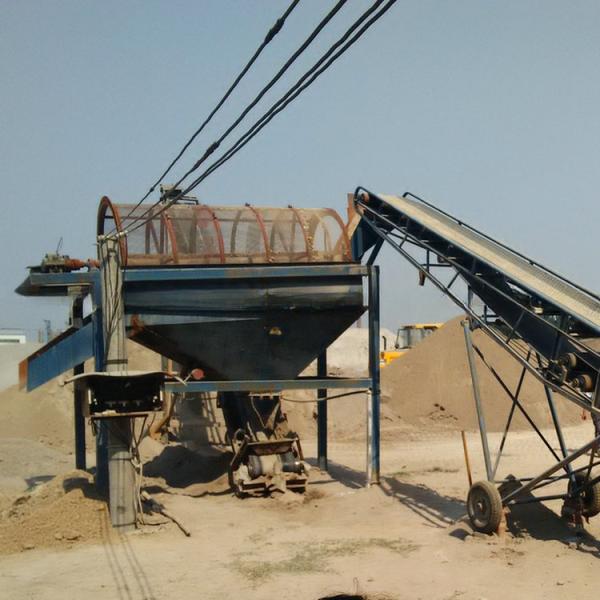

Case
380v/415v/440v Voltage Rotary Drum Sand Sieving Machine for Mine Stone Screening
380v/415v/440v Voltage Rotary Drum Sand Sieving Machine for Mine Stone Screening
380v/415v/440v Voltage Rotary Drum Sand Sieving Machine for Mine Stone Screening
380v/415v/440v Voltage Rotary Drum Sand Sieving Machine for Mine Stone Screening
Certifications
380v/415v/440v Voltage Rotary Drum Sand Sieving Machine for Mine Stone Screening
Our Service
380v/415v/440v Voltage Rotary Drum Sand Sieving Machine for Mine Stone Screening

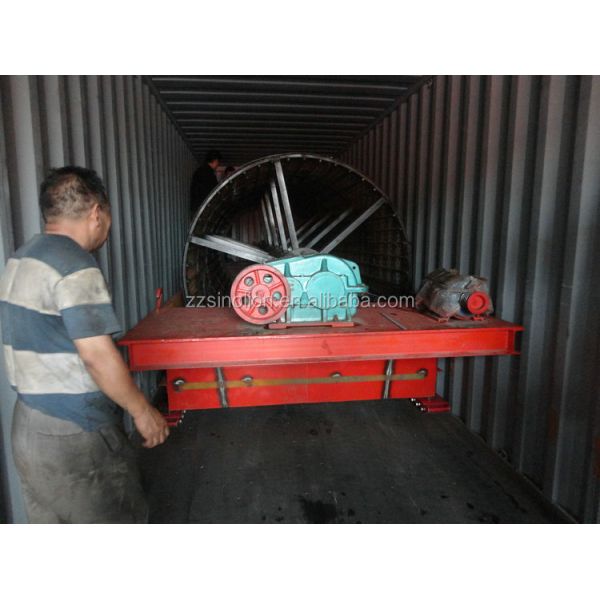

Packing & Delivery
380v/415v/440v Voltage Rotary Drum Sand Sieving Machine for Mine Stone Screening
380v/415v/440v Voltage Rotary Drum Sand Sieving Machine for Mine Stone Screening
380v/415v/440v Voltage Rotary Drum Sand Sieving Machine for Mine Stone Screening
Packaging
Size
Depends on models
Weight
Depends on models



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
