Specifications
Applicable Industries :
Energy & Mining
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
Motor
Condition :
New
Type :
LINEAR
Application :
Ore, glass granule, powder, chemical, quartz sand, silica sand
Place of Origin :
Henan, China
Brand Name :
Sinolion
Voltage :
380V/415V/440V
Dimension(L*W*H) :
As per different model
Weight :
KG
Warranty :
2 years
Installation :
supply manual to guide user
Capacity :
1-28 tons per hour
Feeding size :
less than 5mm
Discharge size :
4-80mm
Screen deck number :
1-5 layers
Mesh material :
manganese wire woven or stainless steel wire woven
Product name :
vibrating screen
Color :
yellow, white, red, blue, gray( or as client request)
Price :
$500.00/sets >=1 sets
MOQ :
1 unit
Description
Product Description

Introduction of Linear Vibrating Screen:

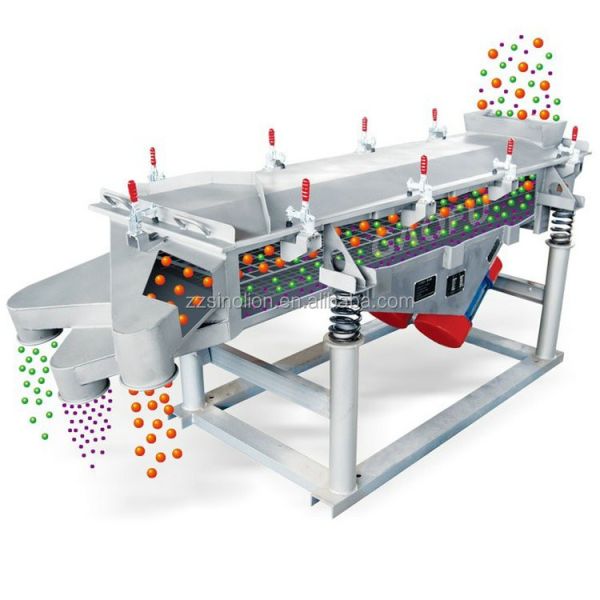

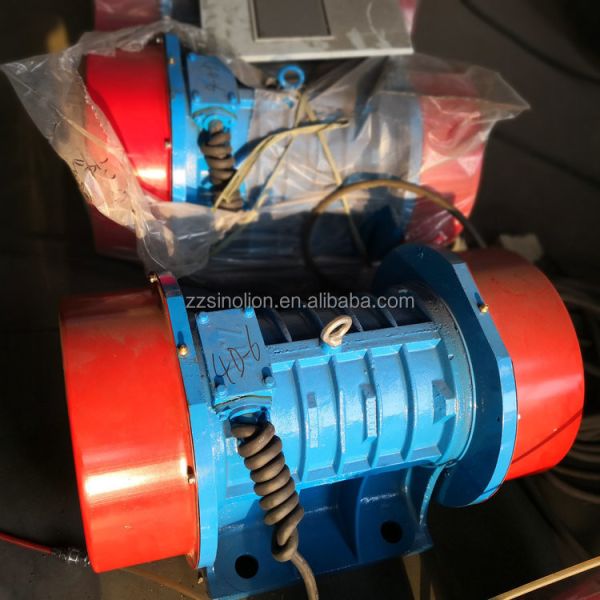

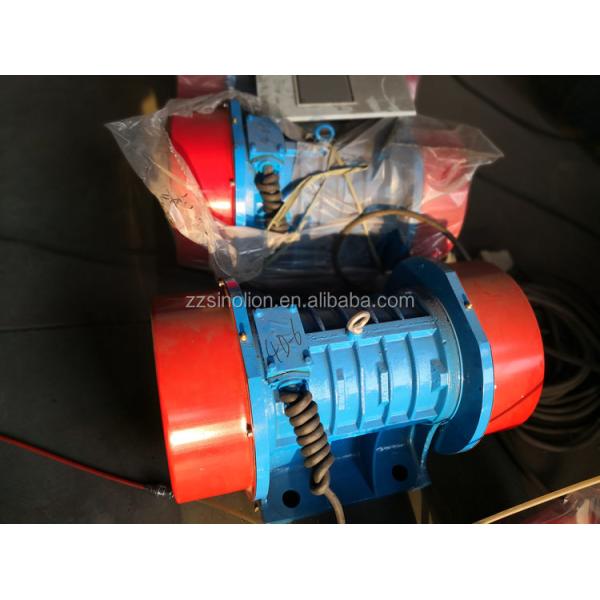

ZDS series linear vibrating screen equips double vibrating motors, which rotate reversely and synchronously. Thus, the excited force geneated by the eccentric block is united in the direction perpendicular to the motor axis while counteracted in the direction parallel to the motor axis, so that the movement trajectory is linear. There is an angle of inclination between two screen decks. Under the function of resultant force generated by exciter force and gravity of materials, these materials are throwed up, leap forward straight ahead along the screen deck, through which the purpose of filter and classification is achieved.

Linear vibrating screen technical parameters:

Model

Mesh area

(W x L in mm)

Feed size

(mm)

 No. of layers

inclination

(degree)

Amplitude

(mm)

Motor

(KW)
ZDS-512 500x1200 0.074-10 1 to 6 0 to 7 2 to 4 2 x (0.4-0.75)
ZDS-520 500x2000 0.074-10 1 to 6 0 to 7 2 to 4 2 x (0.4-0.75)
ZDS-815 800x1500 0.074-10 1 to 6 0 to 7 2 to 4 2 x (0.4-0.75)
ZDS-820 800x2000 0.074-10 1 to 6 0 to 7 2 to 4 2 x (0.4-0.75)
ZDS-1020 1000x2000 0.074-10 1 to 6 0 to 7 2 to 4 2 x (0.4-0.75)
ZDS-1030 1000x3000 0.074-10 1 to 6 0 to 7 2 to 4 2 x (0.4-1.1)
ZDS-1224 1200x2400 0.074-10 1 to 6 0 to 7 2 to 4 2 x (1.1-1.5)
ZDS-1230 1200x3000 0.074-10 1 to 6 0 to 7 2 to 4 2 x (1.1-1.5)
ZDS-1530 1500x3000 0.074-10 1 to 6 0 to 7 2 to 4 2 x (1.1-2.2)
ZDS-1535 1500x3500 0.074-10 1 to 6 0 to 7 2 to 4 2 x (1.1-2.2)
ZDS-1560 1500x6000 0.074-10 1 to 6 0 to 7 2 to 4 2 x (2.2-3.7)
ZDS-1845 1800x4500 0.074-10 1 to 6 0 to 7 2 to 4 2 x (2.2-3.7)
ZDS-2050 2000x5000 0.074-10 1 to 6 0 to 7 2 to 4 2 x (2.2-3.7)
ZDS-2260 2200x6000 0.074-10 1 to 6 0 to 7 2 to 4 2 x (2.2-3.7)

Rotex Linear Vibrating Screen Machine for Silica Sand Powder As Per Different Model

Rotex Linear Vibrating Screen Machine for Silica Sand Powder As Per Different ModelRotex Linear Vibrating Screen Machine for Silica Sand Powder As Per Different Model

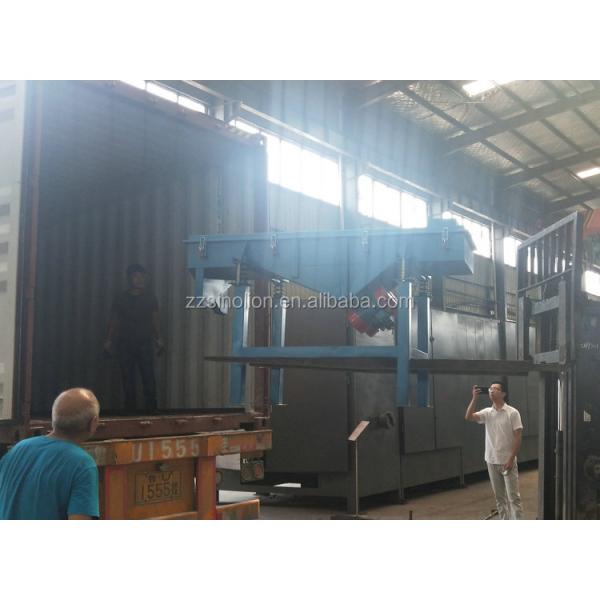

Packaging & Shipping

Rotex Linear Vibrating Screen Machine for Silica Sand Powder As Per Different Model

Our Services

1. Pre-sale service:

1) Sinolion will provide production line design, quotation sheet, working sites video, machinery photos, sample testing(gold ore, tin ore , iron ore, tungsten processing in laboratory).

2) Welcome to visit us at any time, we will pick you up.

2. Sale service:

1) Keep clients updated when our company gets advance payment.

2) Confirm production details with clients.

3) Take photos and send all pictures to customers during production.

4) Inspection and testing the product before delivery;

5) Clients are welcome to inspect the equipment when the equipment are ready to delivery.

6) logistics service if needed.

3. After Sale service:

1) Provide foundation drawing to the clients for installation.

2) Besides, our engineers are available to help with installation and workers training.

3) Repairing and maintenance if any problem during the warranty.

4) Spare parts and wearing parts will be offered with production cost in 10 years.

Rotex Linear Vibrating Screen Machine for Silica Sand Powder As Per Different Model

Company Information

Rotex Linear Vibrating Screen Machine for Silica Sand Powder As Per Different ModelRotex Linear Vibrating Screen Machine for Silica Sand Powder As Per Different Model

FAQ

Question 1: What’s the delivery time after I pay the deposit ?

Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.

Question 2: Is mineral samples analysis available?

Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.

Question 3: Do you have client in my country?

Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan, Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc

Question 4: How long of your machine quality guarantee terms ?

Answer: Quality guarantee time is one year(wearing parts excluded).
