Mobile Soil Trommel Screen Soil Washing Plant 98% Efficiency for Energy Mining Market
Mobile Soil Trommel Screen Soil Washing Plant 98% Efficiency for Energy Mining Market
Mobile Soil Trommel Screen Soil Washing Plant 98% Efficiency for Energy Mining Market
Mobile Soil Trommel Screen Soil Washing Plant 98% Efficiency for Energy Mining Market
Mobile Soil Trommel Screen Soil Washing Plant 98% Efficiency for Energy Mining Market
Mobile Soil Trommel Screen Soil Washing Plant 98% Efficiency for Energy Mining Market
Mobile Soil Trommel Screen Soil Washing Plant 98% Efficiency for Energy Mining Market
Mobile Soil Trommel Screen Soil Washing Plant 98% Efficiency for Energy Mining Market
Mobile Soil Trommel Screen Soil Washing Plant 98% Efficiency for Energy Mining Market
Mobile Soil Trommel Screen Soil Washing Plant 98% Efficiency for Energy Mining Market
Mobile Soil Trommel Screen Soil Washing Plant 98% Efficiency for Energy Mining Market
Mobile Soil Trommel Screen Soil Washing Plant 98% Efficiency for Energy Mining Market
Specifications
Applicable Industries :
Energy & Mining
Showroom Location :
None
Condition :
New
Type :
Gravity Separator
Production Capacity :
98%
Place of Origin :
China
Brand Name :
Sinolion
Voltage :
380V/415V/440V( as client request)
Dimension(L*W*H) :
As per different model
Weight :
2200 KG, 6.5-10T
Warranty :
24 months excluding spare parts
Marketing Type :
New Product 2021
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor
Key Selling Points :
mobile gold washing trommel
Product name :
Mobile soil trommel screen soil washing plant for sale
Model :
charcoal rotary screen
Power :
5.5KW, 7.5KW, 11KW
Dimension :
depends on model
Application :
alluvial gold washing, diamond, rock, soil, river gold
Capacity :
30-150 tons per hour
Feeding size :
less than 300mm
Discharge size :
less than 6mm
Certification :
ISO9001:2008
Price :
$4,100.00 - $28,750.00/sets
MOQ :
1 unit
Description

Mobile soil trommel screen soil washing plant for sale

Product Description

Mobile Soil Trommel Screen Soil Washing Plant 98% Efficiency for Energy Mining Market

This wheeled mobile trommel screen systems’ high flexibility and the comprehensive range of products, from the smallest screening machine with less than 1.8 tons to the largest with up to 20 tons, enable the company to serve customers from the gardening, landscaping, recycling, timber, civil engineering, glass and even gravel pits and quarries. This wheeled mobile machine are not only used in the processing of earth materials, but also in more specific fields of application, such as the extraction of recyclable fractions of plastics, foils and wood chips and in the processing of compost, milled material, building rubble, stones, gravel, as well as glass or even in the recycling of sandbags.

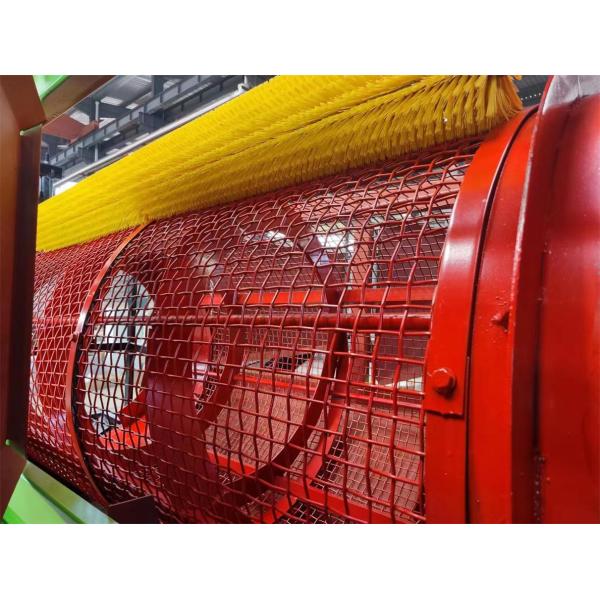

This wheeled mobile machine can neatly screen e.g. compost, soil, sand, slag, gravel,wood chips, refuse, stones as well as mineral waste from 2 – 80 mm. The material is filled into the belt feeder, which can hold up to 5.5 m³. The material is then fed into the double tromel. It consists of a steel, robust inner cage and an outer cage that can be equipped with wire screens of various mesh sizes. What the inner cage does not retain is captured by the outer cage, the fine fraction is discharged via a conveyor belt. Once a mountain of work has been eliminated, the can be towed to the next location.

Mobile Soil Trommel Screen Soil Washing Plant 98% Efficiency for Energy Mining Market

Mobile Soil Trommel Screen Soil Washing Plant 98% Efficiency for Energy Mining Market

Mobile Soil Trommel Screen Soil Washing Plant 98% Efficiency for Energy Mining Market

technical parameters


Model Trommeldiameter
(mm)		 Trommel length
(mm)		 Capacity
(m3/h)		 motor power(KW) Weight
(Kg)		 Dimensions
(L*W*H)
MTS0818 800 1800 ≤15 2.4 650 3.15*1.1*1.65
MTS1022 1000 2200 ≤30 8.2 2750 4.3*1.9*2.45
MTS1230 1200 3000 ≤60 10.6 3210 5.4*2.1*2.7
MTS1550 1500 5000 ≤90 20 7900 9.4*2.2*2.9
Mobile Soil Trommel Screen Soil Washing Plant 98% Efficiency for Energy Mining MarketMobile Soil Trommel Screen Soil Washing Plant 98% Efficiency for Energy Mining Market

The trommel screen is a heavy-duty, mobile drum screen machine built for small to medium-sized topsoil and compost operations.

» Horizontal drum delivers consistent output.

» Material rides on screening surface for extremely effective separation.

Mobile Soil Trommel Screen Soil Washing Plant 98% Efficiency for Energy Mining MarketMobile Soil Trommel Screen Soil Washing Plant 98% Efficiency for Energy Mining MarketMobile Soil Trommel Screen Soil Washing Plant 98% Efficiency for Energy Mining Market
