6.5-10T Small Soil Screener for Precise Compost and Organic Material Sieving
6.5-10T Small Soil Screener for Precise Compost and Organic Material Sieving
6.5-10T Small Soil Screener for Precise Compost and Organic Material Sieving
6.5-10T Small Soil Screener for Precise Compost and Organic Material Sieving
6.5-10T Small Soil Screener for Precise Compost and Organic Material Sieving
6.5-10T Small Soil Screener for Precise Compost and Organic Material Sieving
6.5-10T Small Soil Screener for Precise Compost and Organic Material Sieving
6.5-10T Small Soil Screener for Precise Compost and Organic Material Sieving
6.5-10T Small Soil Screener for Precise Compost and Organic Material Sieving
6.5-10T Small Soil Screener for Precise Compost and Organic Material Sieving
6.5-10T Small Soil Screener for Precise Compost and Organic Material Sieving
6.5-10T Small Soil Screener for Precise Compost and Organic Material Sieving
Specifications
Applicable Industries :
Food & Beverage Shops
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Gear, Pump
Condition :
New
Type :
Circular
Application :
Ore, alluvial gold washing, diamond, rock, soil, river gold
Place of Origin :
Henan, China
Brand Name :
sinolion
Voltage :
380V/415V/440V( as client request)
Dimension(L*W*H) :
As per different model
Weight :
2200 KG, 6.5-10T
Warranty :
1 Year
Product name :
Small soil screener Use for compost organic soil sieving
Model :
waste sorting and recycling
Power :
5.5KW, 7.5KW, 11KW
Dimension :
depends on model
Capacity :
30-150 tons per hour
Feeding size :
less than 300mm
Discharge size :
less than 6mm
Packaging Details :
All products will be processed to be rustproof and moisture proof before delivery.
20GP container or 40GP container
Equipment is packed with plastic wrap or steel case, depends on machine weight.
Motor is packed with steel case or wooden case.
Port :
Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( as client request)
Supply Ability :
50 Set/Sets per Month gold trommel screening plant
Price :
$4,100.00 - $28,750.00/sets
MOQ :
1 unit
Description

Small soil screener Use for compost organic soil sieving

Product Description

Garbage trommel screen is positioned at the beginning of the equipment line, replacing the need for multiple pieces of equipment. All our trommel screens are engineered with simple, energy efficient design that utilizes gravity and centrifugal force to reduce maintenance and separate different material sizes from the waste stream.

6.5-10T Small Soil Screener for Precise Compost and Organic Material Sieving

Shaftless trommel screen working principle:

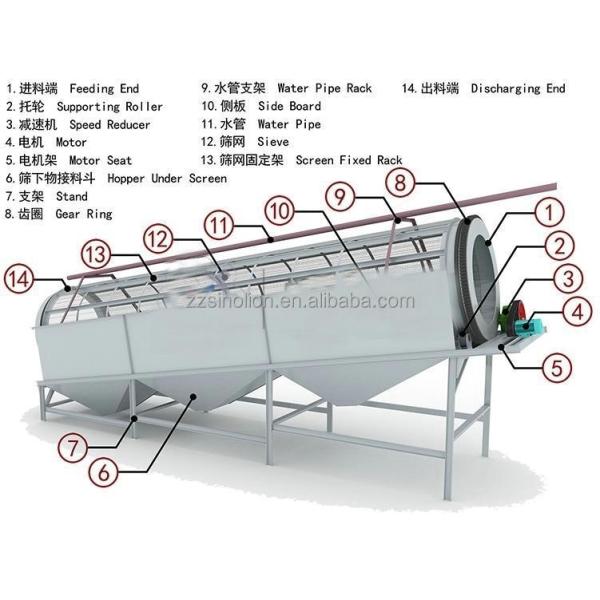

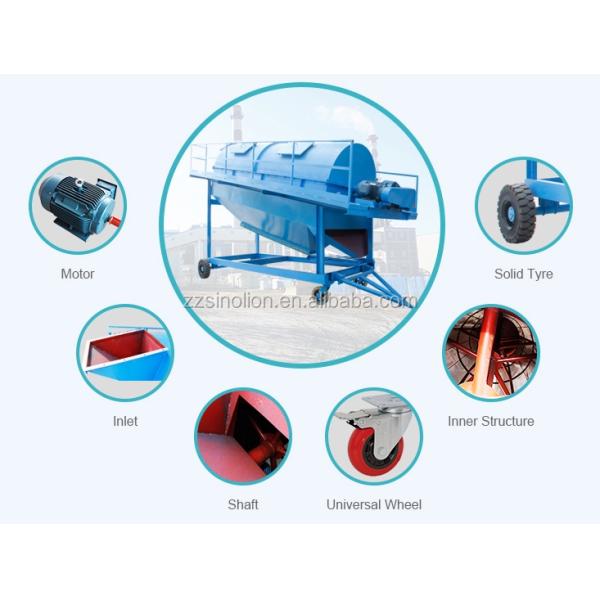

Due to the turning and rolling of the material in the screen drum, the material stuck in the screen hole can be ejected to prevent the screen hole from being clogged. GTS series shaftless trommel screen machine mainly consists of motor, gearbox, screen drum, frame, sealing cover, inlet and outlet. The screen drum is mounted obliquely on the frame. The motor is coupled to the drum unit via a coupling through a reducer to drive the screen drum unit to rotate about its axis. After the material enters the screen drum, due to the tilting and rotation of drum screen, the material on the screen surface is turned over and rolled, so that the qualified material (the product under the sieve) is discharged through the screen, and the unqualified material (the product on the sieve) ) is discharged through the end of the screen drum.

6.5-10T Small Soil Screener for Precise Compost and Organic Material Sieving

6.5-10T Small Soil Screener for Precise Compost and Organic Material Sieving

Working Principle

1. lowering initial investment cost (comparative price)

2. saving operational cost (outstanding durability and simple mechanical structure)

3. reducing any additional cost in the future (high productivity & mobility)

4. GTS series can precisely select gold dust in highest yield rate of 98%.

5. High gold dust gathering capability by long-time and non-stop operation

technical parameters

Model Capacity (t/h) Motor (kw) Drum size (mm) Feed Size (mm) Overall size (mm) Weight (KG)
GTS-1015 5-20 3 1000×1500 less than 200 mm 2600×1400×1700 2200
GTS-1020 10-30 4 1000×2000 less than 200 mm 3400×1400×2200 2800
GTS-1225 20-80 5.5 1200×2500 less than 200 mm 4200×1500×2680 4200
GTS-1530 30-100 7.5 1500×3000 less than 200 mm 4500×1900×2820 5100
GTS-1545 50-120 11 1500×4500 less than 200 mm 6000×1900×3080 6000
GTS-1848 80-150 15 1800×4800 less than 200 mm 6500×2350×4000 7500
GTS-2055 120-250 22 2000×5500 less than 200 mm 7500×2350×4800 9600
GTS-2265 200-350 30 2200×6500 less than 200 mm 8500×2750×5000 12800

6.5-10T Small Soil Screener for Precise Compost and Organic Material Sieving

6.5-10T Small Soil Screener for Precise Compost and Organic Material Sieving6.5-10T Small Soil Screener for Precise Compost and Organic Material Sieving

6.5-10T Small Soil Screener for Precise Compost and Organic Material Sieving

6.5-10T Small Soil Screener for Precise Compost and Organic Material Sieving

Packaging & Shipping

6.5-10T Small Soil Screener for Precise Compost and Organic Material Sieving

Case

6.5-10T Small Soil Screener for Precise Compost and Organic Material Sieving

Customer

6.5-10T Small Soil Screener for Precise Compost and Organic Material Sieving6.5-10T Small Soil Screener for Precise Compost and Organic Material Sieving

Company Information

6.5-10T Small Soil Screener for Precise Compost and Organic Material Sieving

6.5-10T Small Soil Screener for Precise Compost and Organic Material Sieving6.5-10T Small Soil Screener for Precise Compost and Organic Material Sieving6.5-10T Small Soil Screener for Precise Compost and Organic Material Sieving

6.5-10T Small Soil Screener for Precise Compost and Organic Material Sieving
