Specifications
Brand Name :
Sinolink
Model Number :
GS100
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD+340-480+SET
Payment Terms :
T/T
Supply Ability :
1000+SET+per month
Delivery Time :
30days
Packaging Details :
Plywood case 760*580*880mm 120kgs
Engine :
196cc 3.6kw
Chipping Capacity :
5-8CBM/hour
Max. Chipping Diameter :
100mm
Blade Size :
150mm X 52mmX6mm
Blade Number :
2pcs cut blades +1 pcs fixed blades
Roller Max RPM :
2200-2400rpm
Overall L*H*W :
870mm * 555mm * 850mm
Overall Weight :
120kgs
Load qty :
60PCS/20FT 180PCS/40FT
Accessories included :
Headset and glasses
Warranty :
1 year after delivery
Color :
Customized
Description

High Horsepower Gasoline Branch Crusher Wood Chipper Towable Petrol Wood Chipper Shredder For Garden

-GS100 wood chipper description

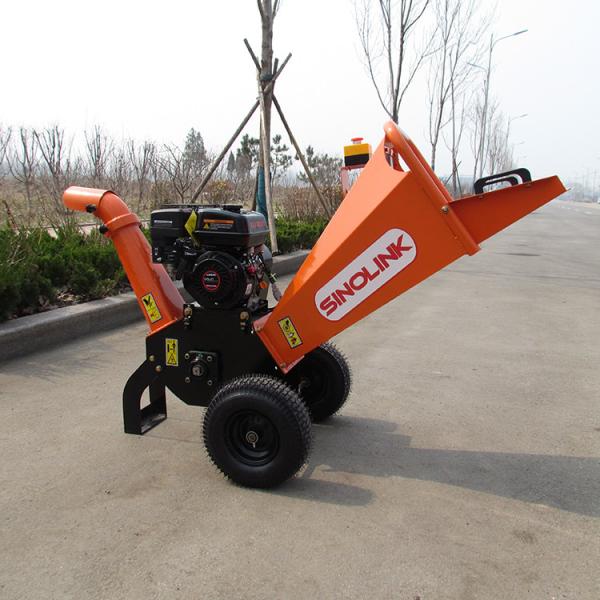

The SINOLINK GS100 Wood Chipper is perfect for chipping branches and shrubbery up to a diameter of 100 mm. The twin blade drum draws the material into the chipper self feeding to a certain degree. The in-feed hopper is nice and wide allowing whole branches to be fed in with minimal preparation. The in-feed hopper is hinged on one side making clearing blockages very easy. The engine is and 100% reliable Loncin G200 or Briggs & Stratton CR950 gasoline engine that boasts 6.5 HP and 9.50 ft./lbs. of torque. The material is fed into a slopped infeed bin and fed into the 9" diameter 30 lb. chipper drum that acts as a power feed assist system pulling the branches in at up to 35' per/min. Although the chipper weighs almost 200 pounds it is perfectly balanced and can be easily moved around the work site.

-GS100 selling points

Clutch. The clutch transmits torque by friction. When the load in the transmission exceeds the torque that can be transmitted by the friction, the friction plate of the clutch will automatically slip, thereby preventing transmission overload and protecting the engine. Therefore, the friction plate is a vital part of the clutch. Our friction plate is made of imported materials, with high friction coefficient, greater transmission torque and more wear resistance. The driving wheel of the clutch is the second important part besides the friction plate. Because the driving wheel carries the friction plate, the wall thickness of the driving wheel is required to be firm and thick.

-GS100 technical parameters

Engine Gasoline 196cc 3.6kw
Start Recoil Start
Chipping capacity 5-8CBM/hour
Max. Chipping diameter 100 mm
Blade No. 2 pieces
ATV tire 3.5-4
Warranty 1 year after delivery
Color As your required
20FT 60SET
40HQ 180SET

-GS100 appearance display

196cc Towable Wood Chipper Shredder Grinder High Horsepower Gasoline Branch196cc Towable Wood Chipper Shredder Grinder High Horsepower Gasoline Branch196cc Towable Wood Chipper Shredder Grinder High Horsepower Gasoline Branch196cc Towable Wood Chipper Shredder Grinder High Horsepower Gasoline Branch196cc Towable Wood Chipper Shredder Grinder High Horsepower Gasoline Branch
