Specifications
Brand Name :
Sinolink
Model Number :
GS100
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD+340-480+SET
Payment Terms :
T/T
Supply Ability :
1000+SET+per month
Delivery Time :
30days
Packaging Details :
Plywood case 760*580*880mm 120kgs
Engine :
196cc 3.6kw
Chipping Capacity :
5-8CBM/hour
Max. Chipping Diameter :
100mm
Blade Size :
150mm X 52mmX6mm
Blade Number :
2pcs cut blades +1 pcs fixed blades
Roller Max RPM :
2200-2400rpm
Overall L*H*W :
870mm * 555mm * 850mm
Overall Weight :
120kgs
Load qty :
60PCS/20FT 180PCS/40FT
Accessories included :
Headset and glasses
Warranty :
1 year after delivery
Color :
Customized
Description

OEM CE Certificate Forestry Machinery Firewood Processor 6.5HP Gasoline Wood Crusher Small Chipper Shredder​

-GS100 wood chipper description

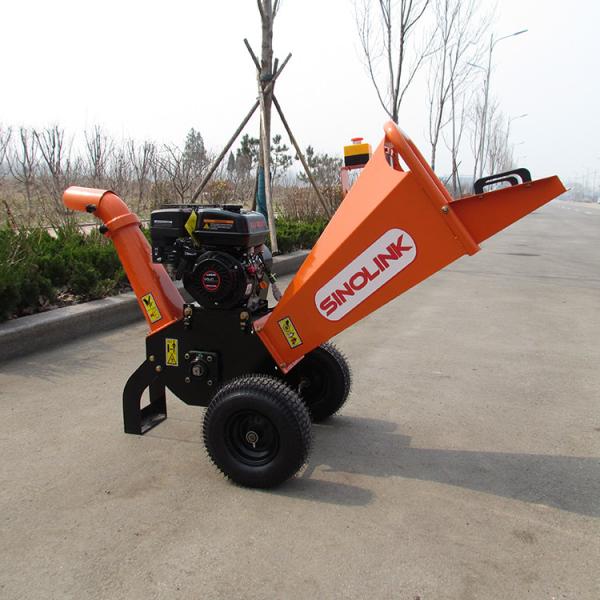

The SINOLINK GS100 Wood Chipper is perfect for chipping branches and shrubbery up to a diameter of 100 mm. The twin blade drum draws the material into the chipper self feeding to a certain degree. The in-feed hopper is nice and wide allowing whole branches to be fed in with minimal preparation. The in-feed hopper is hinged on one side making clearing blockages very easy. The engine is and 100% reliable Loncin G200 or Briggs & Stratton CR950 gasoline engine that boasts 6.5 HP and 9.50 ft./lbs. of torque. The material is fed into a slopped infeed bin and fed into the 9" diameter 30 lb. chipper drum that acts as a power feed assist system pulling the branches in at up to 35' per/min. Although the chipper weighs almost 200 pounds it is perfectly balanced and can be easily moved around the work site.

-GS100 selling points

Belts, belts are common vulnerable parts of wood chippers. The working life of ordinary neoprene belt is too short, so we upgrade ordinary neoprene belts to KEVLAR belts. KEVLAR is a new type of aramid fiber compatible material. This new type of material has high strength, good toughness, high temperature and wear resistance, and is widely used in the military field. We use KEVLAR as the wood chipper belt to greatly improve the reliability of the product. Therefore, the quality feedback rate generated by the belt is lower than thousandth.

-GS100 technical parameters

Engine Gasoline 196cc 3.6kw
Start Recoil Start
Chipping capacity 5-8CBM/hour
Max. Chipping diameter 100 mm
Blade No. 2 pieces
ATV tire 3.5-4
Warranty 1 year after delivery
Color As your required
20FT 60SET
40HQ 180SET

-GS100 appearance display

Portable Wood Chipper Machine Heavy Equipment Forestry Machinery 212cc chipper shredderPortable Wood Chipper Machine Heavy Equipment Forestry Machinery 212cc chipper shredderPortable Wood Chipper Machine Heavy Equipment Forestry Machinery 212cc chipper shredder

Portable Wood Chipper Machine Heavy Equipment Forestry Machinery 212cc chipper shredderPortable Wood Chipper Machine Heavy Equipment Forestry Machinery 212cc chipper shredder
