SINO KA600-1500mm Linear Glass Scales For Milling Boring Machine
SINO KA600-1500mm Linear Glass Scales For Milling Boring Machine
SINO KA600-1500mm Linear Glass Scales For Milling Boring Machine
SINO KA600-1500mm Linear Glass Scales For Milling Boring Machine
SINO KA600-1500mm Linear Glass Scales For Milling Boring Machine
SINO KA600-1500mm Linear Glass Scales For Milling Boring Machine
SINO KA600-1500mm Linear Glass Scales For Milling Boring Machine
SINO KA600-1500mm Linear Glass Scales For Milling Boring Machine
Specifications
Brand Name :
SINO
Model Number :
SINO KA600-1500mm Linear Glass Scales
Certification :
CE, RoHS
Place of Origin :
GUANGZHOU
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
3000 per month
Delivery Time :
5-8 days
Packaging Details :
Carton box
Item :
SINO KA600-1500mm Linear Glass
Model :
KA-600 series: 1000-3000mm
Usage :
Milling Boring Machine Lathe
Type :
Standard Optical Grating Linear Encoder
Resolution :
0.5/1/5um
Output Signal :
TTL or RS-422
Color :
Silver
Style :
Economic
Seal protection :
IP53
Operating temperature :
0℃-45℃
Description

SINO KA600-1500mm Linear Glass Scales Machine For Milling Boring Machine

KA-600 series linear encoder is the most commonly used standard model. It is specifically designed for large machine

Specification

Model KA-600 series
Travel length(mm) 1000-3000
Scaling distance 0.02mm(50 lines/mm)
Accuracy ±3µm,±5µm,±15µm/m (20±0.1℃)
Resolution(um) 0.5um/1um/5um
Reference Signal Every 50mm per length specification
Seal protection IP53
Moving speed

High-speed encoder 120 m/min (To be customized) Ordinary encoder 60m/min
Output signal Square wave TTL / RS422
Operating temperature 0℃-45℃
Storage temperature -20℃--80℃
Humidity 100% not condensed
Voltage 5V/24V

Notes:

If finding any smoke or smell from the reading head, please immediately cut off the power supply. As the encoder connects with the numerical display to form a precision measuring instrument, continued use in event of above phenomena might cause fire or EDM to the numerical display. Please contact Guangzhou SINO DRO Co., Ltd.or its dealer. Never try to repair by yourself.

Once the wire between numerical display and encoder is broken or damaged during use, it will cause error to the test data. The user shall take special care on this.

Never try to repair or refit the scale, as it might cause failure, trouble or damage.

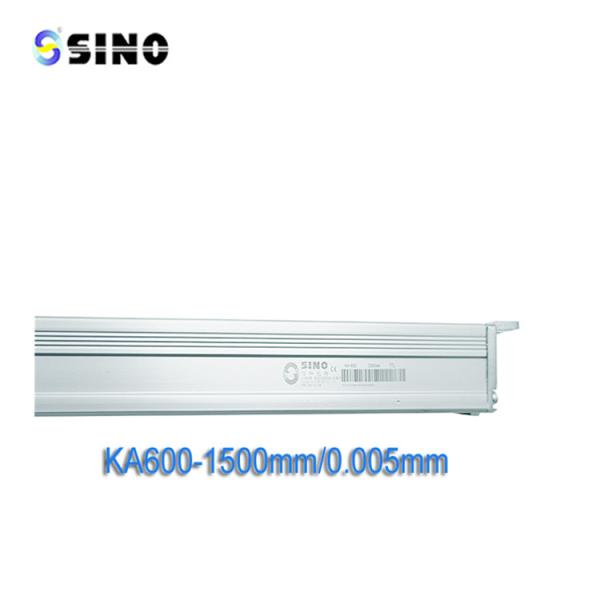

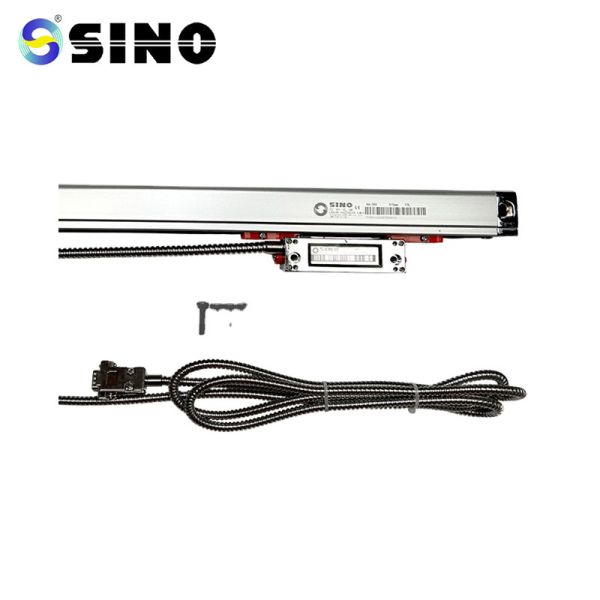

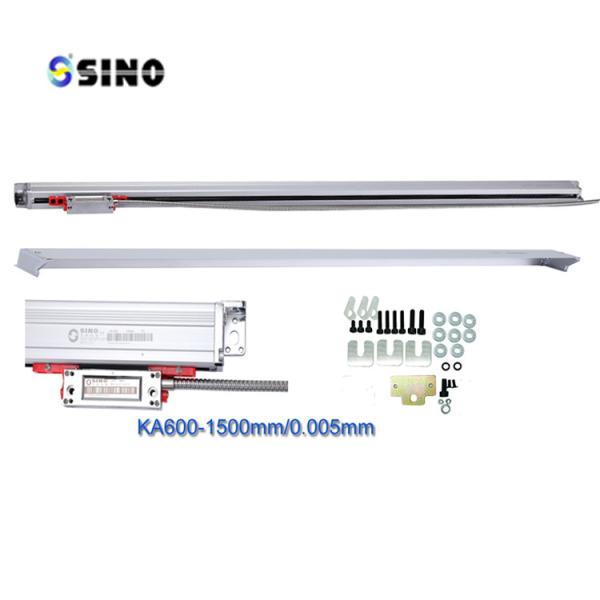

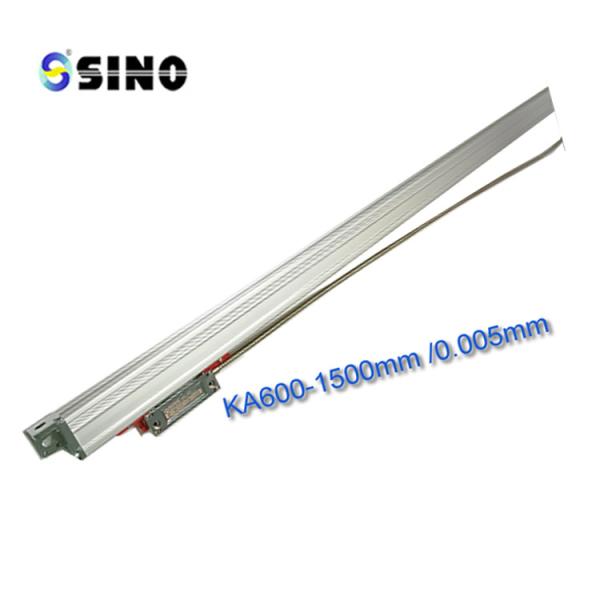

Product images

SINO KA600-1500mm Linear Glass Scales For Milling Boring MachineSINO KA600-1500mm Linear Glass Scales For Milling Boring MachineSINO KA600-1500mm Linear Glass Scales For Milling Boring MachineSINO KA600-1500mm Linear Glass Scales For Milling Boring Machine

All scales will be tested before delivery.

Each scale have its own test report:

SINO KA600-1500mm Linear Glass Scales For Milling Boring Machine
