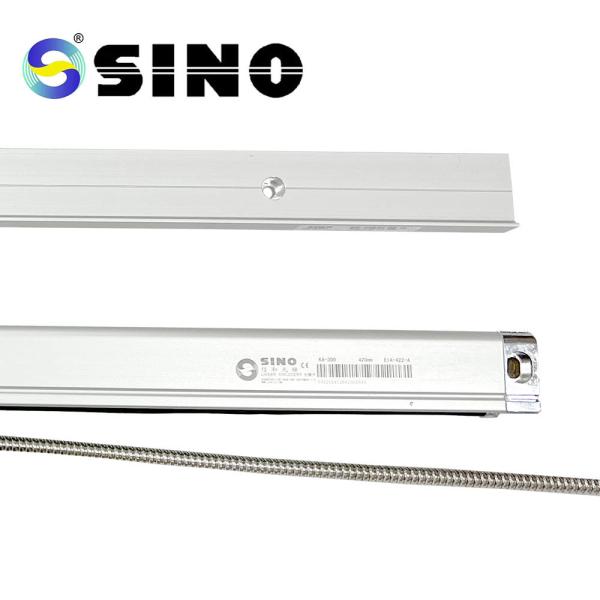

SINO Small Glass Linear Encoder 1 Micron Resolution For EDM Machine
SINO Small Glass Linear Encoder 1 Micron Resolution For EDM Machine
SINO Small Glass Linear Encoder 1 Micron Resolution For EDM Machine
SINO Small Glass Linear Encoder 1 Micron Resolution For EDM Machine
SINO Small Glass Linear Encoder 1 Micron Resolution For EDM Machine
SINO Small Glass Linear Encoder 1 Micron Resolution For EDM Machine
SINO Small Glass Linear Encoder 1 Micron Resolution For EDM Machine
SINO Small Glass Linear Encoder 1 Micron Resolution For EDM Machine
Specifications
Brand Name :
SINO
Model Number :
KA-300
Certification :
CE, RoHS
Place of Origin :
P.R.China
MOQ :
1 PC
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000 per month
Delivery Time :
5-8 days
Packaging Details :
Carton box
Item :
SINO RS422 5 Micron Resolution Linear Encoder Scale
Model :
KA Series EIA-422-A
Usage :
Metal Cutting Machine, Testing Equipment, EDM
Type :
Optical Grating Glass Linear Encoder
Resolution :
5μm / 1μm
Output Signal :
RS422 / EIA-422-A
System :
SINO DRO
Keyword :
RS422 Linear Scale Encoder
Description

SINO High Precision RS422 Aluminium Glass Linear Encoder 5 Micron Resolution Scale

All the SINO KA series scales could be chosen to be TTL or RS422/EIA-422-A signal, and 5, 1 or 0.5 micron resolution.

KA-300 model 5 micron scale with RS422 signal usually is for EMD machines.

The anti-jamming should be better that fir for this kinds of machines.

Product data sheet

Model KA-300
Travel length(mm) 70-1020 (50mm/Specification)
Scaling distance 0.02mm(50 lines/mm)
Accuracy ±3/±5/±15µm 20℃
Resolution(um) 5um
Reference Signal Every 50mm per length specification
Seal protection IP53
working speed (resolution)>=5um: >=60m/min <=1um: >=120m/min
Output signal RS422 / EIA-422-A
Operating temperature 0℃-45℃
Storage temperature -20℃--80℃
Humidity 100% not condensed
Voltage 5V/24V

Package list: 1 * KA300 Linear encoder scale, 1 *screw sets

Supporting plate is not included. It can be optioned by different propose. Covers is also possible.

Product images

SINO Small Glass Linear Encoder 1 Micron Resolution For EDM Machine

SINO Small Glass Linear Encoder 1 Micron Resolution For EDM Machine

SINO Small Glass Linear Encoder 1 Micron Resolution For EDM Machine

Supporting Plate:

SINO Small Glass Linear Encoder 1 Micron Resolution For EDM Machine

All scales will be tested before delivery.

Each scale have its own test report:

SINO Small Glass Linear Encoder 1 Micron Resolution For EDM Machine
