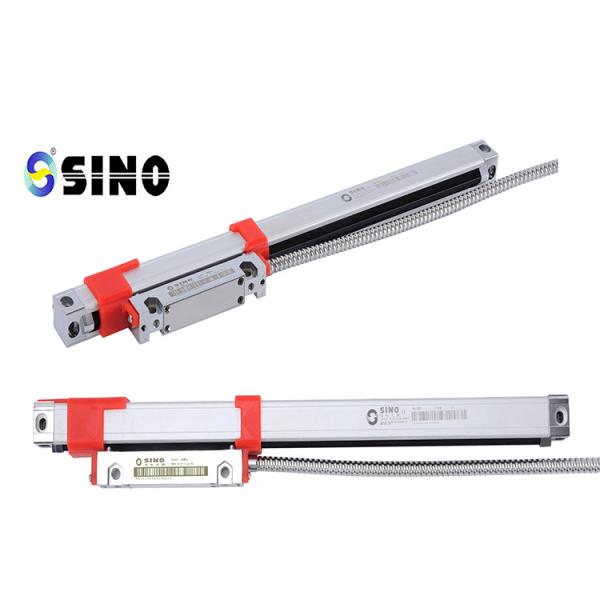

ISO9001 SINO KA200-170mm EDM Machine Glass Linear Scale For Grinding Machine

Many thanks for your use of this series of the encoder. It is China’s most famous international brand. It will be your best bet once you choose it. We are a professional factory dedicated to the manufacturing of encoder numerical displays. Through continuous modification and improvement through years of research and production, we have developed today’s KA series linear encoder.

KA-200, a mini-encoder smaller than KA-500, is designed based on kA-500 by optimizing the internal and external structure. It is suitable for the equipment on which the installation is restricted and the space is even smaller. The length is 30-360mm.

Package included:
KA200 Linear Ruler x 1pc
0.5/1/5 μm Resolution Available.
Customized lengths of the encoder (L0) can be provided according to the users' needs.(Length:30-360mm)

L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimension

Detail Information:

Safety Considerations

Caution

To avoid electric shock or fire, the equipment connected to the encoder shall be kept from moisture or direct contact with cooling liquids.

The encoder is a precision measuring instrument. To ensure its normal function, never expose it to external shock or vibration.

Warning

To prevent mal-alignment of the encoder and avoid electric shock, never open any seal on the encoder. No part needs the user’s repair. Please ask the authorized technicians to repair it.

Notes

If finding any smoke or smell from the reading head, please immediately cut off the power supply. As the encoder connects with the numerical display to form a precision measuring instrument, continued use in event of the above phenomena might cause fire or an electric shock to the numerical display. Please contact Guangzhou SINO DRO Co., Ltd. or its dealer. Never try to repair it by yourself.

Once the wire between the numerical display and encoder is broken or damaged during use, it will cause an error in the test data. The user shall take special care of this.

Never try to repair or refit the scale, as it might cause failure, trouble, or damage.

All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
