Application Fields

It's widely used for PET, PC, PVC, IMI/IMD, flexible circuits, films, photoplates, polyester, mobile phone panels, mobile phone keypads, aluminum substrates, thin aluminum sheets, nameplates, polycarbonate, membrane switches, decals, vehecle panel, keyboards, dials, demos, heat transfer label, front panel, flex printed circuits, medical labels, graphic overlays, glucose testing strips, self-adhesive label, membrane keyboard, and other thin materials.

Punching Samples

Product Features

1. CCD Positioning Control – Ensures precise punching with a ±0.015 mm margin.
2. Fast Punching Operation – Delivers 0.5-second per hole speed for higher throughput.
3. Works with Reflective Materials – Effective even on mirror-finish or semi-transparent substrates.
4. Smart Recognition – Light source technology identifies blurred or incomplete prints.
5. Film Flattening System – Stabilizes thin materials to avoid punching errors.
6. Simple Operation – Touchscreen-based system provides intuitive setup.
7. Monitoring Options – Check results in real-time on-screen or at the punch site.
8. Binary Image Processing – Improves accuracy of target recognition.
9. Adaptive Software – Custom settings available for unique punching needs.
10. Technical Support – Lifelong upgrade service and professional assistance.

Technical Parameters

Main Components

• Transmission components: motor, lead screw, guide rail, slider, coupling, bearing, limit photoelectric switch, metal connecting plate.

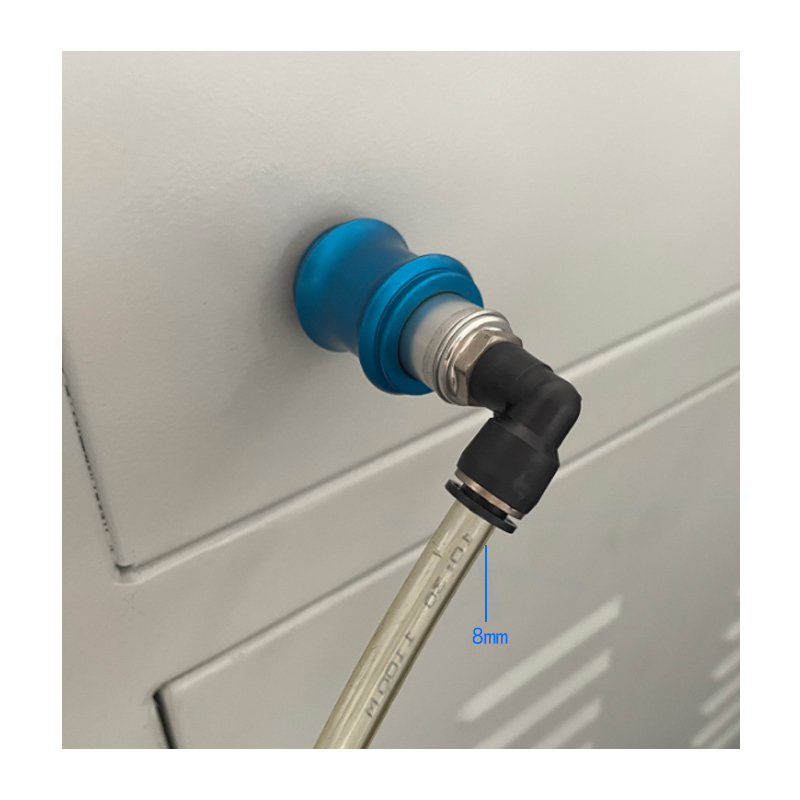

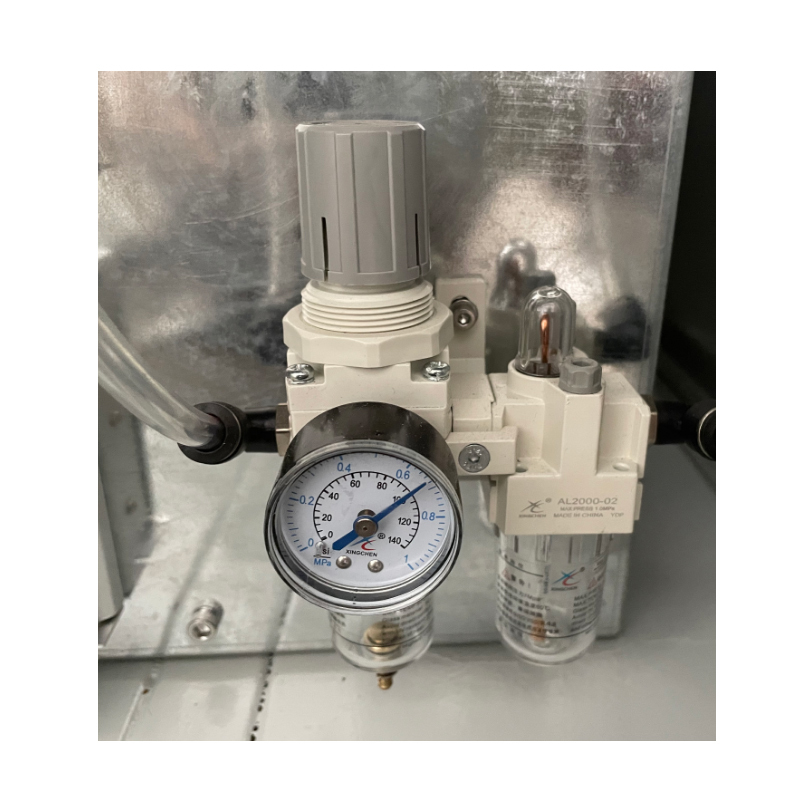

• Pneumatic components: solenoid valve, cylinder, oil–water filter, punching die, control relay.
• Vision components: video capture card, camera, lens, infrared light source, touchscreen display.
• Control components: industrial PC, motion control card, SLT automatic punching software, camera auto-positioning calculation system, relay on/off control system.
• Electrical components: AC–DC power supply, short-circuit protection air switch, driver, solenoid valve.
