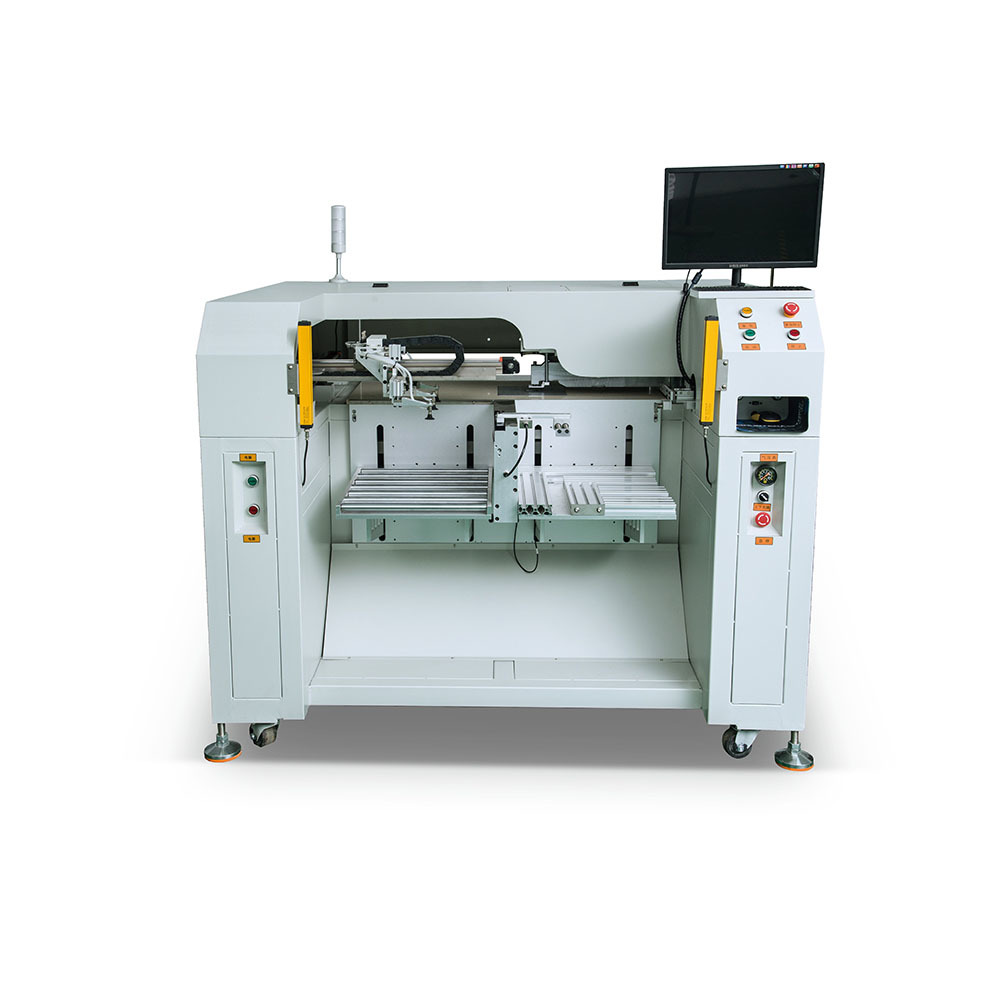

SLTJ-5080 Automatic CCD Guide Hole Punching Machine For PET/PC Membrane Switches
SLTJ-5080 Automatic CCD Guide Hole Punching Machine For PET/PC Membrane Switches
Specifications
Brand Name :
SILITRON
Model Number :
SLTJ-5080
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
30 per month
Delivery Time :
25 days
Packaging Details :
L2150 x W1800 x H1450mm
Description

Application

Composite sheet, membrane switch, nameplates, conductive film, flexible circuits, FPC, PC, PC, PVC, PET, film and other flexible sheet material with many holes.

Product Features

High productivity and precision, automatic loading, CCD positioning punching and unloading, achieving unmanned supervision production line.

Automatically move to punch according to coordinates set, it reduces the manual easy & repeated action, 1 people can supervise 2-3 lines.

  1. Adopts 19 inch monitor, avoiding the image being deformed.
  2. Adopts Pneumatic & mechanical mechanisms, with stable performance and strong adaptability.
  3. It has a variety of light source selection functions to make the image clearer.

Use single-chip microcomputer technology to process image and control.

Technical Parameters

Model

SLTJ-5080

Hole diameter

Φ1 mm-Φ5mm

Max material size

 500*800mm

Max punching force

7kN

Multiple light sources

white & colors

Material thickness

0.1-1.2mm(depend on material)

Punching precision

±0.02mm

Punching speed

0.35s/hole(exclude loading & unloading time)

Power

1.5kW

Voltage

AC200V~240V

Storage height

200 mm

Dimension

L1620mm x W1420mm x H1300mm

Weight

450kg

Workable Marks

SLTJ-5080 Automatic CCD Guide Hole Punching Machine For PET/PC Membrane SwitchesSLTJ-5080 Automatic CCD Guide Hole Punching Machine For PET/PC Membrane Switches
