Specifications
Brand Name :
SILITRON
Model Number :
SLTZ15
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
7 days
Packaging Details :
L1360 x W880 x H1350 mm
Material of punch die :
SKD11/61 quenched
Punch die life :
1 million cycles
Light source :
White and colors
Hole diameter :
Φ1－Φ5mm(customizable)
Description
Applicable Industries
Apply for:PET, PC, PVC, IMI/IMD, fiberglass boards, flexible circuits, films, photoplates, polyester, mobile phone panels, mobile phone keypads, aluminum substrates, thin aluminum sheets, nameplates, stainless steel, stainless iron, anodized aluminum nameplate, nameplate label, stainless steel label, aluminum steel namplate, anodized industrial nameplate, steel aluminum cable tage, nickel nameplates, electroformed nameplates, and other
materials.
Semi-auto CCD Registration Hole Punching Machine For Anodized Industrial Name Plate
Machine Features

  • Intuitive Mouse & Touch Operation – Simplifies workflow via Windows XP system.

  • Wide Worktable – Easily accommodates large substrates for smooth rotation and placement.

  • High-Speed Punching – Target holes detected and punched in less than a second.

  • Micro-Step Precision – Ensures stable, accurate punching with every cycle.

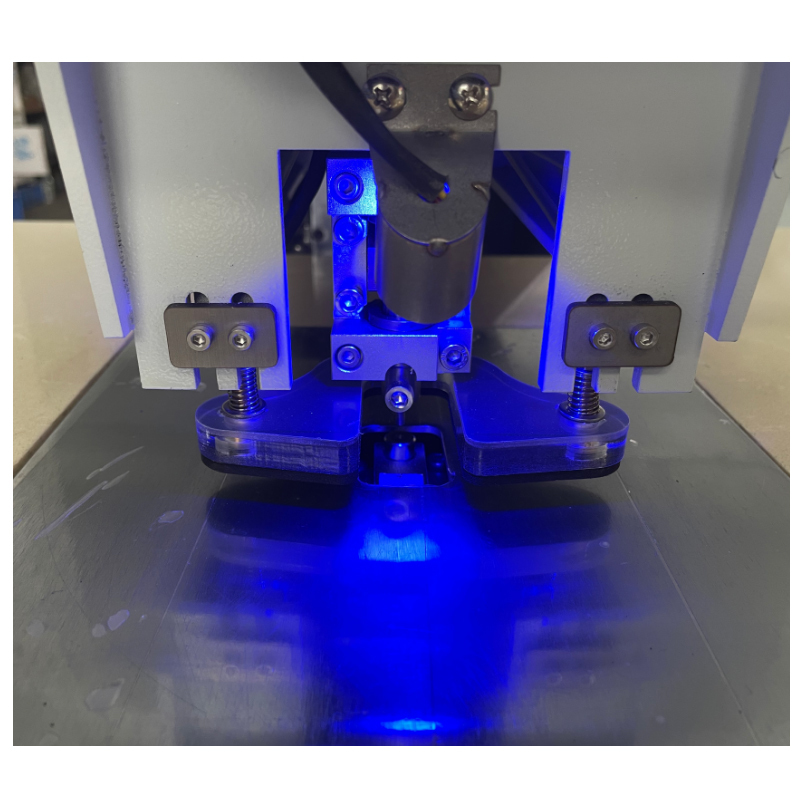

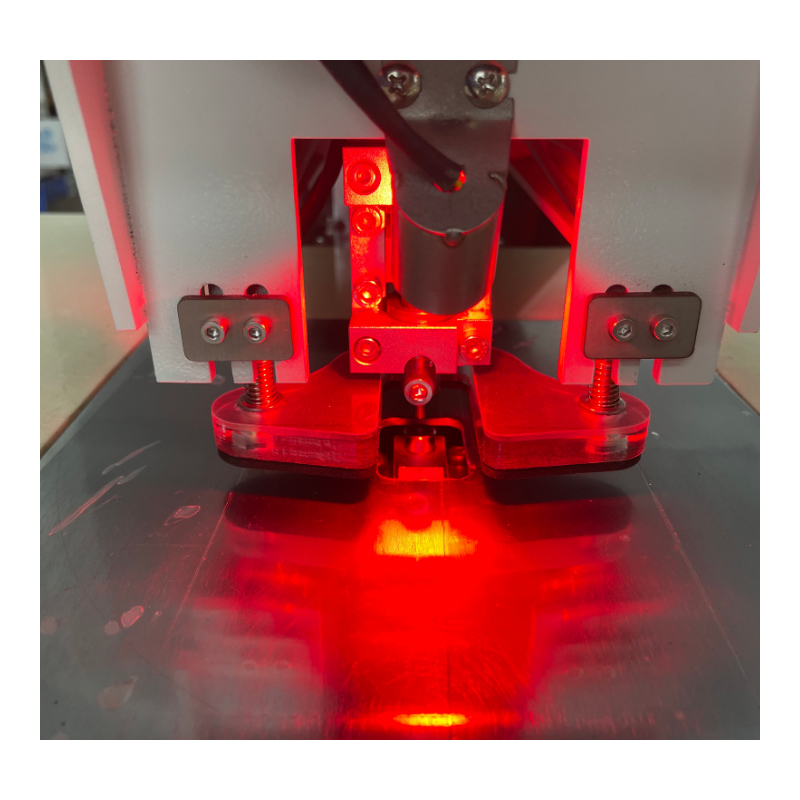

  • Adaptive Lighting – Up-light and down-light maximize CCD recognition on reflective surfaces.

  • Touch-Controlled Workflow – No pedals required; operations are smooth and responsive.

  • Customizable Punch Dies – Supports a variety of hole diameters and material thicknesses.

  • Program Memory – Save recurring job plans for fast repeat operations.

  • Lifetime Software Support – System can be upgraded to maintain top performance.

  • Imported Critical Components – Ensures durability and long service life.

Technical Parameter
Model SLTZ15
Dimension L1100 x W880 x H1150mm
Voltage AC 220V-240V 50HZ
Power 1kW

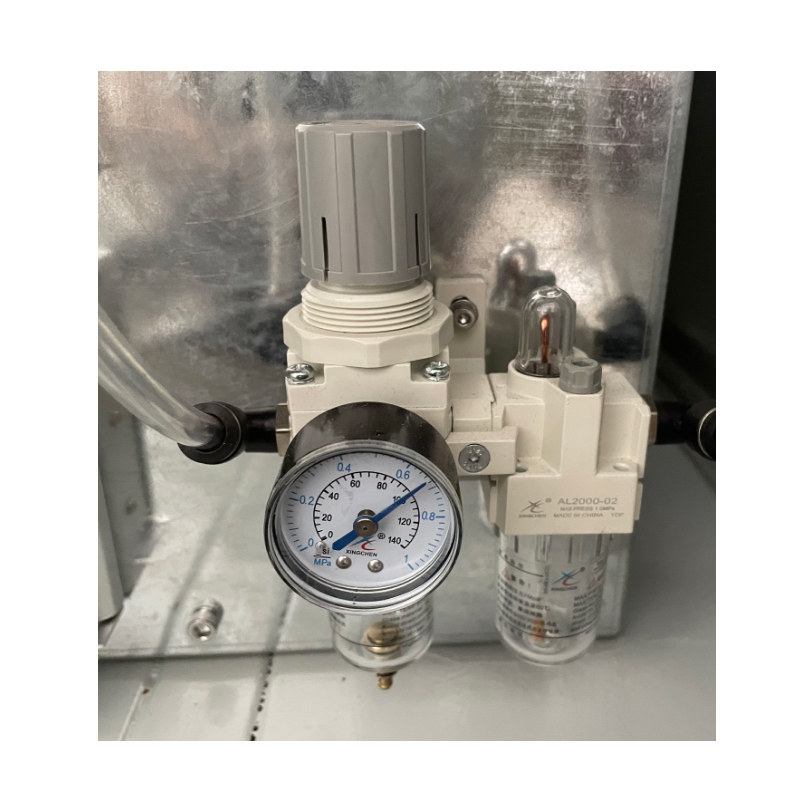

Air pressure 0.4~0.8Mpa
Weight 200kg
Punching force 9000N
Precision ±0.015mm
Table size L1100 x W770mm
Speed 0.4s/hole
Substrate thickness 0.01-1mm(base on material)

Workable Marks

Semi-auto CCD Registration Hole Punching Machine For Anodized Industrial Name Plate Semi-auto CCD Registration Hole Punching Machine For Anodized Industrial Name Plate

Main Configuration
Item
Brand
Origin
Guide rail / Slider
HIWIN
Taiwan
Lead screw
HIWIN
Taiwan
Coupling
Miki pulley
 Japan
Photoelectric switch
Omron
 Japan
Bearing
NSK
Japan
CCD Camera
Sony
Japan
Lens
Sony
Japan
Mainboard/software system
SLT
SLT
Cylinder/Solenoid valve
SHAKO
 Taiwan
