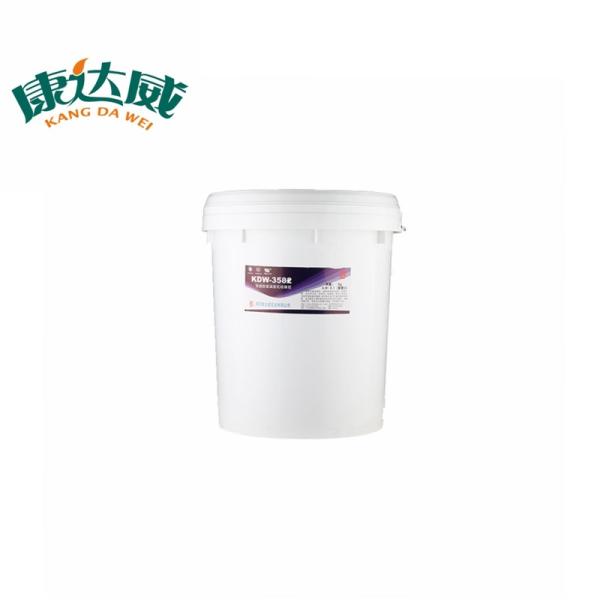

Thermally Conductive Silicone Potting Compound For Tires Good Liquidity
Thermally Conductive Silicone Potting Compound For Tires Good Liquidity
Specifications
Brand Name :
Lianti
Model Number :
3582(6:1)
Certification :
ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1.0 Barrels
Packaging Details :
Component A: 12KG, plastic drum Component B: 5KG, plastic drum. Also can be customized.
CAS No. :
63148-60-7
Other Names :
Silicone Sealant
EINECS No. :
Unspecified
Classification :
Other Adhesives
Main Raw Material :
Silicone
Usage :
Solar module, Packing, solar module
Type :
Two Component
Application :
Solar module
Certificate :
ISO9001
Appearance :
Paste
Color :
White/Black/Gray
Quality :
Guarantee
viscosity :
Low viscosity
Feature :
Excellent thermal conductivity
Packing :
12KG/5KG
Shelf life :
1 year
Description
About us

Thermally Conductive Silicone Potting Compound For Tires Good Liquidity

Thermally Conductive Silicone Potting Compound For Tires Good Liquidity

Thermally Conductive Silicone Potting Compound For Tires Good Liquidity

About products

Thermally Conductive Silicone Potting Compound For Tires Good Liquidity

Thermally Conductive Silicone Potting Compound For Tires Good Liquidity

Production Features

KDW-3582 is used on all kinds of components of pouring sealing and protection. It can be deeply cured, and with good liquidity, UV resistance, weather resistance, rain resistance and dirt resistance after mixed. And it can serve for a long time on outdoor products of fixation, waterproof, dustproof and anticreep.

1.Two components silicone pouring compound, additional type

2.Low viscosity, easy to process, strong maneuverability

3.Low shrinkage rate, no corrosion, no stress

4.Excellent high temperature electrical insulation, thermal conductivity and stability

5.Good waterproof and dampproof performance

6.Automotive electronics module

7.Power control module

8.Solar panels junction box LED screen

9.LED wall washer, LED module, etc.

Technical Data

Property

Unused

Used

A

B

Uncured

Color

White/Black/Gray

Transparent

White/Black/Gray

Viscosity (mpa·s)

15000~30000

50~150

10000~20000

Density (g/cm³)

1.25~1.35

0.97

1.20~1.30

Allowable operating time (25℃, min)

≥15

Complete cured time (25℃,h)

6-12

cured

Tensile strength (Mpa)

≥1.0

Elongation (%)

≥100

Shore hardness (A)

30~40

Volume resistivity (Ω·cm)

≥1 X 1014

Dielectric strength (KV/mm)

≥15

Thermal stability (℃)

-60~+200

Linear shrinkage (%)

≤0.5

Thermal conductivity

≥0.4

Flame retardant rating

UL94V-0

PS:Operation time is tested based on 100g rubber.All data was measured by testing after 7 days curing under the condition of 25℃ and 55%RH.

Operation

1.Weighing component A and B according to the ratio of 6:1, stirring evenly after mixed, then inject it to components and module which needed to be potting protected. It would be better to injected along one side of the wall, which can reduce the generation of air bubbles.

2.Placing the sealed component, and it would discharge bubbles by itself, if possible, vacuumizing and defoaming the mixed rubber before potting sealing. Directly cured at room temperature, usually the rubber will have elasticity within 1-6 hours.

3.If needing quantitative sealing equipment, please contact our sales men or marketing department.
