Double Components Electronics Potting Sealant Heat Resistant Processing Compound
Double Components Electronics Potting Sealant Heat Resistant Processing Compound
Specifications
Brand Name :
Lianti
Model Number :
KDW-3582(1:1)
Certification :
ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1.0 Kilograms
Packaging Details :
25KG/drum; etc.
CAS No. :
63148-60-7
Other Names :
Silicone Sealant
EINECS No. :
Unspecified
Classification :
Double Components Adhesives
Main Raw Material :
Silicone
Usage :
electronics, Potting
Type :
Liquid Glue, Two Component
Color :
White/Gray
Appearance :
Paste
Viscosity :
Low viscosity
Feature :
High thermal conductivity
Shelf life :
1 year
Certificate :
ISO9001
Quality :
Guarantee
Packing :
25KG
Description

Two-component High Ambient Heat Conduction Electronics Potting Heat Resistant Processing Compound

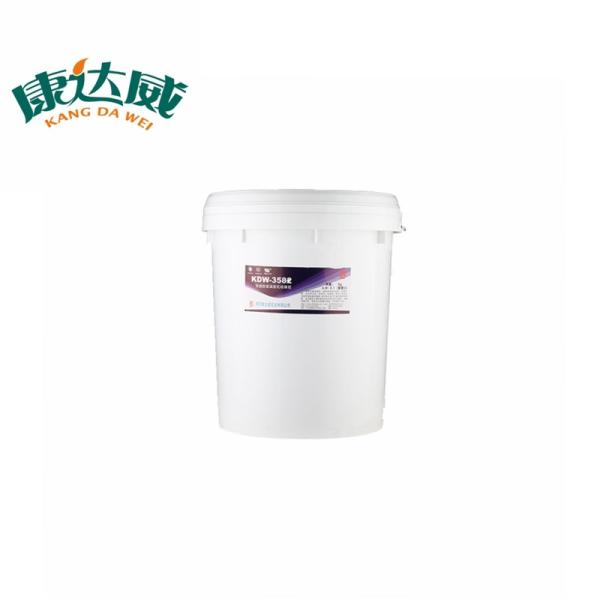

Product Display
Double Components Electronics Potting Sealant Heat Resistant Processing Compound
Product Description

Performance.

KDW-3582(1:1) is used on all kinds of componets of potting sealing and protection. It can be deeply cured, and with good liquidity, UV resistance, weather resistance, rain resistance and dirt resistance after mixed. And it can serve for a long time on outdoor products of fixation, waterproof, dustproof and anticreep.

Application.

1. Automotive electronics module

2. Power control module

3. Solar panels junction box LED screen

4. LED wall washer, LED module, etc.

Characters.

1. Two components silicone potting compound, condensation type;
2. Low viscosity, easy to process, strong maneuverability;
3. Low shrinkage rate, no corrosion, no stress;
4. Excellent high temperature electrical insulation, thermal conductivity and stability;

5. Good waterproof and dampproof performance.

Detailed Images
Double Components Electronics Potting Sealant Heat Resistant Processing Compound
Property
Unused
Used
A
B
Uncured
Color
White/Gray
White
White/Gray
Viscosity (mpa·s)
4800
4600
4700
Density (g/cm³)
1.50~1.60
1.50~1.60
1.50~1.60
Allowable operating time (25℃, min)
10-30
Complete cured time (25℃,h)
8-12
Cured
Tensile strength (Mpa)
≥1.0
Elongation (％)
≥100
Shore hardness (A)
60
Volume resistivity (Ω·cm)
≥1 X 1014
Dielectric strength (KV/mm)
≥20
Thermal stability (℃)
-50~+250
Linear shrinkage (%)
≤0.5
Thermal conductivity
0.8
Flame retardant rating
UL94V-0
Ps: Operation time is tested based on 100g adhesive.
All data was measured by testing after 7 days curing under the condition of 25℃ and 55%RH.
Packing & Delivery

Packing.

Component A: 25KG, plastic drum;

Component B: 25KG, plastic drum;

also can be customized.

Storage and transportation.

1. Avoid light, heat, and keep sealing(could be transported and stored as non-dangerous goods )

2. Both shelf life are 1 year at 25℃.

Operation process.

1. Weighing component A and B according to the ratio of 1:1, stirring evenly after mixed, then inject it to components and module which needed to be potting protected. It would be better to injected along one side of the wall, which can reduce the generation of air bubbles.

2. Placing the sealed component, and it would discharge bubbles by itself, if possible, vacuumizing and defoaming the mixed rubber before potting sealing. Directly cured at room temperature, usually the rubber will have elasticity within 1-6 hours.

Company Profile
Double Components Electronics Potting Sealant Heat Resistant Processing Compound
Production Scene
Double Components Electronics Potting Sealant Heat Resistant Processing Compound
Double Components Electronics Potting Sealant Heat Resistant Processing Compound
Double Components Electronics Potting Sealant Heat Resistant Processing Compound
Double Components Electronics Potting Sealant Heat Resistant Processing Compound
Double Components Electronics Potting Sealant Heat Resistant Processing Compound
Double Components Electronics Potting Sealant Heat Resistant Processing Compound
Double Components Electronics Potting Sealant Heat Resistant Processing Compound
