Specifications
Brand Name :
Lianti
Model Number :
KDW-3582(1:1)
Certification :
ISO9001
Place of Origin :
Jiangsu, China
Price :
$9.30(1 - 99 Kilograms) $8.00(>=100 Kilograms)
MOQ :
1 Kilogram
Packaging Details :
Sealant A : 12kg/drumSealant B: 5kg/drum
CAS No. :
Unspecified
Other Names :
Silicone Sealant
EINECS No. :
63148-60-7
Classification :
Other Adhesives
Main Raw Material :
Silicone
Usage :
electronics
Type :
Two Component
Feature :
High thermal conductivity
Viscosity :
Low viscosity
Shelf life :
1 year
Quality :
Guarantee
Packing :
25KG
Certificate :
ISO9001
Appearance :
Paste
Application :
Eletronics
Color :
White/Gray
Product type :
Additional
Description

High thermal conductivity silicone for plaster cornice can be used in electronic component potting material for electronics

About us

High Thermal Conductive Silicone Sealant Electrical Potting Compound Dampproof

Production Features

KDW-3582(1:1) is used on all kinds of componets of potting sealing and protection. It can be deeply cured, and with good liquidity, UV resistance, weather resistance, rain resistance and dirt resistance after mixed. And it can serve for a long time on outdoor products of fixation, waterproof, dustproof and anticreep.

Application:
1. Automotive electronics module
2. Power control module

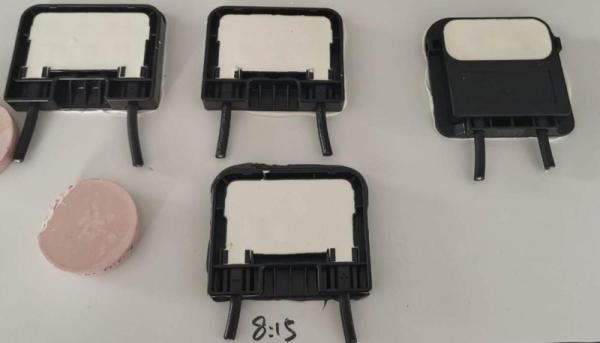

3. Solar panels junction box LED screen
4. LED wall washer, LED module, etc

Feature
1. Two components silicone pouring compound, additional type
2. Low viscosity, easy to process, strong maneuverability
3. Low shrinkage rate, no corrosion, no stress
4. Excellent high temperature electrical insulation, thermal conductivity and stability
5. Good waterproof and dampproof performance

Technical Data

Property
Unused
Used
A
B
Uncured
Color
White/Gray
White
White/Gray
Viscosity (mpa·s)
4800
4600
4700
Density (g/cm³)
1.50~1.60
1.50~1.60
1.50~1.60
Allowable operating time (25℃, min)
10-30
Complete cured time (25℃,h)
8-12
Cured
Tensile strength (Mpa)
≥1.0
Elongation (%)
≥100
Shore hardness (A)
60
Volume resistivity (Ω·cm)
≥1 X 1014
Dielectric strength (KV/mm)
≥20
Thermal stability (℃)
-50~+250
Linear shrinkage (%)
≤0.5
Thermal conductivity
0.8
Flame retardant rating
UL94V-0
Ps: Operation time is tested based on 100g adhesive.
All data was measured by testing after 7 days curing under the condition of 25℃ and 55%RH.
Operation

1. Weighing component A and B according to the ratio of 1:1, stirring evenly after mixed, then inject it to components and module which needed to be potting protected. It would be better to injected along one side of the wall, which can reduce the generation of air bubbles.
2. Placing the sealed component, and it would discharge bubbles by itself, if possible, vacuumizing and defoaming the mixed rubber before potting sealing. Directly cured at room temperature, usually the rubber will have elasticity within 1-6 hours.
Storage and transportation:
1. Avoid light, heat, and keep sealing(could be transported and stored as non-dangerous goods )
2. Both shelf life are 1 year at 25℃
Packing:
Component A: 25KG, plastic drum;
Component B: 25KG, plastic drum;
also can be customized.
