Heat proof High Voltage Silicone Fiberglass Sleeving inside fiber and outside rubber
Heat proof High Voltage Silicone Fiberglass Sleeving inside fiber and outside rubber
Heat proof High Voltage Silicone Fiberglass Sleeving inside fiber and outside rubber
Heat proof High Voltage Silicone Fiberglass Sleeving inside fiber and outside rubber
Heat proof High Voltage Silicone Fiberglass Sleeving inside fiber and outside rubber
Heat proof High Voltage Silicone Fiberglass Sleeving inside fiber and outside rubber
Heat proof High Voltage Silicone Fiberglass Sleeving inside fiber and outside rubber
Heat proof High Voltage Silicone Fiberglass Sleeving inside fiber and outside rubber
Specifications
Brand Name :
Sunbow
Model Number :
SB-SGS-70
Certification :
UL , RoHS , Reach , CSA
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
1000 Meter
Price :
USD0.07-13.4 per meter
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
600000 Meters / Month
Delivery Time :
7~10 Working Days
Packaging Details :
0.5mm ~ 4.0mm, 200 meters/roll; 4.5mm ~ 10.0mm, 100 meters/roll; 12.0mm ~ 18.0mm, 50 meters/roll; 20.0mm ~ 30.0mm, 25 meters/roll. Carton Size 35*35*60cm
Working Temperature :
200 C
Size :
0.5mm ~ 30.0mm
Material :
Fiberglass Yarn, silicone Rubber
Color :
White, Black, Green, Yellow, Brown, Rust Red etc
Breakdown Voltage :
7000V
Properties :
Flame Retardant, Flexible , Eco-friendly , Good Dielectric Strength
Flame Retardant Rating :
VW-1 UL 1441
Application :
Insulators, Electrical Appliance, Wires
Product Name :
High Voltage Silicone rubber fiberglass sleeving inside fiber and outside rubber
UL NO :
E333177
Description

Heat proof High Voltage Silicone Fiberglass Sleeving inside fiber and outside rubber

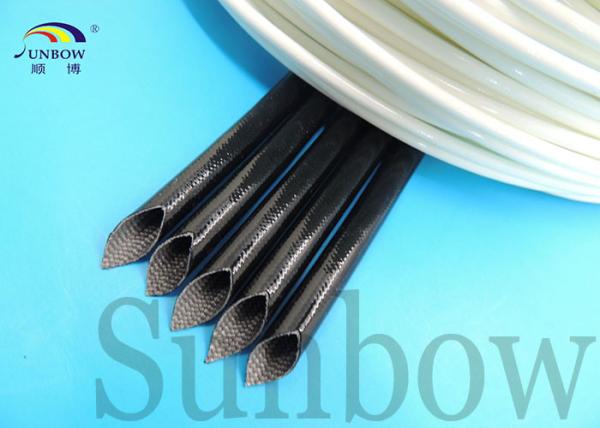

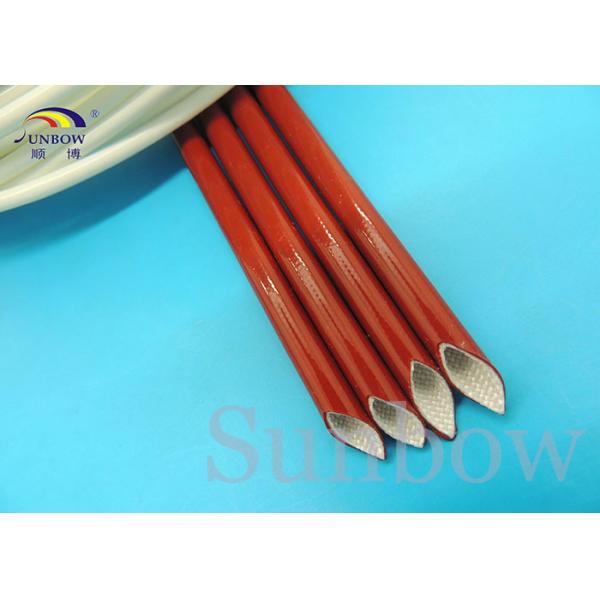

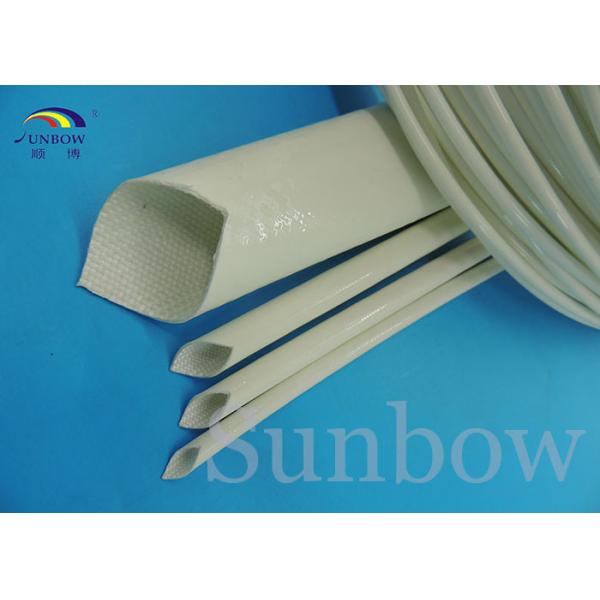

Silicone rubber fiberglass sleeving(inside fiber and outside rubber) is weaved into tubes, then formed the product by painting with silicone rubber under high temperature. It has excellent dielectric, automatic flame off-self, and softness feature than silicone fiberglass sleeving, widely used in the class H&N motor, household electrical appliances, heating equipment,the special lamps and lanterns, TV set and electric instrument.


Composition

1.Fiberglass braid
2.Silicone impregnated coating

Description:
1. Nominal Voltage: 600V.
2. Temperature Range: 200°C.
3. Available: Black, Brown, Red, Orange, Yellow, Green, Blue, Purple, Gray, White, Transparent etc.

Package:
200m/roll,100m/roll, 50m/roll, 25m/roll.
In carton box, Other packing style on request.

Specification

Item

Performance

Note

Dielectric Breakdown Voltage KV AC

Minimum Average

≥7.0

Before Aging

Minimum Single Point

≥5.0

Minimum Average

≥3.5

6 Hrs* 245±5ºC

245±5ºC 6Hrs Aging

Minimum Single Point

≥2.5

No Breakdown

/

1 KV in 2% Salt Water

Thermal Endurance

No Indication of Crack

OK

1440 Hrs* 235±5ºC

235±5ºC 1440Hrs Aging

Fire Resistance

VW-1

OK

UL 1441

Dimension

Inside Diameter

Wall Thickness (mm)

Standard Package (m/roll)

Nominal (mm)

Tolerance (mm)

φ0.5

+0.2, -0.1

≥0.37

200

φ1.0

+0.2, -0.1

≥0.37

200

φ1.5

+0.2, -0.1

≥0.37

200

φ2.0

+0.2, -0.1

≥0.37

200

φ2.5

+0.3, -0.1

≥0.42

200

φ3.0

+0.3, -0.1

≥0.42

200

φ4.0

+0.3, -0.1

≥0.42

200

φ4.5

+0.3, -0.1

≥0.51

100

φ5.0

+0.3, -0.1

≥0.51

100

φ6.0

+0.3, -0.1

≥0.51

100

φ7.0

+0.3, -0.1

≥0.56

100

φ8.0

+0.3, -0.1

≥0.56

100

φ9.0

+0.3, -0.1

≥0.66

100

φ10.0

+0.3, -0.1

≥0.66

100

φ12.0

+1.0, -1.0

≥0.66

50

φ14.0

+1.0, -1.0

≥0.66

50

φ16.0

+1.0, -1.0

≥0.66

50

φ18.0

+1.0, -1.0

≥0.66

50

φ20.0

+1.0, -1.0

≥0.76

25

φ25.0

+1.0, -1.0

≥0.76

25

φ30.0

+1.0, -1.0

≥0.76

25

High Voltage Silicone rubber fiberglass sleeving inside fiber and outside rubber

Heat proof High Voltage Silicone Fiberglass Sleeving inside fiber and outside rubberHeat proof High Voltage Silicone Fiberglass Sleeving inside fiber and outside rubberHeat proof High Voltage Silicone Fiberglass Sleeving inside fiber and outside rubber
