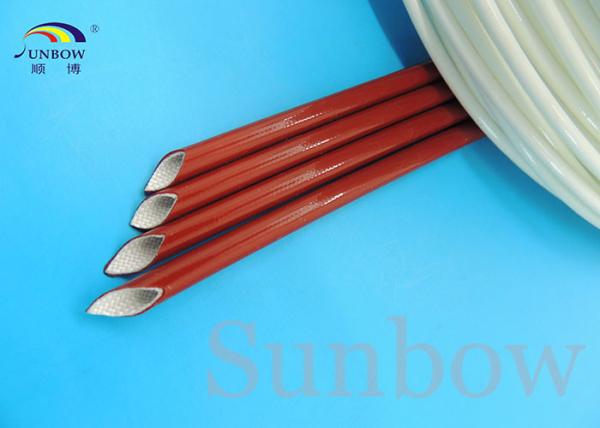

E333177 Silicone High Temperature Fiberglass Sleeving Breakdown Voltage 7.0kv
E333177 Silicone High Temperature Fiberglass Sleeving Breakdown Voltage 7.0kv
E333177 Silicone High Temperature Fiberglass Sleeving Breakdown Voltage 7.0kv
E333177 Silicone High Temperature Fiberglass Sleeving Breakdown Voltage 7.0kv
E333177 Silicone High Temperature Fiberglass Sleeving Breakdown Voltage 7.0kv
E333177 Silicone High Temperature Fiberglass Sleeving Breakdown Voltage 7.0kv
E333177 Silicone High Temperature Fiberglass Sleeving Breakdown Voltage 7.0kv
E333177 Silicone High Temperature Fiberglass Sleeving Breakdown Voltage 7.0kv
Specifications
Brand Name :
Sunbow
Model Number :
SB-SGS-70
Certification :
UL , RoHS , Reach , CSA
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
1000 Meter
Price :
USD0.07-13.4 per meter
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
600000 Meters / Month
Delivery Time :
7~10 Working Days
Packaging Details :
0.5mm ~ 4.0mm, 200 meters/roll; 4.5mm ~ 10.0mm, 100 meters/roll; 12.0mm ~ 18.0mm, 50 meters/roll; 20.0mm ~ 30.0mm, 25 meters/roll. Carton Size 35*35*60cm
Working Temperature :
200 degrees
Breakdown Voltage :
7.0KV
Material :
Non-alkali Fiberglass Yarn, silicone Rubber
Color :
White, Black, Green, Yellow, Brown etc
Size :
0.5mm ~ 30.0mm
Properties :
Flame Retardant, Flexible , Eco-friendly , Good Dielectric Strength
Flame Retardant Rating :
VW-1 UL 1441
Application :
Insulators, Electrical Appliance, Wires
Product Name :
Silicone Fiberglass Sleeving Silicone Rubber Fiberglass Sleeving Breakdown Voltage 7.0kv
UL NO :
E333177
Description

E333177 heat resistant Silicone Fiberglass Sleeving Breakdown Voltage 7.0kv

Silicone rubber fiberglass sleeving

Characteristic
-Temperature class H
-Continuous working temperature: 200°C
-Dielecric strength: 4kv ,7kv, 10kv, 15kv
-Flammability: self-extinguishing
-Good mechanical resistance
-Very flexible, watertight

Colour & Package
-Diameter: 0.5mm to 30mm
-Colour: yellow, black, white, brick red, red Etc
-Standard package:
0.5 to 3mm—200M , 4 to 8mm---100M
10 to 14mm---50M, 16 to 30mm---25M

Application
Electromechanical industry(motors, transformers,generators...), lighting industry, automotive...

Features:

1) Material: non-alkali glass fiber

2) Subject to high temperature

3) Minimum smoke is permitted

4) External color: white

Silicone Rubber Fiberglass Sleeving Specification

Item

Performance

Note

Dielectric Breakdown Voltage KV AC

Minimum Average

≥7.0

Before Aging

Minimum Single Point

≥5.0

Minimum Average

≥3.5

6 Hrs* 245±5ºC

245±5ºC 6Hrs Aging

Minimum Single Point

≥2.5

No Breakdown

/

1 KV in 2% Salt Water

Thermal Endurance

No Indication of Crack

OK

1440 Hrs* 235±5ºC

235±5ºC 1440Hrs Aging

Fire Resistance

VW-1

OK

UL 1441

Dimension

Inside Diameter

Wall Thickness (mm)

Standard Package (m/roll)

Nominal (mm)

Tolerance (mm)

φ0.5

+0.2, -0.1

≥0.37

200

φ1.0

+0.2, -0.1

≥0.37

200

φ1.5

+0.2, -0.1

≥0.37

200

φ2.0

+0.2, -0.1

≥0.37

200

φ2.5

+0.3, -0.1

≥0.42

200

φ3.0

+0.3, -0.1

≥0.42

200

φ4.0

+0.3, -0.1

≥0.42

200

φ4.5

+0.3, -0.1

≥0.51

100

φ5.0

+0.3, -0.1

≥0.51

100

φ6.0

+0.3, -0.1

≥0.51

100

φ7.0

+0.3, -0.1

≥0.56

100

φ8.0

+0.3, -0.1

≥0.56

100

φ9.0

+0.3, -0.1

≥0.66

100

φ10.0

+0.3, -0.1

≥0.66

100

φ12.0

+1.0, -1.0

≥0.66

50

φ14.0

+1.0, -1.0

≥0.66

50

φ16.0

+1.0, -1.0

≥0.66

50

φ18.0

+1.0, -1.0

≥0.66

50

φ20.0

+1.0, -1.0

≥0.76

25

φ25.0

+1.0, -1.0

≥0.76

25

φ30.0

+1.0, -1.0

≥0.76

25

Silicone Rubber Fiberglass Sleeving

E333177 Silicone High Temperature Fiberglass Sleeving Breakdown Voltage 7.0kv

E333177 Silicone High Temperature Fiberglass Sleeving Breakdown Voltage 7.0kv
