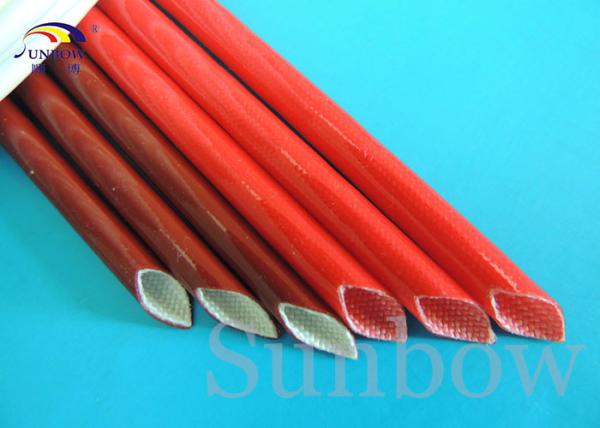

Brown Color 12mm Electrical Wire Fiberglass Insulation Sleeving
Brown Color 12mm Electrical Wire Fiberglass Insulation Sleeving
Brown Color 12mm Electrical Wire Fiberglass Insulation Sleeving
Brown Color 12mm Electrical Wire Fiberglass Insulation Sleeving
Brown Color 12mm Electrical Wire Fiberglass Insulation Sleeving
Brown Color 12mm Electrical Wire Fiberglass Insulation Sleeving
Brown Color 12mm Electrical Wire Fiberglass Insulation Sleeving
Brown Color 12mm Electrical Wire Fiberglass Insulation Sleeving
Specifications
Brand Name :
Sunbow
Model Number :
SB-SGS-70
Certification :
UL , RoHS , Reach , CSA
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
1000 Meter
Price :
USD0.07-13.4 per meter
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
600000 Meters / Month
Delivery Time :
7~10 Working Days
Packaging Details :
0.5mm ~ 4.0mm, 200 meters/roll; 4.5mm ~ 10.0mm, 100 meters/roll; 12.0mm ~ 18.0mm, 50 meters/roll; 20.0mm ~ 30.0mm, 25 meters/roll. Carton Size 35*35*60cm
Working Temperature :
200 c
Breakdown Voltage :
7KV
Material :
Fiberglass Yarn, silicone Rubber
Color :
White, Black, Green, Yellow, Brown, Rust Red etc
Size :
0.5mm ~ 30.0mm
Properties :
Flame Retardant, Flexible , Eco-friendly , Good Dielectric Strength
Flame Retardant Rating :
VW-1 UL 1441
Application :
Insulators, Electrical Appliance, Wires
Product Name :
Brown Color 12mm Electrical Wire Fiberglass Insulation Sleeving
UL NO :
E333177
Description

Brown Color 12mm Electrical Wire Fiberglass Insulation Sleeving

Silicone Coated Fiberglass Sleeving Applications:

Silicone Coated Fiberglass Sleeving may be used for the insulation of leads and connections in transformers.

Silicone Coated Fiberglass Sleeving Properties:

Operating Temperatures: +200°C

Voltage Rating: 600 Volt

Flammability: Self-Extinguishing

Dielectric Strength: 7000 Volts

Sunbow Silicone Rubber Coated Fiberglass Sleeve Specification:
Temperature: withstands continuous exposure to 200C;
Inner diameter: 0.5mm ~50.0mm.

Package:
200m/roll,100m/roll, 50m/roll, 25m/roll.
In carton box, Other packing style on request.

Specification

Item

Performance

Note

Dielectric Breakdown Voltage KV AC

Minimum Average

≥7.0

Before Aging

Minimum Single Point

≥5.0

Minimum Average

≥3.5

6 Hrs* 245±5ºC

245±5ºC 6Hrs Aging

Minimum Single Point

≥2.5

No Breakdown

/

1 KV in 2% Salt Water

Thermal Endurance

No Indication of Crack

OK

1440 Hrs* 235±5ºC

235±5ºC 1440Hrs Aging

Fire Resistance

VW-1

OK

UL 1441

Dimension

Inside Diameter

Wall Thickness (mm)

Standard Package (m/roll)

Nominal (mm)

Tolerance (mm)

φ0.5

+0.2, -0.1

≥0.37

200

φ1.0

+0.2, -0.1

≥0.37

200

φ1.5

+0.2, -0.1

≥0.37

200

φ2.0

+0.2, -0.1

≥0.37

200

φ2.5

+0.3, -0.1

≥0.42

200

φ3.0

+0.3, -0.1

≥0.42

200

φ4.0

+0.3, -0.1

≥0.42

200

φ4.5

+0.3, -0.1

≥0.51

100

φ5.0

+0.3, -0.1

≥0.51

100

φ6.0

+0.3, -0.1

≥0.51

100

φ7.0

+0.3, -0.1

≥0.56

100

φ8.0

+0.3, -0.1

≥0.56

100

φ9.0

+0.3, -0.1

≥0.66

100

φ10.0

+0.3, -0.1

≥0.66

100

φ12.0

+1.0, -1.0

≥0.66

50

φ14.0

+1.0, -1.0

≥0.66

50

φ16.0

+1.0, -1.0

≥0.66

50

φ18.0

+1.0, -1.0

≥0.66

50

φ20.0

+1.0, -1.0

≥0.76

25

φ25.0

+1.0, -1.0

≥0.76

25

φ30.0

+1.0, -1.0

≥0.76

25

Brown Color 12mm Electrical Wire Fiberglass Insulation SleevingBrown Color 12mm Electrical Wire Fiberglass Insulation Sleeving

Brown Color 12mm Electrical Wire Fiberglass Insulation Sleeving
