Thermal Conductivity Electronic Potting Silicone Liquid Two Component Custom
Thermal Conductivity Electronic Potting Silicone Liquid Two Component Custom
Specifications
Brand Name :
Hanast
Model Number :
HN-8806 A/B (1:1)
Certification :
ROHS，SGS
Place of Origin :
Guangdong, China
MOQ :
1 kilogram
Price :
Negotiable
Payment Terms :
T/T
Packaging Details :
25KG/ Iron Drum
Material :
Silicone
MOQ :
1 kilogram
Color :
White, Gray ,Black(can Be Customized)
Application :
Power supply,led module
Feature :
Flame retardant,Excellent electrical properties and Thermal conductivity
Waterproof :
Yes
Type :
Two-Component
Shelf time :
6 months
Description

Low Viscosity 1:1 Thermal Conductivity Potting Glue Two-Component Silicone Potting Compound for Electronic Components Circuit Board Connector

HN-8806 A/B (1:1)


Features :
Flexible silicone glue
Low shrinkage rate, no corrosion of components after curing.
Flame retardant, high and low -temperature resistance from -50ºC to 250ºC (58°F to 432°F).
Excellent electrical properties and Thermal conductivity.

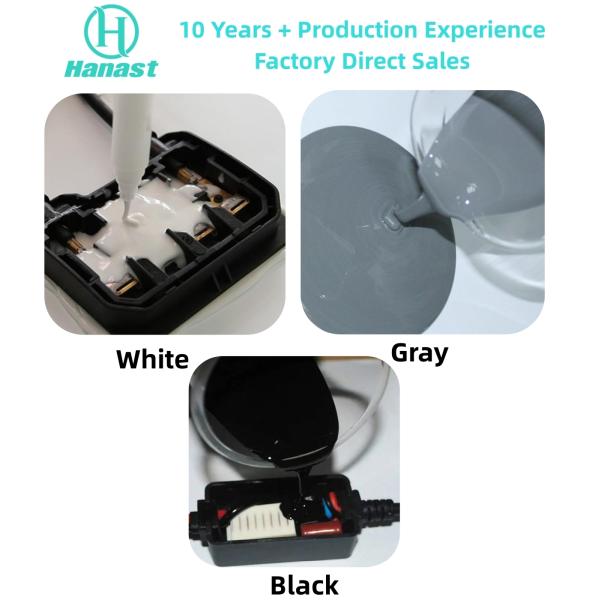

* Color: Grey, white, black
* Packing :
20KG / Set (A, 10kg + B, 10kg)

PRODUCT DESCRIPTION

HN-8806, two-component addition type silicone potting rubber which can be cured into high-performance elastomer by room temperature or heating.

Technical Parameters:

Test Items Test Standard Units Product test results
Part A Part B

Before

Curing

 1 Appearance By eyes --- Grey, fluid White, fluid
2 Viscosity GB/T10247- 2008 25ºC,mPa·S 4500~5000 4500~5000
3 Density GB/T 13354-92 25ºC,g/cm3 1.50±0.05 1.50±0.05
4 Mixing Ratio (A : B) 1:1 Weight ratio 100 100
Volume ratio 100 100
5 Operating time Measured hr 0.3-0.4
6 Curing condition Measured hr

4~12

(25ºC, initial cure)

0.20

(80ºC)

After

Curing

 7 Appearance By eyes --- Grey Elastomer
8 Hardness GB/T 531.1-2008 Shore A 50±5
9 Thermal conductivity GB/T10297-1998 w/m·k ≥0.76
10 Expansivity GB/T20673-2006 µm/(m,ºC) 210
11 Moisture Absorption GB/T 8810-2005 24h,25ºC,% 0.01~0.02
12 Volume resistivity GB/T 1692-92 (DC500V),Ω· cm 1.0×1016
13 Dielectric intensity GB/T 1693-2007 Kv/mm(25ºC) 18~25
14 Temperature Resistance Measured ºC -50~+250

* UV-94 Fire retardant: After two times 10s burn tests on a 3mm-thick sample, the flame was extinguished within 30s, and no burnt fell. [1]

* Noted: The data after curing are all measured after the silicone is completely cured.

HOW TO USE​​

1. When used, weigh A and B according to proportion and then mix them evenly.

Mix thoroughly and evenly with a clean stirring device in a clean container, and then potting can be done.

It can also be sealed under a vacuum after removing the bubbles.

2. The surface of the potting element needs to be cleaned.

If the potting product is too large, it is recommended to potting in stages and then cure at room temperature (4-12hr) or by heating (80ºC-0.5hr).

3. For the automatic potting production line, in order to ensure accurate mixing ratio of A and B, Part A and Part B should be vacuumed respectively to remove the bubbles (the foaming time is 5-10 minutes), and then A and B should be pumped to the static mixer in proportion with a metering pump, and then potting can be done after mixing evenly.

- Storage and transportation:

This product is non-toxic non-dangerous goods, according to the general chemical handling, stored in a cool & dry place (room temperature).

- Shelf Life: 6 months, overdue please reinspect; If it meets the standard, it can still be used.
