2:1 Electrically Conductive RTV Epoxy Potting Compound For Transformers Fire Retardant High Temp
2:1 Electrically Conductive RTV Epoxy Potting Compound For Transformers Fire Retardant High Temp
Specifications
Brand Name :
Hanast
Model Number :
HN-5508AB
Certification :
ROHS SGS
Place of Origin :
Guangdong, China
MOQ :
1kg
Price :
Negotiable
Payment Terms :
T/T
Packaging Details :
25KG/barrel
Hardness(shore A) :
85-95
Sample :
1kg or 5kg
Material :
Epoxy resin, Curing agent
Feature :
moisture-proof earthquake resistance, temperature resistance
Application :
transformers, resistors, filters, temperature sensors, temperature controllers
Customized :
Support
Description

2:1 Epoxy Potting Compound For Transformers Power Module Insulation Sealing Led Driver RTV Potting Glue Fire Retardant High Temp Potting Epoxy Resin

Product Description

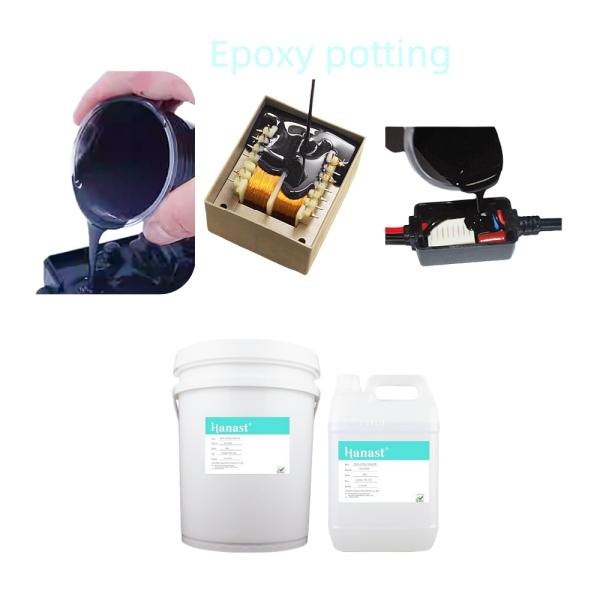

HN-5508 is widely used in transformers, resistors, filters, temperature sensors, temperature controllers, ignition coils, high voltage packs, aquarium equipment, anion generators, ultrasonic atomizers, and electronics and other components

HN-5508 epoxy resin at room temperature or low temperature, with low viscosity, long operation time, good fluidity, and easy penetration into the clearance of the product; no bubbles after curing, smooth surface, luster, high hardness

2:1 Electrically Conductive RTV Epoxy Potting Compound For Transformers Fire Retardant High Temp

uring builder Epoxy resin 5508 Curing agent 5508
pigment Black / White et al Ruburn / transparent surface
A sticky epoxy resin water r liquid specific
c gravity, g / cm3 1.4-1.5 1.05
Viscosity of 25℃ 4,500—6,000cp s 150—250cp storage
e Period (25℃) Six months x months

processabili

 mixing ratio A: B =5:1 (weight ratio)
Available for a time of 25℃ 2-3H (100g mix)
curing time 25℃ / 6-8H surface stem, 12-16H fully cured or 60-80℃/1.5-2H
After curing 2 Tensile strength of kg/cm 16-18
2 Compressive strength of kg/cm 18-22
Resistance to the voltage of kv/mm 20-22
Surface resistance ofΩ-cm

14

1.2*10
Volume resistance ofΩ-cm

15

1.1*10
contraction percentage% 0.35-0.55
Water absorption rate was 25℃ * 24H <0.03%

The hardness of SHORE A 85-95

distortion

temperature ℃

 130-150
low temperature resistant ℃ -30
