Specifications
Brand Name :
Hanast
Model Number :
HN-5508
Certification :
ROHS
Place of Origin :
Guangdong,China
MOQ :
1kg
Price :
USD
Payment Terms :
D/A, D/P, T/T
Delivery Time :
5-8 days
Packaging Details :
25kg/barrel
Name :
black potting epoxy
The Mixing Ratio :
A:B=5:1
Thermal Conductivity :
0.2 W/mK
Color :
Transparent,black
Application :
PCB/Battery/LED
Customized :
Support
Hardness :
Shore D 80
Feature :
flame retardant insulation, sealing bonding, moisture-proof
Curing time :
25℃ / 6-8H surface stem, 12-16H fully cured or 60-80℃/1.5-2H
distortion temperature ℃ :
130-150
Description

22 KV/Mm Epoxy Potting Compound Glue Potting For Capacitors, Transformers, Sensors, LED Modules Electronic Potting Silicone Rubber

Product description:

Epoxy resin potting compound is a thermosetting encapsulating material based on epoxy resin. Through mixing with a curing agent, it reacts to form a robust and durable insulator, commonly used for insulation, moisture protection, dustproofing, waterproofing, and fixing of electronic components. It comes in two types: two-component room-temperature curing and one-component high-temperature curing. It possesses excellent insulation properties, chemical resistance, high mechanical strength, and adhesion.

Application:

Main Applications:

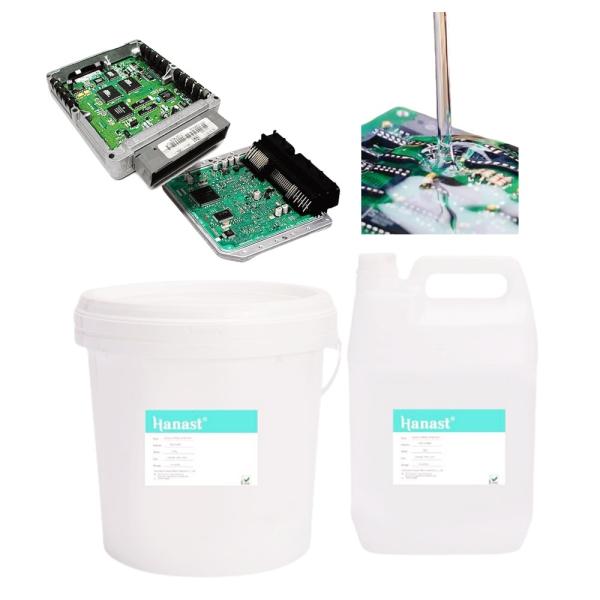

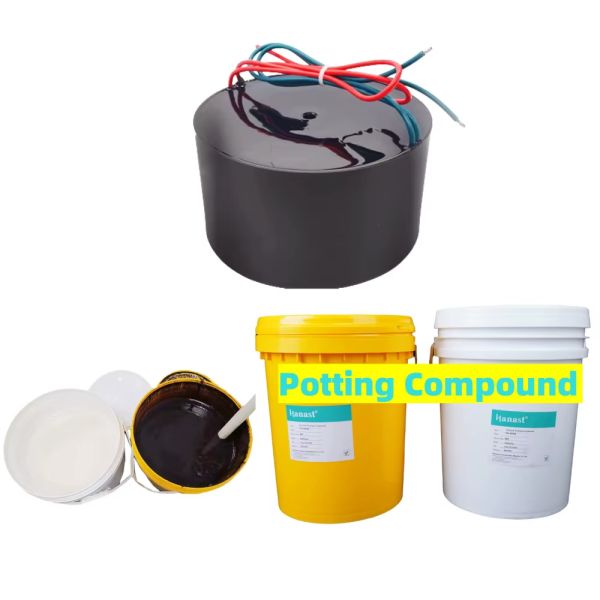

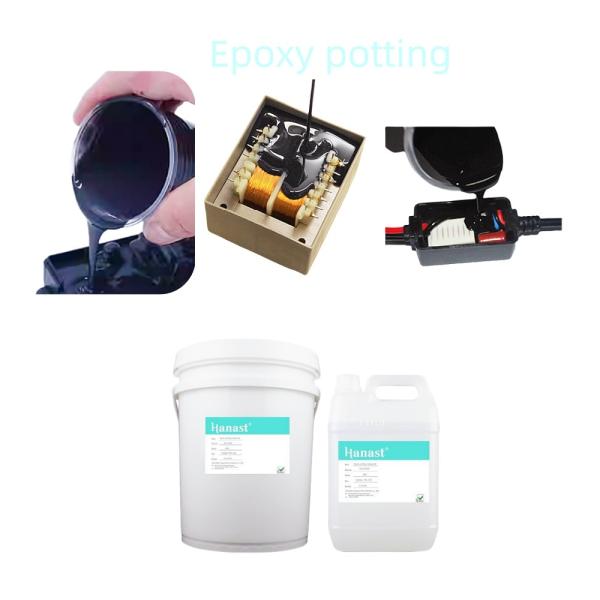

Electronic Component Packaging: Providing insulation and physical protection for components such as capacitors, transformers, sensors, and LED modules.

Circuit Board Protection: Used for the confidentiality, insulation, and moisture protection of circuit boards.

Automotive, Aerospace, and Other Fields: Used in electronic products requiring high strength and resistance to harsh environments.

Before curing builder Epoxy resin 5508 Curing agent 5508
pigment Black / White et al Ruburn / transparent surface
A sticky epoxy resin water r liquid specific
c gravity, g / cm3 1.4-1.5 1.05
Viscosity of 25℃ 4,500—6,000cp s 150—250cp storage
e Period (25℃) Six months x months

processabili

 mixing ratio A: B =5:1 (weight ratio)
Available for a time of 25℃ 2-3H (100g mix)
curing time 25℃ / 6-8H surface stem, 12-16H fully cured or 60-80℃/1.5-2H
After curing 2 Tensile strength of kg/cm 16-18
2 Compressive strength of kg/cm 18-22
Resistance to the voltage of kv/mm 20-22
Surface resistance ofΩ-cm

14

1.2*10
Volume resistance ofΩ-cm

15

1.1*10
contraction percentage% 0.35-0.55
Water absorption rate was 25℃ * 24H <0.03%

The hardness of SHORE A 85-95

distortion

temperature ℃

 130-150
low temperature resistant ℃

-30
