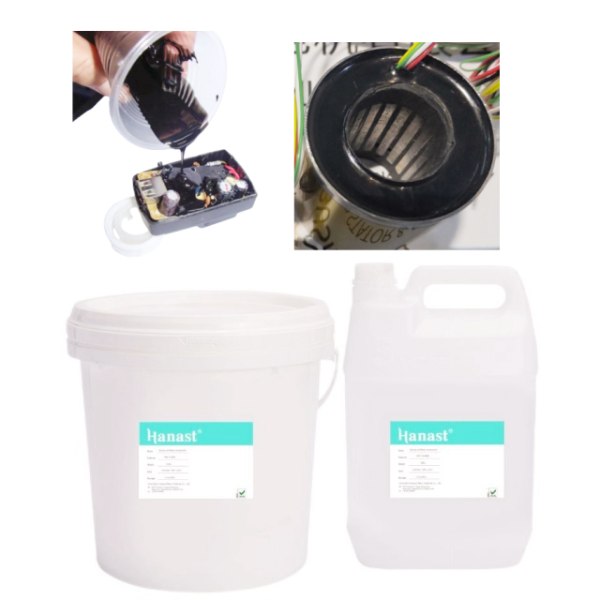

Waterproof Epoxy Potting Compound For Outdoor LED Lighting Driver Modules
Waterproof Epoxy Potting Compound For Outdoor LED Lighting Driver Modules
Specifications
MOQ :
1KG,6KG
MOQ :
1 kilogram
curing time :
25℃ / 6-8H surface stem, 12-16H fully cured or 60-80℃/1.5-2H
Feature :
High hardness
Resistance to the voltage of kv/mm :
20-22
Color :
Black
Keywords :
Black Electronic Potting Ab Glue
Delivery Time :
5-7days
Packaging Details :
25KG/ Iron Drum
Application :
Transformers and coils, power supplies and modules, etc.
Price :
Negotiable
Payment Terms :
T/T
Place of Origin :
Guangdong, China
Mix ratio :
5:1
Hardness :
85-95 shore D
Model Number :
HN-5508A/B
Certification :
ROHS
Name :
epoxy potting compound
Brand Name :
Hanast
Description

Waterproof Epoxy Potting Compound For Outdoor LED Lighting Driver Modules

Description of Epoxy Potting Compound

Epoxy potting compounds are thermosetting encapsulants formulated with epoxy resin, curing agents, fillers and functional additives. They are offered in two types: two-part room-temperature curing and one-part high-temperature curing systems.
Widely applied to electronic transformers, new energy vehicle ECUs and 5G base station power modules, these materials shield circuit components against moisture, vibration and high voltage.

technical parameter of epoxy potting compound:

Product Name epoxy potting compound
Mix ratio 5:1
Color Black
Feature High hardness,Tamper-evident / Tamper-resistant
MOQ 1KG,6KG
Application Transformers and coils, power supplies and modules, etc.
Keywords Black Electronic Potting Ab Glue
Hardness 85-95 shore D
curing time 25℃ / 6-8H surface stem, 12-16H fully cured or 60-80℃/1.5-2H
Resistance to the voltage of kv/mm Resistance to the voltage of kv/mm

Application of epoxy resin potting:

Epoxy potting compounds are a prime choice for power module encapsulation. Featuring outstanding anti-aging and chemical resistance, they deliver reliable insulation. Good thermal conductivity accelerates heat dissipation, and thermal insulation safeguards internal parts.
After curing, the material boasts high hardness, great strength and low brittleness. It resists mechanical impact and vibration, while providing waterproof and dustproof performance to keep power modules stable and reliable.
Besides power modules, these compounds are also widely used for potting and insulation of diverse electronic parts and assemblies, including electronic transformers, AC capacitors, ion generators, aquarium pumps, ignition coils, motorcycle voltage regulators, display panels, communication cable connectors and other coils.

Storage and transportation

1. Store in a cool and dry place with a storage periodof 6 months (25℃ below)
2. Products beyond the storage period should be
confirmed whether there are any abnormalities before
being used.
3. Parts A and B of the colloid must be sealed and
preserved, with careful leakage during transportation!
4. This kind of products are non-dangerous goods
and can be transported as general chemicals.

Packing specifications

This product is 30 KG per group; including group A25 KG (barrel) and group B 5 KG (pot)
