Ultra Bright Dimmable LED Module 2 LEDs 170 Degree Wide Angle For Signage Light Box
Ultra Bright Dimmable LED Module 2 LEDs 170 Degree Wide Angle For Signage Light Box
Ultra Bright Dimmable LED Module 2 LEDs 170 Degree Wide Angle For Signage Light Box
Ultra Bright Dimmable LED Module 2 LEDs 170 Degree Wide Angle For Signage Light Box
Ultra Bright Dimmable LED Module 2 LEDs 170 Degree Wide Angle For Signage Light Box
Ultra Bright Dimmable LED Module 2 LEDs 170 Degree Wide Angle For Signage Light Box
Specifications
Model Number :
Tino2-MFR074
Voltage :
DC12V
Payment Terms :
T/T,Western Union,Paypal,L/C
Dimension :
55*16*7.5mm
Price :
0.16-0.18USD/Piece
Lens :
170degrees
Supply Ability :
5000pcs/day
IP Level :
IP65
Certification :
CE ROHS
Led chain :
20pcs chain
MOQ :
1000pcs
Delivery Time :
5-15 working days
Led color :
White
Place of Origin :
ShenZhen, China
Lumen :
104LM
Packaging Details :
1000pcs/carton
Brand Name :
SignLED
Product name :
0.8W led module
Description

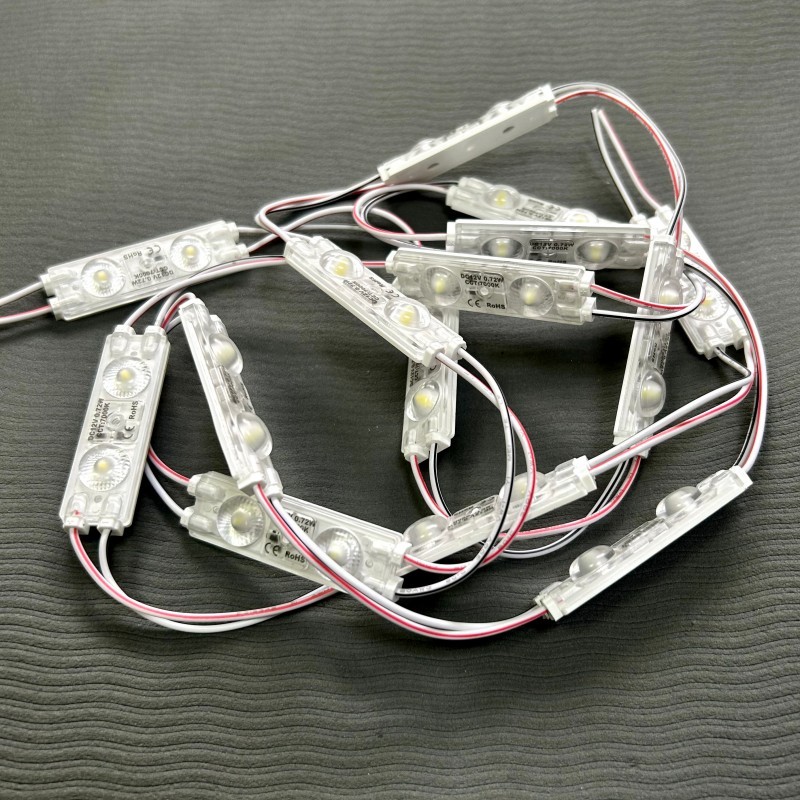

Ultra Bright LED Module 2 LEDs 170° Wide Angle Dimmable for Signage Light Box

These high-brightness LED modules feature an ultra-wide 170° beam angle, providing uniform illumination over large areas even with compact module sizes. Designed for long-term performance, they offer extremely low lumen depreciation and a lifespan of up to 50,000 hours, delivering consistent and reliable brightness over time.

Product Parameters

Model No. LED color CCT (K) voltage power LM Effect
(LM/W)		 Angle
2led module SMD2835 White 2700~6500K DC12V 0.80 104 130 170°
7000~10000K
Connection Qty Shell color Drive method Weight (g/100pcs) Warranty W T(℃) S T(℃) IP Level
20pcs White Constant voltage/current 750 5Years
Or 50000H		 -25-+60 -25-+80 IP65

Product Feature

  • 170° wide beam angle lens with high efficiency and excellent light uniformity
  • High luminous efficacy, low power consumption, and even light distribution
  • High color rendering index (CRI) for accurate and natural color performance
  • Energy-saving design with easy installation
  • IP65 waterproof rating for reliable indoor and outdoor use
  • 5-year warranty for long-term quality assurance

Ultra Bright Dimmable LED Module 2 LEDs 170 Degree Wide Angle For Signage Light Box

Led module Applications

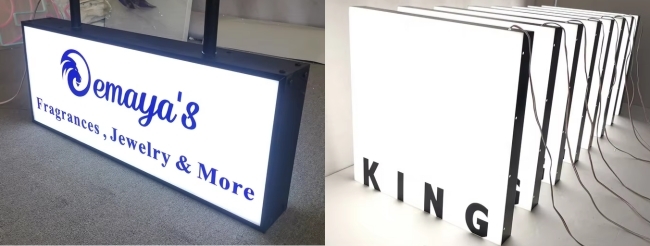

Suitable for channel letters and illuminated lightbox signage with a depth range of 80–160 mm for optimal lighting performance.

Ultra Bright Dimmable LED Module 2 LEDs 170 Degree Wide Angle For Signage Light Box

  • FAQ

Q: Can I order LED light samples?
A: Yes, we welcome sample orders for quality testing and evaluation before bulk purchase.

Q: What is the delivery time?
A: Sample orders take 3–5 days. Bulk production typically takes 5–7 days, depending on order quantity.
