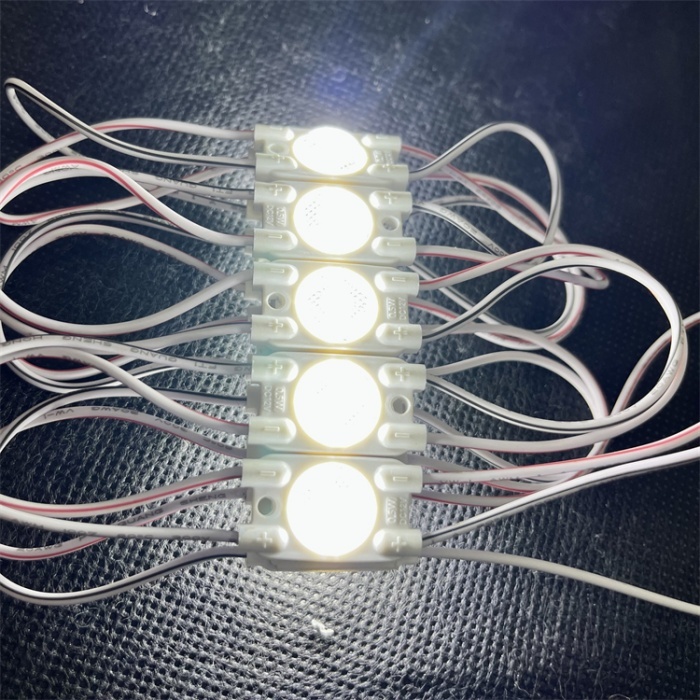

2835 SMD LED Module 1 LED 175 Degree Wide Angle 12V 24V Backlight Sign Light
2835 SMD LED Module 1 LED 175 Degree Wide Angle 12V 24V Backlight Sign Light
2835 SMD LED Module 1 LED 175 Degree Wide Angle 12V 24V Backlight Sign Light
2835 SMD LED Module 1 LED 175 Degree Wide Angle 12V 24V Backlight Sign Light
2835 SMD LED Module 1 LED 175 Degree Wide Angle 12V 24V Backlight Sign Light
2835 SMD LED Module 1 LED 175 Degree Wide Angle 12V 24V Backlight Sign Light
2835 SMD LED Module 1 LED 175 Degree Wide Angle 12V 24V Backlight Sign Light
2835 SMD LED Module 1 LED 175 Degree Wide Angle 12V 24V Backlight Sign Light
Specifications
Model Number :
Epro-MFR051
Efficiency :
125lm/W
Payment Terms :
T/T,Western Union,Paypal,L/C
Module Size :
28*15*6.7mm
Price :
0.11-0.13USD/Piece
Warranty :
5 years/ 50000 hours
Supply Ability :
5000pcs/day
Application :
Led letter, led light box
Certification :
CE ROHS
Led chain :
20pcs chain
MOQ :
1000pcs
Delivery Time :
5-15 working days
Led color :
White, other colors, etc.
Place of Origin :
ShenZhen, China
SDCM :
≤5
Packaging Details :
1000pcs/carton
Brand Name :
SignLED
Product name :
2835 led backlight module
Description
2835 SMD LED Module 1 LED 175 Degree Wide Angle 12V 24V Backlight Sign Light

SignLED Eco Series LED Modules are high-efficiency lighting solutions designed for LED signage and light box applications. With high luminous efficacy of 118–125 lm/W, DC12V/DC24V input options, and a wide 175°+ beam angle, these LED modules ensure uniform brightness and excellent energy efficiency for commercial advertising lighting.

Product Parameters
Model No. LED color CCT (K) voltage power LM Effect
(LM/W)		 Angle
2835 1led module SMD2835 White 2700~6500K 12V/24V 0.50W 62.5 125 175°
7000~10000K
Connection Qty Shell color Drive method Weight (g/300pcs) Warranty W T(℃) S T(℃) IP Level
20pcs White Constant voltage/current 1500 5Years
Or 50000H		 -25-+60 -25-+80 IP65
Product Features

• High-Brightness 2835 SMD LED: Delivers bright and uniform illumination with only 0.5W low power consumption.
• Flame-Retardant Housing PVC with PC Lens: Provides excellent durability, impact resistance, and enhanced optical performance.
• IP65 Waterproof Rating: Fully sealed design effectively protects against dust and moisture for reliable outdoor use.
• 175° Wide Beam Angle – Ensures even light distribution, ideal for channel letters, sign boxes, and advertising signage.
• Strong 3M Adhesive Backing – Enables fast, secure, and tool-free installation on most surfaces.

2835 SMD LED Module 1 LED 175 Degree Wide Angle 12V 24V Backlight Sign Light

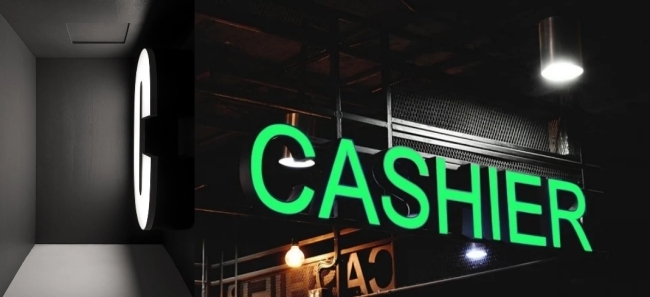

Led module Applications

Backlight led module can be widely used for advertisements.

  • Front & backlit LED channel metal letters
  • Indoor & outdoor waterproof LED signage
  • Illuminated brand LOGO facade signs
  • Built-in LED lamp for air conditioner interior
  • Vending machine panel backlight fixtures
  • Real estate outdoor billboard backlight
2835 SMD LED Module 1 LED 175 Degree Wide Angle 12V 24V Backlight Sign Light
FAQ

SignLED provides professional led back lighting products with top quality and good price for all kinds of clients.

  • MOQ: 1000pcs after Free Samples test
  • Trade term: EXW, FOB, or CIF.
  • Shipping terms: Express DHL, Fedex, UPS, Sea shipping.
  • Delivery time: 3-5 working days for sample,7-15 days for mass order.
  • Warranty: 5-7 years since the date of shipment.
  • Payment terms: 30% deposit, 70% before delivery.
  • Payment Methods: Bank transfer; PayPal; Western Union. Etc.
