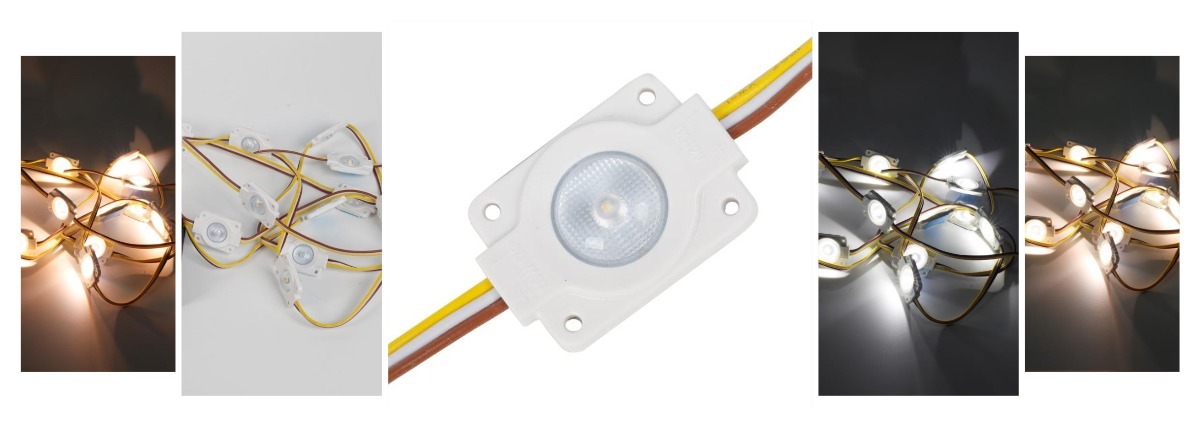

CCT dimmable led module 2700-6500k dual white DC12V 1.5W 170 degrees waterproof
CCT dimmable led module 2700-6500k dual white DC12V 1.5W 170 degrees waterproof
CCT dimmable led module 2700-6500k dual white DC12V 1.5W 170 degrees waterproof
CCT dimmable led module 2700-6500k dual white DC12V 1.5W 170 degrees waterproof
CCT dimmable led module 2700-6500k dual white DC12V 1.5W 170 degrees waterproof
CCT dimmable led module 2700-6500k dual white DC12V 1.5W 170 degrees waterproof
Specifications
Supply Ability :
5000pcs/day
Warranty :
5 years/ 30000 hours
Brand Name :
SignLED
Product name :
CCT led module
Model Number :
SN-MFR103
Module Size :
38.5*26*7.1mm
Price :
0.23-0.28USD/Piece
Led chain :
20pcs chain
Certification :
CE ROHS
Led voltage :
DC12V/24V
MOQ :
1000pcs
Delivery Time :
5-15 working days
Led chip :
1pcs SMD3030
Payment Terms :
T/T,Western Union,Paypal,L/C
Application :
Led light box
Place of Origin :
ShenZhen, China
Led Power :
1.5W
Packaging Details :
1000pcs/carton
Description
CCT dimmable led module 2700-6500k dual white DC12V 1.5W 170 degrees waterproof

This DC12V CCT dimmable dual white LED module supports stepless color temperature adjustment from 2700K warm white to 6500K cool white and flexible brightness dimming for multi-scene lighting customization. Equipped with premium SMD chips and a professional diffused optical structure, it delivers soft, uniform, glare-free lighting with no visible dot spots.

Rated at 1.5W with an ultra-wide 170° beam angle, the module ensures broad light coverage and high luminous uniformity without dark zones. Its waterproof structure offers great dust and moisture resistance, ensuring stable long-term operation in humid indoor and semi-outdoor environments.
Product Parameters
Model No. LED color CCT (K) voltage power LM Effect
(LM/W)		 Angle
MFR103 SMD2835 White 2700~6500K 12V/24V 1.5W 180 120 170°
7000~10000K
Connection Qty Shell color Drive method Weight (g/50pcs) Warranty W T(℃) S T(℃) IP Level
20pcs White Constant voltage/current 375 5Years
Or 30000H		 -25-+60 -25-+80 IP66

CCT dimmable led module 2700-6500k dual white DC12V 1.5W 170 degrees waterproof

Led module Applications

Backlight led module can be widely used for led advertising projects.

  • Led sign letters.
  • Led brand signage.
  • Led light boxes.

CCT dimmable led module 2700-6500k dual white DC12V 1.5W 170 degrees waterproof

FAQ About CCT LED Modules

Q1: What CCT range does this LED module support?
A1: 2700K to 6500K, covering warm, neutral and cool white.
Q2: What voltage and power?
A2: Low voltage DC12V/24V.
Q3: What is the beam angle?
A3: 170° beam angle creating even, spot-free and anti-glare soft light with no dark areas.
Q4: Is this LED module waterproof?
A4: Yes. Waterproof and dustproof.
Q5: Is it dimmable and where to use?
A5: Fully dimmable with adjustable CCT and brightness.
