WS2811 Addressable 5050 RGBIC led module light SPI DMX512 programmable led light
WS2811 Addressable 5050 RGBIC led module light SPI DMX512 programmable led light
WS2811 Addressable 5050 RGBIC led module light SPI DMX512 programmable led light
WS2811 Addressable 5050 RGBIC led module light SPI DMX512 programmable led light
WS2811 Addressable 5050 RGBIC led module light SPI DMX512 programmable led light
WS2811 Addressable 5050 RGBIC led module light SPI DMX512 programmable led light
Specifications
Supply Ability :
10000pcs/day
Warranty :
5 years warranty
Model Number :
SN-MAD120
Led chip :
SMD5050
MOQ :
1000
Delivery Time :
5-15 working days
Voltage :
DC12V/24V
Payment Terms :
L/C,T/T,Western Union,PayPal
IC chip :
SPI/DMX512
Price :
0.45-0.55USD per piece
Power :
0.72W
Certification :
CE ROHS
Beam angle :
165 degrees
Brand Name :
SignLED
Module Type :
RGBIC led module
Place of Origin :
ShenZhen, China
Module Size :
72*20*9.8mm
Packaging Details :
1000pcs/carton
Description

WS2811 Addressable 5050 RGBIC led module light SPI DMX512 programmable led light

This WS2811 addressable RGBIC LED module uses high-quality SMD5050 RGB LEDs with built-in WS2811 control IC. As a programmable digital LED pixel light, it supports SPI signal and DMX512 control system, enabling independent pixel programming and various dynamic lighting effects. Thanks to stable signal transmission and reliable long-distance wiring performance, this RGBIC LED pixel module is a preferred point light source for commercial signage, architectural contour lighting and entertainment venue decorative lighting.

Model No.

LED

color

W/CCT (K)

voltage

power

LM

Effect
(LM/W)

Angle

MAD120

SMD5050

RGB

2700~6500K

12V/24V

0.72W

30

120

165°

7000~10000K

Connection Qty

Shell color

Drive method

Weight (g/20pcs)

Warranty

W T(℃)

S T(℃)

IP Level

20pcs

White

Constant voltage

500

5Years
Or 30000H

-25-+60

-25-+80

IP65

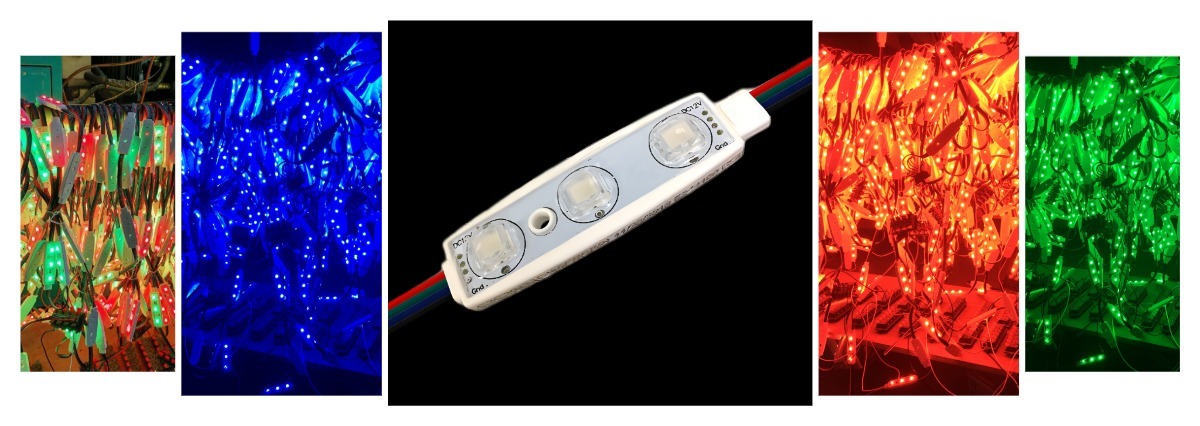

Detailed Photos for RGBW led module

WS2811 Addressable SMD5050 RGBIC LED Module, SPI & DMX512 Programmable Digital LED Pixel Light Module for Outdoor Signage & Landscape Lighting

WS2811 Addressable 5050 RGBIC led module light SPI DMX512 programmable led light






Applications

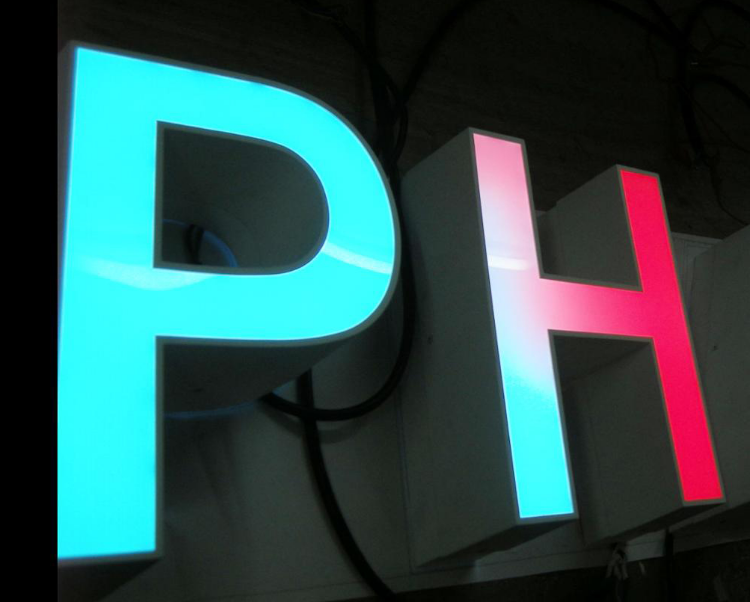

RGBIC led lens modules can be used for led light boxes. led logos, led letters and so on. especially for color changing decoration light.

WS2811 Addressable 5050 RGBIC led module light SPI DMX512 programmable led light













FAQ – SMD5050 RGBIC LED Module with Lens

Q1: What control protocols does this WS2811 RGBIC LED module support?
A1: It supports SPI signal and works with DMX512 decoder, compatible with most professional LED programmable controllers.

Q2: Can each LED module be controlled separately?
A2: Yes. Equipped with WS2811 IC, every module is an independent addressable pixel for custom animation effects.

Q3: What are the advantages of WS2811 compared with WS2812B addressable lights?
A3: WS2811 performs better on long-distance wiring, less voltage drop and signal attenuation for large outdoor projects.

Q4: What projects are these programmable RGBIC LED modules suitable for?
A4: Ideal for channel letters, advertising billboards, building facade lighting, landscape, bar and amusement park decorative lighting.
