Black Three Stage High Power Rf Amplifier PA Optimized For 1.4-3.5GHz
Black Three Stage High Power Rf Amplifier PA Optimized For 1.4-3.5GHz
Black Three Stage High Power Rf Amplifier PA Optimized For 1.4-3.5GHz
Black Three Stage High Power Rf Amplifier PA Optimized For 1.4-3.5GHz
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
SZHUASHI
Model Number :
YP3630W
Packaging Details :
Carton
MOQ :
10 pieces
Price :
Prices are negotiable
Delivery Time :
2-10days
Application :
1.4 to 3.5GHz
Type :
Standard
Series :
YP3630W
Features :
Standard
Mounting Type :
Standard
Description :
Standard High-Gain Power Amplifier
Manufacturing Date Code :
Other
Operational Frequency :
1.4GHz-3.5GHz
Supply Voltage :
-0.5 to +8.0V
Bias Voltage :
-0.5 to +2.9
DC Supply Current :
600mA
Operating Ambient Temperature :
-40 to +85 °C
Storage Temperature :
-40 to +150 °C
Description

SZHUASHI 100% New Black YP3630W Three-Stage High Dynamic Range Gain Power Amplifier PA Optimized for 1.4-3.5GHz

Product Description

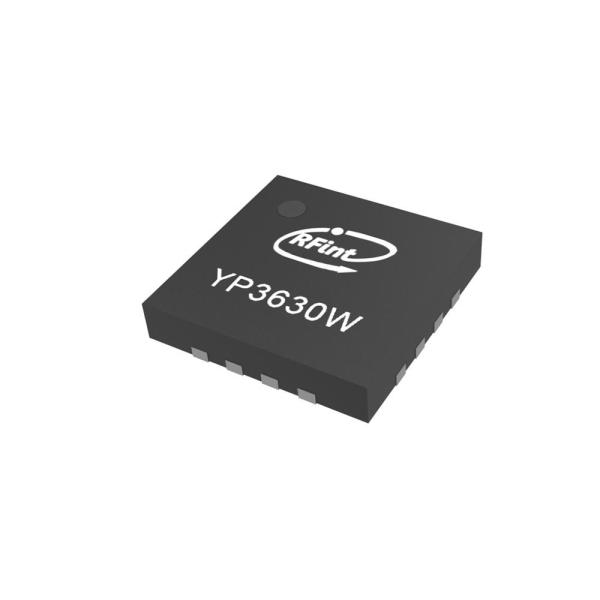

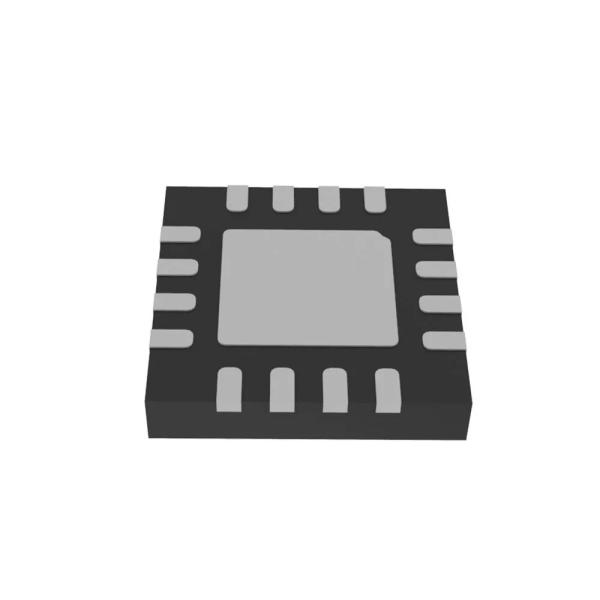

The YP3630W is a three-stage, high dynamic range broadband power driver amplifier using an advanced InGaP/GaAs HBT process. This amplifier provides 31.67dB gain and 31.2dBm P1dB at 2GHz while drawing 940mA current from a 5V typical bias condition. The YP3630W is assembled in a 16-pin, 4x4mm2, QFN package. It is internally integrated with ESD protection circuitry on all ports and incorporates a shutdown function trough the VCTR pin.

Parameter Rating
Input RF Power with 50Ω Output Load + 3dBm
Supply Voltage -0.5 to +8.0V
Bias Voltage (VREF) -0.5 to +2.9V
DC Supply Current 600mA
Operating Ambient Temperature -40 to +85°C
Storage Temperature -40 to +150°C

Black Three Stage High Power Rf Amplifier PA Optimized For 1.4-3.5GHz

Black Three Stage High Power Rf Amplifier PA Optimized For 1.4-3.5GHz

Black Three Stage High Power Rf Amplifier PA Optimized For 1.4-3.5GHzBlack Three Stage High Power Rf Amplifier PA Optimized For 1.4-3.5GHz

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Zhongshi Zhihui Technology (suzhou) Co., Ltd. is located in Suzhou Industrial Park, founded in 2010, the company is mainly engaged in, and can provide customers with wireless communication network coverage solutions of high-tech enterprises. The company implements radio-oriented development strategy based on radio frequency technology, independent research and development and production of bidirectional frequency conversion super WiFi signal amplifier products, radio frequency and microwave voltage controlled oscillator (VCO), sweep signal source, wireless network card information security module and other product lines, has mastered some core technologies in the product field, has a lot of independent intellectual property rights.
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2010,sell to Western Europe(50.00%),Southern Europe(12.00%).

2. how can we guarantee quality?
Always a pre-production sample before mass production;

Always final Inspection before shipment;

1 year warranty for our products.


3.what can you buy from us?
Signal Booster, VCO, Anti Drone Jammer Module, Power Amplifier, Gain Block and so on
