Specifications
MOQ :
1
Price :
US $600-800 / set
Certification :
CE
Place of Origin :
China
Brand Name :
DY
Delivery Time :
7-15 work days
Model NO. :
DY-450
Transmission Structure :
Vibrating Screen
Usage :
Liquid Sieve
Works :
Rotary Vane Shaker
Shaft Number :
Single
Running Track :
Circular Vibrating Screen
Supporting Device :
Plate Spring
Warranty :
1 Year
Condition :
New
After-sales Service :
Online Video
Power :
0.18kw
Weight :
50kg
Voltage :
380V / as Your Required
Transport Package :
Standard Export Wooden Case Package
Specification :
450mm diameter
Trademark :
DY
Origin :
China
HS Code :
8474100000
Description

High-Speed Thick Liquid Sieve Vibrator Vibrating Filter Sieve for Ceramic Slurry Liquid/ Solid Separation

Product Display

450 Type Vibration Filter consists of machine body,vibrating motor,outlet hopper,sieve griddle,e-control device The eccentric hammers change rotation into horizontal, vertical and inclined movement, and then pass the movement to the sieving surface. Adjusting the phase angle on the top and bottom can change trajectories of the materials on the sieve.

Thick Liquid Vibrating Screen Filter For Ceramic Slurry Liquid / Solid Separation
Product Description

450 vibration filter is a new type and high efficient filtration and screen equipment. It consists of machine body, vibrating motor, other hopper, sieve griddle-control device. It is widely applied for filtering and screening particles and powder materials. The minimum size of the material to process can be 5 micron. And the maximum number of the mesh can be 500 mesh.

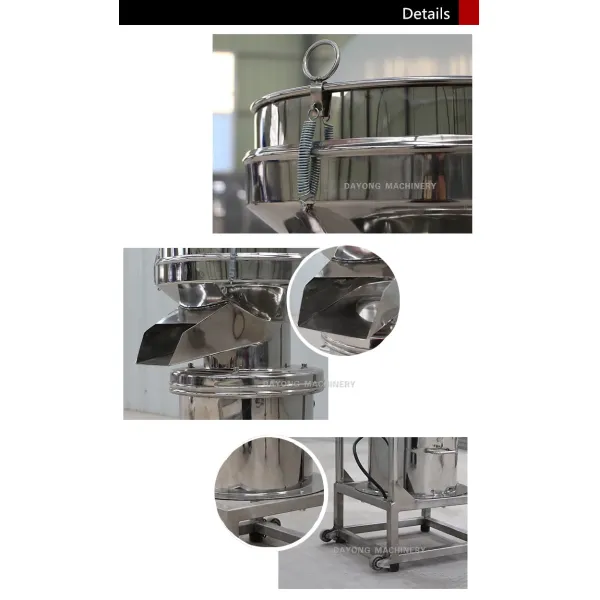

Thick Liquid Vibrating Screen Filter For Ceramic Slurry Liquid / Solid SeparationProduct Details

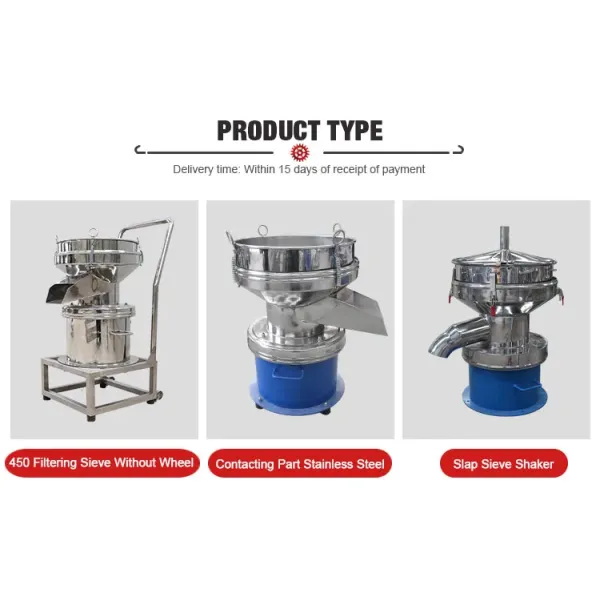

Thick Liquid Vibrating Screen Filter For Ceramic Slurry Liquid / Solid SeparationProduct Type
Thick Liquid Vibrating Screen Filter For Ceramic Slurry Liquid / Solid Separation

Applicable Industry

The 450‑type liquid filter screen is widely applicable to the screening and filtration of various powders, raw materials and viscous liquids. It can be used in many industries including food, pharmaceutical, chemical, abrasive, ceramic and metallurgy. This filter screen demonstrates particularly remarkable performance in ceramic slurry screening, featuring better effect, higher efficiency and improved screening precision.
Thick Liquid Vibrating Screen Filter For Ceramic Slurry Liquid / Solid Separation

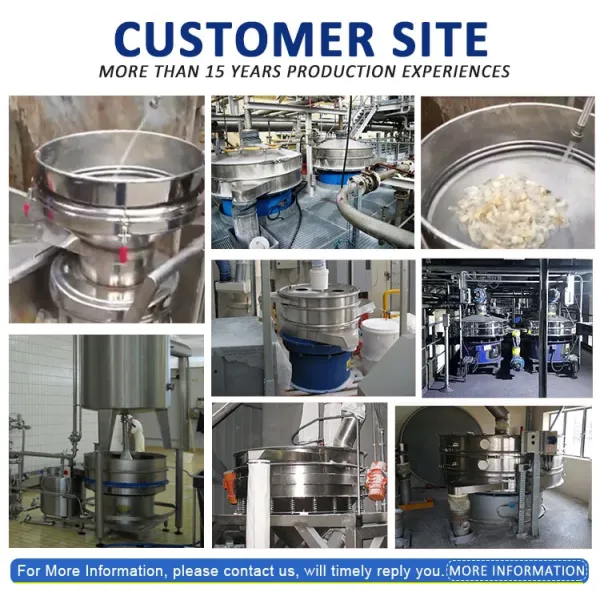

Customer Case
Thick Liquid Vibrating Screen Filter For Ceramic Slurry Liquid / Solid SeparationRelated Products
Thick Liquid Vibrating Screen Filter For Ceramic Slurry Liquid / Solid Separation

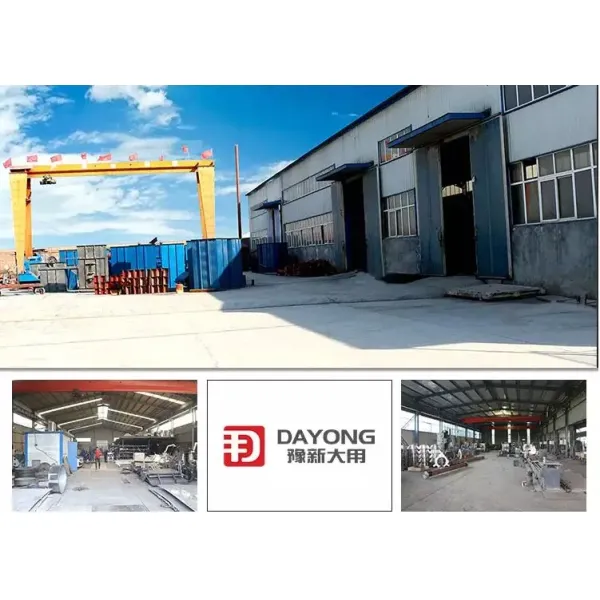

Company Profile
We are a direct manufacturer of vibrating screens, conveyors, and mixers with many years of experience. We sincerely hope to establish long-term business partnerships with you.
We have an enterprising, energetic, and professional team dedicated to the industry. Our company employs a large number of staff, including senior technicians and engineers.
Our main products include rotary vibrating screens, linear vibrating screens, ultrasonic vibrating screens, test sieve shakers, belt conveyors, screw conveyors, vacuum conveyors, dust-free feeding stations, and other related equipment.
.

Thick Liquid Vibrating Screen Filter For Ceramic Slurry Liquid / Solid SeparationFAQ

Q:How to choose the suitable machine?
A:The proper selection of the vibrating screen depends on the material, number of layers, every mesh size, capacity, material moisture, viscous and corrosive etc: Name and feature of the raw material? Aim of using: get rid of impurity, filtration, grading Handling capacity: kg /h, L/h The raw material size: (mesh or mm) How many final materials you want, or how many layer you need? Local power supply (voltage and frequency)
Note: You had better send us the relevant pictures about the details.
