Liquid Hydrate Filter Screening Equipment High Frequency Circular Vibrating Sieve
Liquid Hydrate Filter Screening Equipment High Frequency Circular Vibrating Sieve
Liquid Hydrate Filter Screening Equipment High Frequency Circular Vibrating Sieve
Liquid Hydrate Filter Screening Equipment High Frequency Circular Vibrating Sieve
Liquid Hydrate Filter Screening Equipment High Frequency Circular Vibrating Sieve
Liquid Hydrate Filter Screening Equipment High Frequency Circular Vibrating Sieve
Liquid Hydrate Filter Screening Equipment High Frequency Circular Vibrating Sieve
Liquid Hydrate Filter Screening Equipment High Frequency Circular Vibrating Sieve
Liquid Hydrate Filter Screening Equipment High Frequency Circular Vibrating Sieve
Liquid Hydrate Filter Screening Equipment High Frequency Circular Vibrating Sieve
Liquid Hydrate Filter Screening Equipment High Frequency Circular Vibrating Sieve
Liquid Hydrate Filter Screening Equipment High Frequency Circular Vibrating Sieve
Specifications
Brand Name :
DY
Model Number :
450
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
1200/unit
Payment Terms :
MoneyGram,Western Union,D/P,T/T,D/A,L/C
Delivery Time :
7-15 work days
Description

Liquid Filter Hydrate Screening Equipment High-frequency Sieve

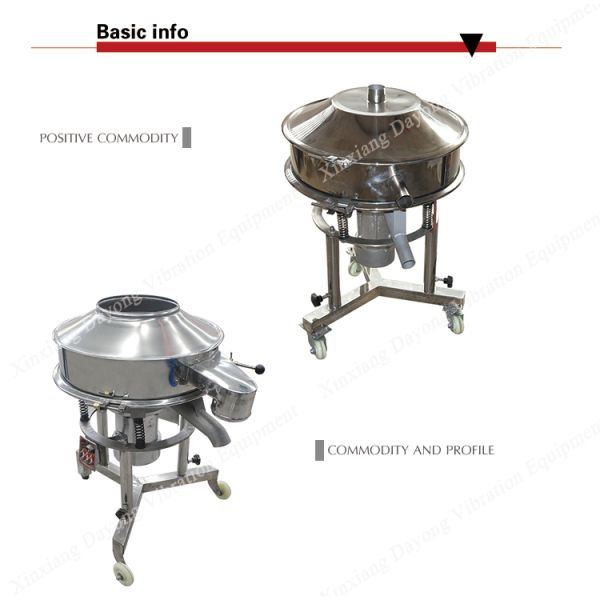

Product Display

Liquid Hydrate Filter Screening Equipment High Frequency Circular Vibrating Sieve

Product Introduction

High frequency vibrating screen with high frequency, on the one hand, destroy the tension on the surface of the pulp and fine grained material in the high speed on the surface of the screen, on the other hand ,increased the less than the material in contact with the mesh of separation size of probability.This results in better separation conditions, which makes the materials smaller than the separation grain size, especially the material and pulp that are larger than the material, which are screened by the sieve holes.High frequency vibrating screen is reliable in structure, strong exciting force, high screening efficiency, vibration noise is small, strong and durable, easy maintenance, use safety characteristics of high frequency vibrating screen is widely used in mining, building materials, transportation, energy, chemical and other industries products classification.

Product Parameters
Model
Power of Motor
Valid Diameter of screen
Material
Volume
weight
DYG-600
0.35KW
550mm
100% SS304
610mm*610mm*660mm
65kg
DYG-800
0.55KW
760mm
100% SS304
810mm*810mm*760mm
78kg
DYG-1000
0.75KW
930mm
100% SS304
1010mm*1010mm*860mm
130kg
DYG-1200
1.5KW
1130mm
100% SS304
1210mm*1210mm*960mm
170kg

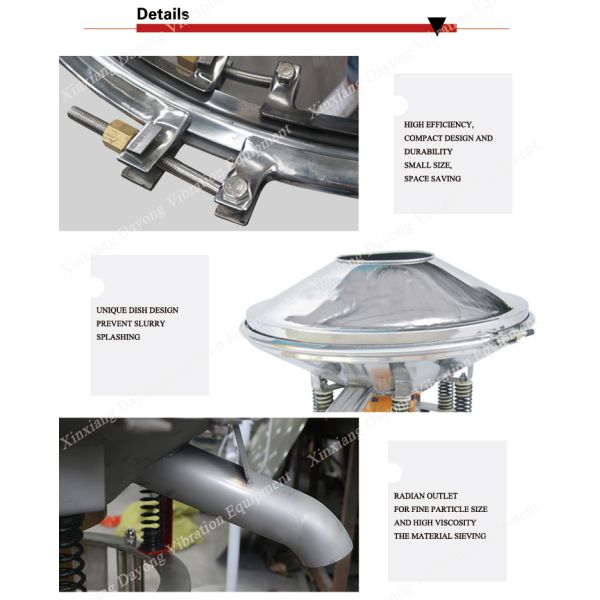

Product Description
Advantages
1.No rotating parts, no need to add lubricating oil. 2. Simple structure, convenient maintenance,durable,low fault rate. 3.Use vibrator resonance principle, the driving power is small, low noise. 4.After the start of the vibrator, the instantaneous amplitude can reach the stable value. 5.The screen of the excitation or amplitude can be adjusted. 6.At the same time, the screen body vibration, screen mesh also produce relative vibration between the screen, the screen is not easy to plug the gap between the screen.
Liquid Hydrate Filter Screening Equipment High Frequency Circular Vibrating Sieve
Using Scope
Chemical industry, food, medicine, metallurgy, non-metallic mineral resources, abrasives, ceramics, rubber, plastics, building materials, paint, paint, paper making, petrochemical, environmental protection, urea, such as the brewing industry of dry material size grading, excellent application of slurry filtration, etc.
Liquid Hydrate Filter Screening Equipment High Frequency Circular Vibrating Sieve
Company Profile
Liquid Hydrate Filter Screening Equipment High Frequency Circular Vibrating Sieve
Liquid Hydrate Filter Screening Equipment High Frequency Circular Vibrating Sieve
Xinxiang Dayong Vibration Equipment Co., Ltd. CE certified enterprise, specializes in manufacturing series of vibrating screen and vibrating machine and we could design, develop and produce by ourselves. At present, the main range of products include kinds of series of vibrating screens, vibrating separator and filter, ultrasonic vibrating screens, sifting machines, filtering machines, linear vibrating screens, testing screens, vibrating conveyors, etc. These products are highly suitable to the purpose of screening grains and powders and filtering serous fluids. Other uses include the sifting and sorting dry powders, liquids and solids in industries such as Chemicals, Food processing, Pharmaceuticals, Metallurgy, pigments, Ceramics and Abrasives, etc. Our products have seven national patents. CE and ISO certification. The quality and technology of our products have reached the international advanced standard.
Product packaging
Liquid Hydrate Filter Screening Equipment High Frequency Circular Vibrating Sieve
FAQ
1).MOQ require?
Our moq is 1 set.(If you need the spare parts,it is also ok).
2).Payment method?
Usually,we accept T/T,Western Union and others, we can't accept D/P,D/A
3).How to guarantee the quality?
If any machine quality problems, we accept return cargos. Our warrantity is 18 months, promise your 0 risks purchasing
