380V 415V 450V Clay Powder Vibrating Screen Sand Sieving Machine
380V 415V 450V Clay Powder Vibrating Screen Sand Sieving Machine
380V 415V 450V Clay Powder Vibrating Screen Sand Sieving Machine
380V 415V 450V Clay Powder Vibrating Screen Sand Sieving Machine
380V 415V 450V Clay Powder Vibrating Screen Sand Sieving Machine
380V 415V 450V Clay Powder Vibrating Screen Sand Sieving Machine
380V 415V 450V Clay Powder Vibrating Screen Sand Sieving Machine
380V 415V 450V Clay Powder Vibrating Screen Sand Sieving Machine
Specifications
Brand Name :
DY
Model Number :
DZSF
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD1900-3500
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
Customize
Delivery Time :
7-15 work days
Packaging Details :
Wooden Package
Type :
LINEAR
Voltage :
380V/415V/450V
Core Components :
Horizontal Vibrating Motor
Weight :
300 KG
Warranty :
1.5 Years
Application :
Chemical/Food/Sand
Material :
Carbon Steel/ Stainless Steel 304
Usage :
Separation Screening
Function :
Screening\separation\sorting\sieving
Cleaning system :
Bouncing Ball
Installation :
Under Technical Guidance
Mesh size :
2-220 Mesh
Description

Sand clay powder coating vibrating screen sieving machine

Product Display

380V 415V 450V Clay Powder Vibrating Screen Sand Sieving Machine

DZSF series linear vibrating screen uses the vibration motor installed at the bottom of it as vibration source. When working, the two motors spin in opposite directions, the eccentric blocks at the ends of motor produce vibration force. Under the action of vibration force, the screen box which supported on the four compression spring produces a continuous linear vibration. In the process of the movement, the materials do the projectile motion and keep going in a straight line at the same time. The materials enter into the feed port, go through the multi-layer screen, then different size of materials was separated out from different outlet.

Product Parameters

Model
W*L (mm)
Power (Kw)
Screen surface angle
Layer
DZSF-520
500*2000
2*(0.4 - 0.75)
0-7 degree
1-5 layers
DZSF-1020
1000*2000
DZSF-1030
1000*3000
2*(1.1 - 1.5)
DZSF-1250
1200*5000
2*(1.1 - 2.2)
DZSF-1560
1500*6000
2*(2.2 - 3.7)
DZSF-1845
1800*4500
DZSF-2260
2200*6000

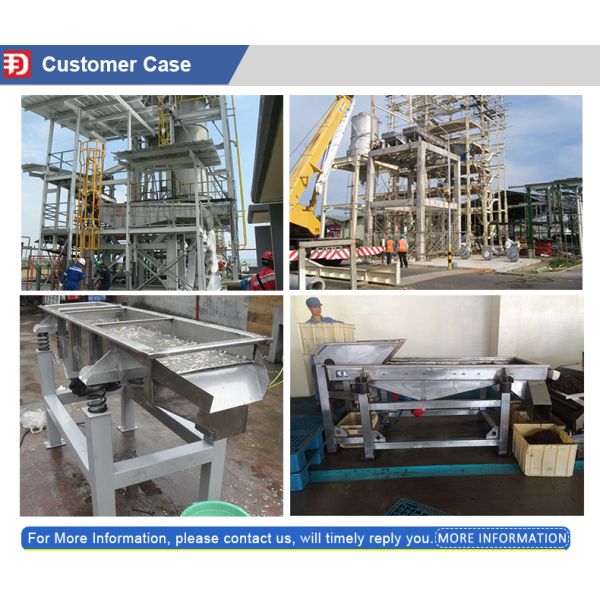

Customer Case

380V 415V 450V Clay Powder Vibrating Screen Sand Sieving Machine

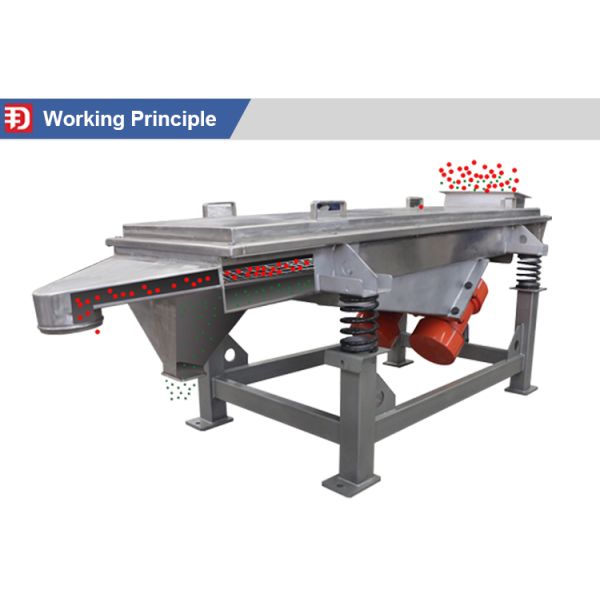

Working Principle

The material enters the feed port of the sieve machine uniformly from the feeder, and several grading products are produced through the multi-layer screens. Different grading materials are respectively discharged from the respective outlets.
380V 415V 450V Clay Powder Vibrating Screen Sand Sieving Machine

Features

1. Whole sealing and no dust emission.
2. Low energy consumption,low noise and high efficiency.
3. High screening accuracy, large processing capacity and simple structure.
4. Firm and reliable, long service life.
5. It can be equipped with one or more layers of screen mesh.
6. The power layout can be adjusted to suit the production conditions according to the customer's needs.
380V 415V 450V Clay Powder Vibrating Screen Sand Sieving Machine

Application

Linear vibrating screen has a unique effect on powdery, granular materials selection and classification. Widely used in chemical, pharmaceutical, food, metal, metallurgy, mining and other industries. Chemical industry: fertilizers, urea, petroleum coke, resins, paints, cosmetics, paints and so on. The pharmaceutical industry: industrial chemicals, the powder particles pills, pellets, etc; Food industry: soy, chestnut, small steamed bread, spices, sugar, starch, salt, rice flour, milk powder, soy milk, egg, soy sauce, fruit juice. Metals, mining metallurgy: aluminum powder, lead powder, copper powder, ore alloy powder, powder electrodes. Other industries: plastics, abrasives, activated carbon, carbon, building materials industry.
380V 415V 450V Clay Powder Vibrating Screen Sand Sieving Machine
Payment & Shippment
380V 415V 450V Clay Powder Vibrating Screen Sand Sieving Machine
380V 415V 450V Clay Powder Vibrating Screen Sand Sieving Machine
Company Introduction
380V 415V 450V Clay Powder Vibrating Screen Sand Sieving Machine
380V 415V 450V Clay Powder Vibrating Screen Sand Sieving MachineWith more than 10 years of development and technology precipitation, Our company, Xinxiang Dayong Vibration Equipment Co.,Ltd, has become one professional international manufacturer for sieving machines, vibro sifter machines, ultrasonic sieving clearing systems, separators, vibrating screen machines, conveying equipment, filtration equipment, crushing equipment and so on.
As one of the largest OEM factories in China, each year we supply around 5000 sets machines to serve more than 150 distributors, manufacturers and traders, providing all kinds of reliable customized equipment to help our clients build their brands. Different from those small factories, which only produce several parts for one machine, our factory have one complete modernized production line of sieving machines, producing all the parts of products. By this way, we can monitor every aspect of production and do the customized goods for different industries. Our engineers can provide the most suitable sieving solutions to meet the needs of different industries, from fine materials, such as food, chemical, medicine to rough materials, such as mineral,fertilizer, garbage.
380V 415V 450V Clay Powder Vibrating Screen Sand Sieving Machine
380V 415V 450V Clay Powder Vibrating Screen Sand Sieving Machine
380V 415V 450V Clay Powder Vibrating Screen Sand Sieving Machine
